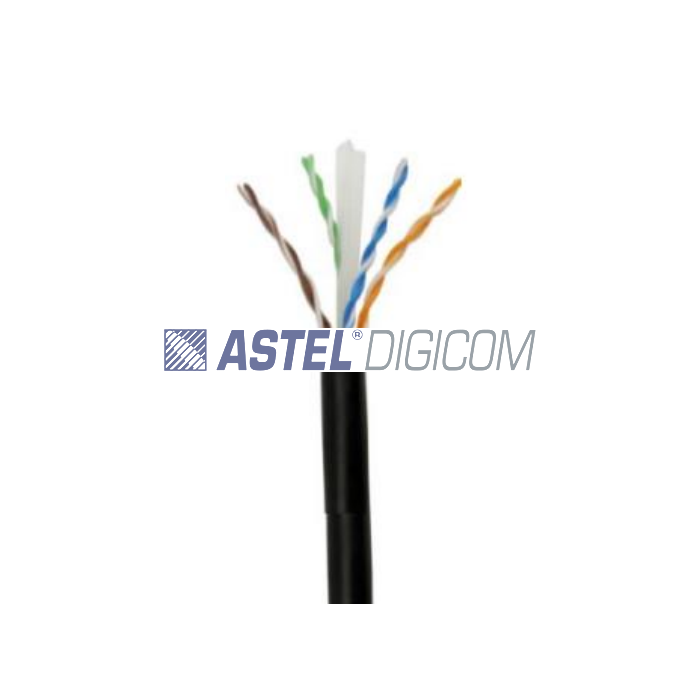

UTP CAT6 24 AWG PE Jacket for Outdoor CCTV and IP Cameras

AED 325.00

In stock

Product Model

UTPC624AWGBCPE300MRB

1) Astel Hi Quality UTP CAT6 Cables are manufactured from Pure Copper Conductors and HDPE. 4 Pairs are perfectly balanced providing low attenuation, high immunity from cross talk and noise shielding.

Details

1) Astel Hi Quality UTP CAT6 Cables are manufactured from Pure Copper Conductors and HDPE. 4 Pairs are perfectly balanced providing low attenuation, high immunity from cross talk and noise shielding.

Technical specification

More Information

Technical specification

Main Applications

1) 100Base-TX.

2) 100Base-T.

3) 100VG-AnyLAN.

4) 1000Base-T (Gigabit Ethernet).

5) 1000Base-TX.

6) ATM.

Specifications@20°C
ModelProduct	Unit	UTPC624AWGBCPE
Construction:
Conductor	Conductor	Solid Bare Copper
Conductor OD	mm	0.495 ± 0.005
Conductor AWG		24 AWG
Insulation		HDPE
Insulation Dia	mm	0.87±0.05
Core Colours		1P-White-Blue/Blue 2P-White-Orange/Orange 3P-White-Green/Green 4P-White-Brown/Brown
Individual Pair Shielding		NO
Plastic Separator		Yes (ROHS Compliant)
Drain Wire		NO
Outer Shielding		NIL
Outer Shielding Coverage		NIL
Jacket Material		PE
Jacket Thickness		0.75±0.05
Outer Dia		5.2±0.3
Rip Cord		NO
Color		Black
Jacket Tensile Strength	Mpa	13.5
Jacket Elongation	%	150
Bending Radius	XD	8 x OD
Packaging
Packing		300M Reel
QTY per Box		1
Size	cms	33x33x26 cms
Weight	kgs	13kgs
Packing 2		NA
QTY per Package		NA
Size / Weight		NA
ElectricalandMechanical Parameters:
Impedance	Ohms/100m	100 ± 15
Frequency Range	MHz	1-300 MHz
DC Resistance for Conductor	Ohms	9.50
DC Resistance Unbalance	%	2.50%
Capacitance Unbalance to ground	pf /100m	330
Velocity of propagation	%	70%
Delay Skew	ns/100m	≤45ns
Dielectric Strength	KV/min	1.0
Operating Temp Range	°C	-20 °C to +65 °C

Technical Performance (100m):
Frequency MHz	RL (≥dB)	ATT (≥dB)	NEXT (≥dB)	DELAY (≤ns)	PSNEXT (≥dB)	ELFEXT (≥dB)	PSELFEXT (≥dB)
1	20.0	2.0	74.3	570.0	72.3	67.8	64.8
4	23.0	3.8	65.3	552.0	63.3	55.8	52.8
8	24.5	5.3	60.8	546.73	58.8	49.7	46.9
10	25.0	6.0	59.3	545.38	57.3	47.8	44.8
16	25.0	7.6	56.2	543.0	54.2	43.7	40.7
20	25.0	8.5	54.8	542.05	52.8	41.8	38.8
25	24.3	9.5	53.3	541.2	51.3	39.8	36.8
31.25	23.6	10.7	51.9	540.44	49.9	37.9	34.9
62.5	21.5	15.4	47.4	538.55	45.4	31.8	28.9
100	20.1	19.8	44.3	537.6	42.3	27.8	24.8
200	18.0	29.0	38.3	536.54	37.8	21.8	18.8
250	17.3	32.8	33.8	536.27	36.3	19.8	16.8
