main product photo

UTP CAT6 24 AWG PVC Jacket for CCTV and IP Camera Application

AED 310.00
In stock
Product Model
UTPC624AWGBCPVC300MBG
    • 1) Astel Hi Quality UTP CAT6 Cables are manufactured from Pure Copper Conductors and HDPE. 4 Pairs are perfectly balanced providing low attenuation, high immunity from cross talk and noise shielding.

    1) Astel Hi Quality UTP CAT6 Cables are manufactured from Pure Copper Conductors and HDPE. 4 Pairs are perfectly balanced providing low attenuation, high immunity from cross talk and noise shielding.

    More Information
    Technical specification
    Main Applications

    1) 100Base-TX.
    2) 100Base-T.
    3) 100VG-AnyLAN.
    4) 1000Base-T (Gigabit Ethernet).
    5) 1000Base-TX.
    6) ATM.

    Specifications@20°C
    ModelProduct Unit UTPC624AWGBCPVC

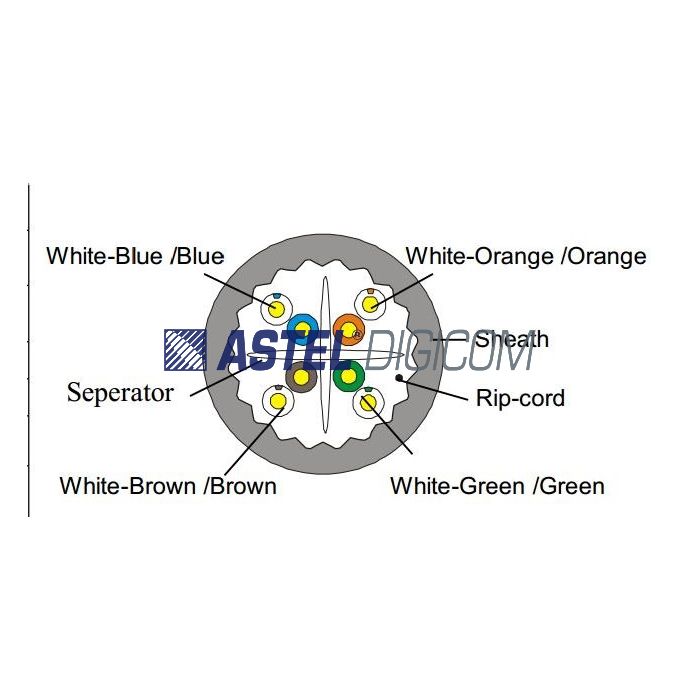

    Construction:
    Conductor Conductor Solid Bare Copper
    Conductor OD mm 0.495 ± 0.005
    Conductor AWG   24 AWG
    Insulation   HDPE
    Insulation Dia mm 0.89±0.05
    Core Colours
    1P-White-Blue/Blue
    2P-White-Orange/Orange
    3P-White-Green/Green
    4P-White-Brown/Brown
    Individual Pair Shielding   NO
    Plastic Separator   Yes (ROHS Compliant)
    Drain Wire   NO
    Outer Shielding   NIL
    Outer Shielding Coverage   NIL
    Jacket Material   PVC
    Jacket Thickness   0.55±0.05
    Outer Dia   5.2±0.3
    Rip Cord   NO
    Color   Grey (Can be provided as per customized)
    Jacket Tensile Strength Mpa 13.5
    Jacket Elongation % 150
    Bending Radius XD 8 x OD
    Packaging
    Packing   300M Box
    QTY per Box   2
    Size cms 42x42x21 cms
    Weight kgs 26kgs / 2 pcs per box
    Packing 2   NA
    QTY per Package   NA
    Size / Weight   NA
    ElectricalandMechanical
    Parameters:
    Impedance Ohms/100m 100 ± 15
    Frequency Range MHz 1-300 MHz
    DC Resistance for Conductor Ohms 9.50
    DC Resistance Unbalance % 2.50%
    Capacitance Unbalance to ground pf /100m 330
    Velocity of propagation % 70%
    Delay Skew ns/100m ≤45ns
    Dielectric Strength KV/min 1.0
    Operating Temp Range °C -20 °C to +65 °C

    Technical Performance (100m):
    Frequency
    MHz    		 RL
    (≥dB)    		 ATT
    (≥dB)    		 NEXT
    (≥dB)    		 DELAY
    (≤ns)    		 PSNEXT
    (≥dB)    		 ELFEXT
    (≥dB)    		 PSELFEXT
    (≥dB)
    1 20.0 2.0 74.3 570.0 72.3 67.8 64.8
    4 23.0 3.8 65.3 552.0 63.3 55.8 52.8
    8 24.5 5.3 60.8 546.73 58.8 49.7 46.9
    10 25.0 6.0 59.3 545.38 57.3 47.8 44.8
    16 25.0 7.6 56.2 543.0 54.2 43.7 40.7
    20 25.0 8.5 54.8 542.05 52.8 41.8 38.8
    25 24.3 9.5 53.3 541.2 51.3 39.8 36.8
    31.25 23.6 10.7 51.9 540.44 49.9 37.9 34.9
    62.5 21.5 15.4 47.4 538.55 45.4 31.8 28.9
    100 20.1 19.8 44.3 537.6 42.3 27.8 24.8
    200 18.0 29.0 38.3 536.54 37.8 21.8 18.8
    250 17.3 32.8 33.8 536.27 36.3 19.8 16.8



    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
