WIDE BAND AMPLIFIER

AED200.00
In stock
Product Model
WBA-PP-862
    • Astel Digicom wideband amplifier features full Bandwidth 47-862 MHz amplification by means of RF push pull technology. The amplifier provides 34 dB gain, separate gain and equalizer controls, high and stable output.

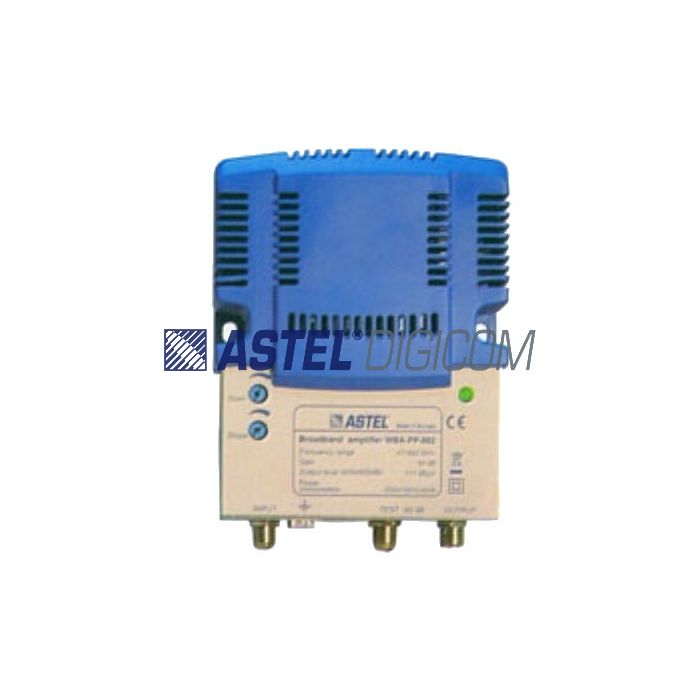

    main product photo
    ASTEL Digicom wideband amplifier features full band 47-862 MHz amplification by means of RF push pull technology. The amplifier provides 34 dB gain, separate gain and stabilizer controls, high and stable output.
    More Information
    Technical specification

    Main Features:

    1. For use in broadband networks upto 862 MHz
    2. High and Stable output.
    3. Gain and equalizer controls
    4. Low noise figure
    5. F type connectors
    6. Return path optional (active and passive)
    Parameter
    WBA-862-34
    WBA-862-34-RP30
    WBA-862-34-RA65
    Frequency Range
    47-862 MHz
    47-862 MHz
    87-862 MHz
    Gain
    34 dB
    34 dB
    34 dB
    Noise Figure
    ≤ 6 dB
    ≤ 6 dB
    ≤ 6 dB
    Frequency Response
    ± 0.75 dB
    ± 0.75 dB
    ± 0.75 dB
    Gain Control
    0 to -20 dB
    0 to -20 dB
    0 to -20 dB
    Slope Control
    18 dB
    18 dB
    18 dB
    Maximum Output Level
    117 dBuV
    117 dBuV
    117 dBuV
    Power Consumption
    6 VA, 230 V/ 50 Hz
    6 VA, 230 V/ 50 Hz
    6 VA, 230 V/ 50 Hz
    Return Path



    Frequency range
    NA
    5-30 MHz
    5-65 MHz
    Gain
    NA
    Passive Return Path
    24 dB
    Gain Adjustment
    NA
    NA
    18 dB
    Return Loss
    NA
    ≥14dB
    ≥14dB
    Output Level
    NA
    NA
    114 dBuV
    Dimensions
    107 X 148 X 53 mm, 0.6 Kg
    107 X 148 X 53 mm, 0.6 Kg
    107 X 148 X 53 mm, 0.6 Kg
    Output Ports
    F type, Input and Output,
    Test point
    F type, Input and Output,
    Test point
    F type, Input and Output,
    Test point


    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
