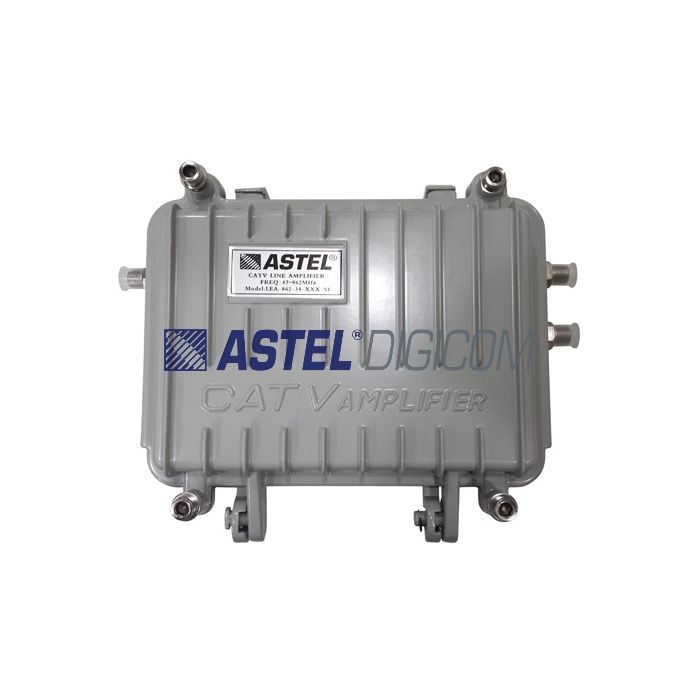

ASTEL CATV Line Extender Amplifier

AED 125.00

In stock

Product Model

LEA-862-34

ASTEL CATV Line Extender Amplifier is designed to extend the reach of branch lines in cable television and broadband distribution networks. Featuring advanced hybrid IC module technology, adjustable gain and slope controls, and dual RF outputs, it ensures stable signal transmission across extended network distances. The compact die-cast aluminum housing provides excellent heat dissipation, waterproof protection, and long-term reliability for indoor and outdoor CATV installations.

Details

Key Features:

1) Designed for CATV branch line signal extension

2) Hybrid IC module technology for stable performance

3) Adjustable gain control

4) Adjustable slope control

5) Dual RF output configuration

6) Waterproof aluminum alloy housing

7) Dustproof construction for harsh environments

8) Fast heat dissipation through metal enclosure

9) Over-current protection

10) Lightning protection for enhanced reliability

11) Compact die-cast aluminum design

12) Output mode with 1-way coupler test port or 2-way splitter

13) Suitable for CATV and broadband distribution networks

14) Reliable long-distance RF signal amplification

15) Ideal for residential, commercial, and network infrastructure applications

Note: If you use 2 way splitter, output in each port would be 3.5 dB Less than one way coupler mode.

Technical specification

More Information

Technical specification

Parameter	LEA-862-34-220V	LEA-862-34-60V
Frequency Range	47-862 MHz	47-862 MHz
Gain	34 dB	34 dB
Gain Flatness	± 0.75 dB	± 0.75 dB
Return Loss	≥ 16 dB @ 47-550 MHz ≥ 14 dB @ 550- 862 MHz	≥ 16 dB @ 47-550 MHz ≥ 14 dB @ 550- 862 MHz
Noise Figure	< 8 dB	< 8 dB
Input output Impedance	75 Ω	75 Ω
Gain Control	0~20dB adjustable	0~20dB adjustable
Slope Control	0~20dB adjustable	0~20dB adjustable
Maximum Output Level	110 dBuV	110 dBuV
Power Consumption	6 VA, 230 V/ 50 Hz	6 VA, 230 V/ 50 Hz
Dimensions	107 X 148 X 53 mm, 0.6 Kg	107 X 148 X 53 mm, 0.6 Kg
Output Ports	F type, Input and Output, Test point	F type, Input and Output, Test point

Disclaimer

1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
