TRUNK AMPLIFIER

AED175.00
In stock
Product Model
TAC-862-34
    • ASTEL cable TV amplifier are designed with high quality components like Hybrid IC Module, SMD chip components, temperature gain control circuit, high efficiency R-type transformer, Water-proof Aluminium housing, advanced Glass Epoxy double-side circuit board, etc. This amplifier features high CTB, CSO to deliver high quality signals across miles of trunk lines. The amplifier is a cost-effective and highly steady amplifier and could be used in existing CATV network or new RF CATV network.

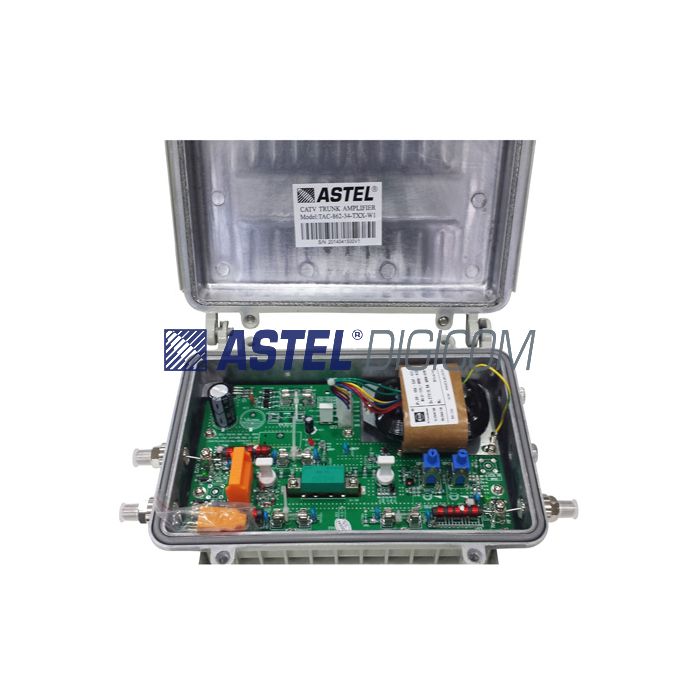

    main product photo
    ASTEL cable TV amplifier are designed with high quality components like Hybrid IC Module, SMD chip components, temperature gain control circuit, high efficiency R-type transformer, Water-proof Aluminium housing, advanced Glass Epoxy double-side circuit board, etc. This amplifier features high CTB, CSO to deliver high quality signals across miles of trunk lines. The amplifier is a cost-effective and highly steady amplifier and could be used in existing CATV network or new RF CATV network.
    More Information
    Technical specification

    Main Features

    1) High Price Performance Ratio.
    2) Aluminum Alloy housing, waterproof, and dustproof and anti Electromagnetic interference resistant.
    3) Hybrid Module Design.
    4) Adjustable Gain and Slope.
    5) Metal housing helps in faster heat dissipation.
    6) Output mode 1 way with coupler (test) or 2 way splitter.


    Parameter TAC-862-34-220V TAC-862-34-60V
    Frequency Range 47-862 MHz 47-862 MHz
    Gain 32 dB  32 dB
    Noise Figure ≤ 8 dB  ≤ 8 dB
    Frequency Response ± 0.75 dB  ± 0.75 dB
    Gain Control 0 to -20 dB  0 to -20 dB
    Slope Control 0 to -20 dB  0 to -20 dB
    In band Flatness ± 0.75 dB  ± 0.75 dB
    CTB ≥ 60 dB  ≥ 60 dB
    CSO ≥ 60 dB  ≥ 60 dB
    Maximum Output Level 110 dBuV  110 dBuV
    Return Loss ≥16 dB @47-550 MHz
    ≥14 dB @550-862 MHz    		  ≥16 dB @47-550 MHz
    ≥14 dB @550-862 MHz
    In/ Out Impedance 75 ohms  75 ohms
    Power Consumption 10 VA, 230 V/ 50 Hz  10 VA, 230 V/ 50 Hz
    Dimensions 230 X 140 X 60 mm, 1.5 Kg  230 X 140 X 60 mm, 1.5 Kg
    Output Ports F type, Input and Output, Test point  F type, Input and Output, Test point





    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
