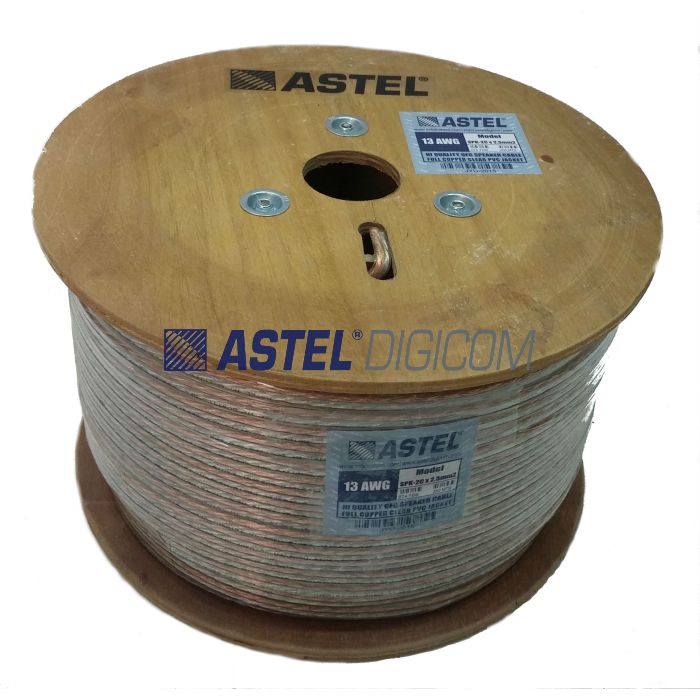

Astel Gold/Silver BC/TC 2 Core Parallel Flexible speaker cable is made from Oxygen Free Copper (OFC) and Virgin high quality PVC. These speaker cables are suitable for Indoor and outdoor audio applications.
Astel Gold/Silver BC/TC 2 Core Parallel Flexible speaker cable is made from Oxygen Free Copper (OFC) and Virgin high quality PVC. These speaker cables are suitable for Indoor and outdoor audio applications.
Main Applications1) Indoor speaker systems 2) Shopping Malls 3) Conference Hall 4) School auditoriums 5) Wall Mount Speakers
Model Product
2Cx0.50mm2
2Cx1.50mm2
2Cx2.50mm2
2Cx3.00mm2
Conductor1&2
Bare Copper Stranded & Tinned Copper
Bare Copper Stranded & Tinned Copper
Bare Copper Stranded & Tinned Copper
Bare Copper Stranded & Tinned Copper
Conductor Structure
3 x 50 x 0.08
3x64x0.10
3x54x0.14
3x200x0.08
Conductor Cross Section Area
0.50 mm2
1.50 mm2
2.50 mm2
3.00 mm2
Conductor AWG
20 AWG
15 AWG
13 AWG
12 AWG
Insulation thickness
1.10 mm
1.20 mm
1.30 mm
1.40 mm
Jacket Material
PVC
PVC
PVC
PVC
Outer Diameter
3.30 mm
4.40 mm
5.10 mm
5.50 mm
Jacket Thickness
1.10 mm
1.20 mm
1.30 mm
1.40 mm
Overall dia (mm)
3.30 x 6.60 mm
4.40x8.80 mm
5.10x10.20 mm
5.50x11.0 mm
Electric Specifications
Dielectric Strength
2000V/5m
2000V/5m
2000V/5m
2000V/5m
Nominal DCR for BC (Ohms/Km)
36.2
11.80
7.10
6.14
Nominal DCR for TC (Ohms/Km)
36.5
11.95
7.15
6.21
Capacitance (pf/M)
48.38
56.56
64.68
Tensile Strenght
>8 Mpa
>8 Mpa
>8 Mpa
>8 Mpa
Elongation (%)
>200 %
>200 %
>200 %
>200 %
Packing
Length each coil
100Y (91.2mts)
100Y (91.2mts)
100Y (91.2mts)
100Y (91.2mts)
Weight each coil 100Y
2.90 Kg
5.95 Kg
8.65 kg
9.80 kg
Number of coils in 1 carton
8
4
2
1
Weight of each carton
23.2 kgs
23.8 kgs
17.3 kgs
10.0 kgs
Size of each carton (cm)
33x33x28
30x30x22
48x24x14
NA
Weight each Reel 250 mts
NA
17.2
22.5
NA
Size each Reel 250 mts (cm)
NA
30x30x22
30x30x25
NA
Notes: * All measurements adjusted for ambient temp of 20 degC. * DC resistance changes at the rate of 0.393% / Deg C. *Sequential meter marking on all cables. *Higher core sizes cables also available. Please see our series SPO-2C-XX (Speaker Outdoor OFC Cables) *Shielded Speaker Cables also available, please see ASTEL Series SPS-2C-XX *NA- Not available
