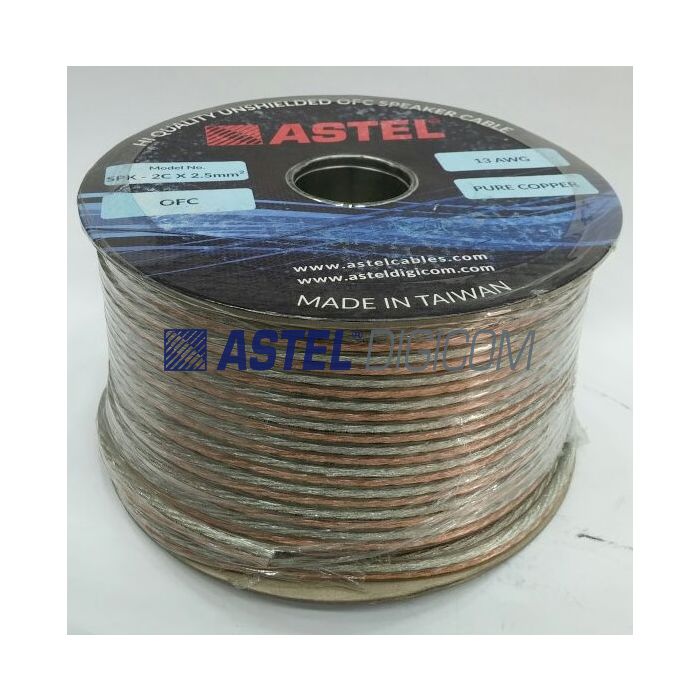

Unshielded OFC Speaker Cable BC/TC Transparent Jacket

AED0.00
In stock
Product Model
SPK-2C-XX
Astel Gold/Silver BC/TC 2 Core Parallel Flexible speaker cable is made from Oxygen Free Copper (OFC) and Virgin high quality PVC. These speaker cables are suitable for Indoor and outdoor audio applications.
Astel Gold/Silver BC/TC 2 Core Parallel Flexible speaker cable is made from Oxygen Free Copper (OFC) and Virgin high quality PVC. These speaker cables are suitable for Indoor and outdoor audio applications.
More Information
Technical specification

Main Application

1) Indoor speaker system
2) Shopping Malls
3) Conference Hall
4) School auditoriums
5) Wall Mount Speakers

Model Product 2Cx0.50mm2 2Cx1.50mm2 2Cx2.50mm2 2Cx3.00mm2
Conductor 1&2 Bare Copper Stranded & Tinned Copper Bare Copper Stranded & Tinned Copper Bare Copper Stranded & Tinned Copper Bare Copper Stranded & Tinned Copper
Conductor Structure  3 x 50 x 0.08 3x64x0.10 3x54x0.14 3x200x0.08
Conductor Cross Section Area 0.50 mm2 1.50 mm2 2.50 mm2 3.00 mm2
Conductor AWG 20 AWG 15 AWG 13 AWG 12 AWG
Insulationthickness 1.10 mm 1.20 mm 1.30 mm 1.40 mm
Jacket Material PVC PVC PVC PVC
Outer Diameter 3.30 mm 4.40 mm 5.10 mm 5.50 mm
Jacket Thickness 1.10 mm 1.20 mm 1.30 mm 1.40 mm
Overall dia (mm) 3.30 x 6.60 mm 4.40x8.80 mm 5.10x10.20 mm 5.50x11.0 mm
ElectricSpecifications
Dielectric Strength 2000V/5m 2000V/5m 2000V/5m 2000V/5m
Nominal DCRfor BC (Ohms/Km) 36.2 11.8 7.1 6.14
Nominal DCRfor TC (Ohms/Km) 36.5 11.95 7.15 6.21
Capacitance (pf/M) 48.38 56.56 64.68
Tensile Strenght >8 Mpa >8 Mpa >8 Mpa >8 Mpa
Elongation (%)  >200 % >200 % >200 % >200 %
Packing
Length each coil 100Y (91.2mts) 100Y (91.2mts) 100Y (91.2mts) 100Y (91.2mts)
Weight eachcoil 100Y 2.90 Kg 5.95 Kg 8.65 kg 9.80 kg
Number of coils in 1 carton 8 4 2 1
Weight of eachcarton 23.2 kgs 23.8 kgs 17.3 kgs 10.0 kgs
Size of eachcarton (cm) 33x33x28 30x30x22 48x24x14 NA
Weight each
Reel 250 mts
NA 17.20 22.50 NA
Size each Reel 250 mts (cm) NA 30x30x22 30x30x25 NA



Notes:
* All measurements adjusted for ambient temp of 20 degC.
* DC resistance changes at the rate of 0.393% / Deg C.
*Sequential meter marking on all cables.
*Higher core sizes cables also available. Please see our series SPO-2C-XX (Speaker Outdoor OFC Cables)
*Shielded Speaker Cables also available, please see ASTEL Series SPS-2C-XX
*NA- Not available
