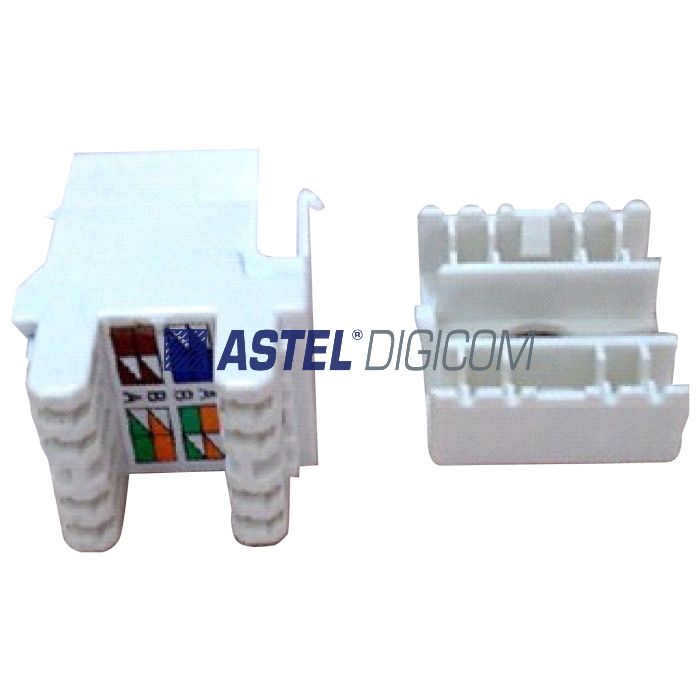

UNSHIELDED KEYSTONE JACK CAT6
AED 4.00
In stock
Product Model
NETKSJUC6180
Astel Digicom CAT6 KSJ has been designed for high speed voice and data applications and exceeds all
ANSI/TIA/EIA 568B2 and ISO/IEC 11801 standards requirements. Astel KSJ-CAT6-XX can be used with
Astel CAT6 cable and accessories to construct a link or channel with category 6 performance
Astel Digicom CAT6 KSJ has been designed for high speed voice and data applications and exceeds all ANSI/TIA/EIA 568B2 and ISO/IEC 11801 standards requirements. Astel KSJ-CAT6-XX can be used with Astel CAT6 cable and accessories to construct a link or channel with category 6 performance.
| Technical specification | Category 6 keystone jack is designed and manufactured to comply with the requirements of Category 6/Class E as defined in ISO 11801 2nd edition, and TIA/EIA 568 B.2 1. A range of performance characteristics are tested up to 250Mhz including return loss, attenuation, and near end cross talk (NEXT) and far end cross talk (FEXT). Both worst case and power sum test methods are applied. The keystone jack is fully interoperable and backward compatible Main Features 1) Supports Gigabit Ethernet.2) Can be used with LJ6C type Wallplates with suitable adapters3) Category 6 90 and 180 degree keystone jack fits all standard keystone jack openings plates.4) The jack can be terminated using either a Krone or 110 style impact tool and can be configured to suit T568A or T568B wiring.5) The Category 6 jack has been designed for high-speed voice & data applications and exceeds all ANSI/TIA/EIA 568B CAT6 and ISO/ IEC 11801 CAT6 Standards requirements.6) The jack can be used together with Category 6 cable and accessories to construct a link or channel with Category 6 performance.7) Material: PC.8) Contacts: 3um, Gold, Nickel Contacts.9) 8-position unscreened modular connector (RJ45) with 3 microinches of gold over nickel contacts. Applications 1) 1000Base-T Gigabit network2) 100Base-TX Fast Ethernet3) 10 Base-T Ethernet4) 622 Mbps ATM5) 155 Mbps ATM6) ISDN7) FDDI
|
|---|
