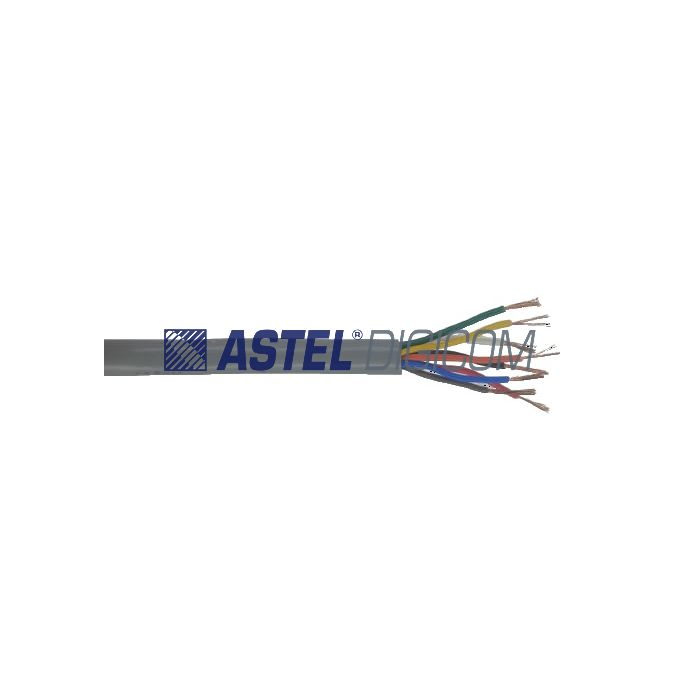

Astel Control and Alarm Cables are manufactured from High Purity Stranded Copper and High Flexible PVC Material. Astel Control and Alarm Cables are manufactured to IEC Standards.
Astel Control and Alarm Cables are manufactured from High Purity Stranded Copper and High Flexible PVC Material. Astel Control and Alarm Cables are manufactured to IEC Standards.
1) Standard Bare Copper Conductor, Compacted and Twisted to make it more homogenous conductor 2) PVC Insulated 3) PVC jacket 4) U/UO Rating: 300/300V 5) Working Temperature: -10 to +70 °C for long duration.
Main Applications
1) Control signal transmission 2) For Meters, Electric Device, Automatic Door Closures 3) Any other kind of automatic low voltage devices 4) Anti Theft Alarm Systems 5) Building Intercom System 6) Compatible to IEC Standard 227 IEC 52 and 227 IEC 53
Model Product
RVV-4CX0.5
RVV-4CX1.0
RVV-4Cx1.5
Conductor
Bare Copper Stranded
Bare Copper Stranded
Bare Copper Stranded
Conductor Structure
28x0.15
32x0.20
48x0.20
Conductor Diameter
1.95mm
2.45 mm
2.95 mm
Conductor Cross Section Area
0.50 mm2
1.00 mm2
1.50mm
Conductor AWG
20 AWG
17 AWG
15 AWG2
Insulation thickness
0.50 mm
0.60 mm
0.70 mm
Twisting on Cores in pairs
NO
NO
NO
Overall Jacket Thickness
0.6mm
0.9mm
0.9mm
Overall Jacket Diameter
6.90±0.50 mm
8.20±0.5 mm
8.50±0.5mm
Dielectric Strength
Elongation (%)
>300
>300
>300
Tensile Strength (MPa)
>10
>10
>10
Operation Temp °C
-20°C to +70°C
-20°C to +70°C
-20°C to +70°C
Electric Specifications
Dielectric Strength
1500V/5m
1500V/5m
1500V/5m
Nominal DC Res @ 20°C (Ohms/km)
39 Ω/Km
19.50 Ω/KM
13.3 Ω/ KM
Insulation Resistance (M Ohms/Km)
150
150
150
Packing
Length each coil
100M
100M
100M
Weight each coil 100Y
4.0 Kg
5.0 kg
6.50 kg
Number of coils in 1 gunny bag pack
5
4
2
Weight of each carton (Kgs)
20.4 kgs
18.20 kgs
12.50 Kgs
Size of each carton (cms)
33x16x41
38x19x27
Notes * DC resistance changes at the rate of 0.393% / Deg C. * Sequential meter marking on all cables. * Higher core sizes cables also available.
Disclaimer
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted)
