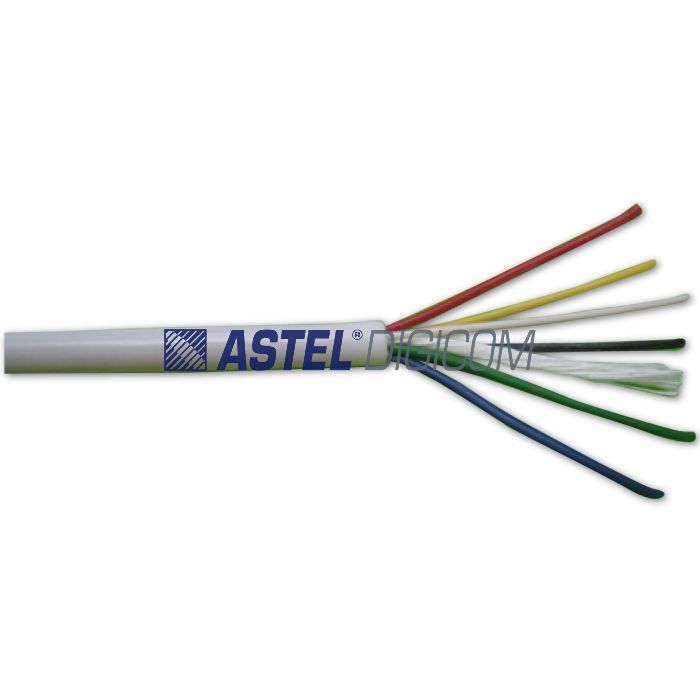

main product photo

Unshielded Control Cable 24 AWG

AED 0.00
In stock
Product Model
UCC-24WG-XX
    • Astel UCC-24AWG-XC Control and Alarm Cable is manufactured from Stranded Bare copper with cross section of 0.22mm2. Insulation and jacket is PVC and meets the requirement of IEC standards.

    Main Feature
    • Alarm Systems
    • Signalling circuits
    • Burglar Alarm Systems
    • PTZ Control systems
    • Detectors and Sensors circuits
    • Infra-Red sensors circuits
    Astel UCC-24AWG-XC Control and Alarm Cable is manufactured from Stranded Bare copper with cross section of 0.22mm2. Insulation and jacket is PVC and meets the requirement of IEC standards.

    Main Features

    1) Alarm Systems
    2) Signalling circuits
    3) Burglar Alarm Systems
    4) PTZ Control systems
    5) Detectors and Sensors circuits
    6) Infra-Red sensors circuits

    More Information
    Technical specification
    Model Product 4 Core 6 Core 8 Core 12 Core
    Conductor Bare Copper
    Stranded       		 Bare Copper
    Stranded    		 Bare Copper
    Stranded    		 Bare Copper
    Stranded
    Conductor
    Structure    		 7x0.20 7x 0.20 7x 0.20 7x 0.20
    Conductor Cross
    Section Area    		 0.22 mm2 0.22 mm2 0.22 mm2 0.22 mm2
    Conductor AWG 24 AWG 24 AWG 24 AWG 24 AWG
    Insulation
    thickness    		 0.40 mm 0.40 mm 0.40 mm 0.40 mm
    Outer Diameter 1.40 mm 1.40 mm 1.40 mm 1.40 mm
    Overall Jacket
    thickness    		 0.68 mm 0.70 mm 0.70 mm 0.70 mm
    Overall Jacket
    Diameter    		 4.80 mm 5.60 mm 6.00 mm 7.20 mm
    Elongation (%) >300 >300 >300 >300
    Tensile Strength
    (MPa)    		 >10 >10 >10 >10
    Operation Temp °C -20 °C to 70 °C -20 °C to 70 °C -20 °C to 70 °C -20 °C to 70 °C
    Electric
    Specifications
    Dielectric Strength 1500V/5m 1500V/5m 1500V/5m 1500V/5m
    Nominal DC Res
    @ 20 deg C    		 82.00 Ohms / Km 82.00 Ohms / Km 82.00 Ohms / Km 82.00 Ohms / Km
    Insulation Resistance
    (M Ohm/Km)    		 150 150 150 150
    Packing
    Length each coil 100Y (91.2mts) 100Y (91.2mts) 100Y (91.2mts) 100Y (91.2mts)
    Weight each coil 100Y 4.0 Kg 5.0 Kg 6.0 Kg 7.5 Kg
    Number of coils in
    1 carton    		 6 4 4 4
    Weight of each carton
    (Kgs)    		 20.4 kgs 18.20 kgs 22.0 kgs 28 kgs
    Size of each carton
    (cms)    		 33x16x41 38x19x27 38x19x32 38x19x36
