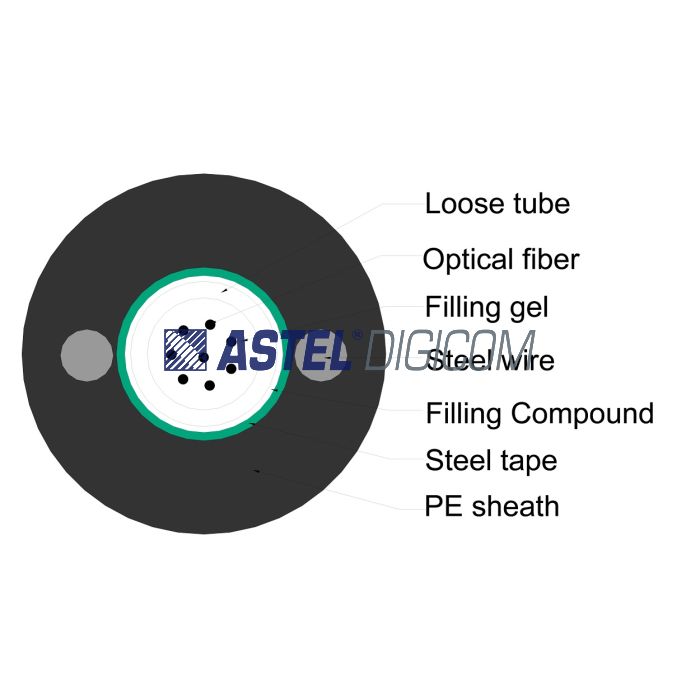

Note 1: Tensile strength and crush resistance shall vary as per the cable diameters, steel rod diameter and thickness of sheath.
Parameter
Unit
9/125SMF-OS2
62.5/125MMF-OM1
50/125MMF-OM2
50/125MMF-OM3
50/125MMF-OM4
Attenuation (See Note 1)
dB/Km
1310nm≤0.351550nm≤0.22
850 nm≤3.01300 nm≤0.8
850 nm≤3.01300 nm≤0.7
850 nm≤2.31300 nm≤0.7
850 nm≤2.31300 nm≤0.7
Dispersion
Ps/nm.km
1285~1330nm≤3.51550nm≤18.0
_
_
_
_
Fiber diameter
um
9/125 um
62.5/125 um
50/125 um
50/125 um
50/125 um
Effective Modal Bandwidth
EMB
850 nm≥200
850 nm≥750
850 nm≥2000
850 nm≥4700
Zero dispersion wavelength
Nm
1300~1324
_
_
_
_
ZTeercoh ndiicsapl erSspioecni fsilcoaptieons
Ps/nm.km
≤0.095
_
_
_
_
Fiber cutoff wavelength
um
≤1260
_
_
_
_
Mode field diameter
um
@@11535100nnmm--190..24±±00..48
_
_
_
_
Mode field concentricity
um
≤0.8
_
_
_
_
Cladding diameter
um
125±1.0
125±2.0
125±1.0
125±1.0
125±1.0
Cladding non-circularity
%
≤1.0
≤2.0
≤1.0
≤1.0
≤1.0
cCoonactienngt/riccliatdy deirnrgor
um
≤12.5
≤12.5
≤12.5
≤12.5
≤12.5
Coating diameter
um
245±10
245±10
245±10
245±10
245±10
Note 1:Fiber attenuation for tight buffer cables is little higher than bare fibers. Note 2:For more detailed specification on Fiber Core Characteristics, please write to us at asteldigicom@eim.ae or visit fiber core manufacturer’s website.
Item
Test Method
Acceptance Requirements
Tension Loading TestIEC 60794-1-2-E1
Sample lenght: No less than 50 metersLoading: 1000NDuration time: 10 minutes
Loss change ≤ 0.1dB @1550nmFiber strain at max. load: max.0.33%No fiber break and no sheath damage.
Crush TestIEC 60794-1-2-E3
Loading: 1000 N/100mmLoad time: ≥5minLoading: 3 points at 3 places
Loss change ≤ 0.1dB @1550 nmNo fiber break and no sheath damage
Loading: 1KG,1m
Radius of hammer head: 12.5mm
Impact Test
Sample length: 5m
Loss change ≤ 0.1 dB @1550 nm
IEC 60794-1-E4
Duration time: 2 sec/cycle
No fiber break and no sheath damage.
No of cycles: 5 cycles
Points of impact: 5 points
Repeated BendingIEC 60794-1-E6
Bending Radius.: 20 x cable diameterLoad: 150NFlexing rate: 3sec/cycleNo. of cycle: 30
Loss change ≤ 0.1 dB @1550 nmNo fiber break and no sheath damage.
Torsion/Twist TestIEC 60794-1-E7
Length: 2mLoad: 150NTwist rate: 1min/cycleTwist angle: ±180°No. of cycle: 10
Loss change ≤ 0.1 dB @1550 nmNo fiber break and no sheath damage.
Water PenetrationIEC 60794-1-2-F5
SHaeimghplt eo lf ewnagtteh:r : 31 mmTime: 24 hour
No water leakage at the end of the sample
Temperature CyclingIEC 60794-1-2-F1
Temperature step:+20oC→-40oC→+60oC→-40oC→+60oC→+20oCNumber of cycle: 2Time each step: 12 hours
Loss change ≤ 0.1 dB @1550 nmNo fiber break and no sheath damage.
Bending TestIEC 60794-1-2-E11B
Bending Dia: 20 x cable diameterNo. of cycle: 5
Loss change ≤ 0.1dB @1550nmNo fiber break and no sheath damage
IDEriCp 6T0e7s9t4-1-2-E14
Length: 0.3mTemperature: +70oCDuration of Test: 24 hrs
No filling compound shall drip from tubes
