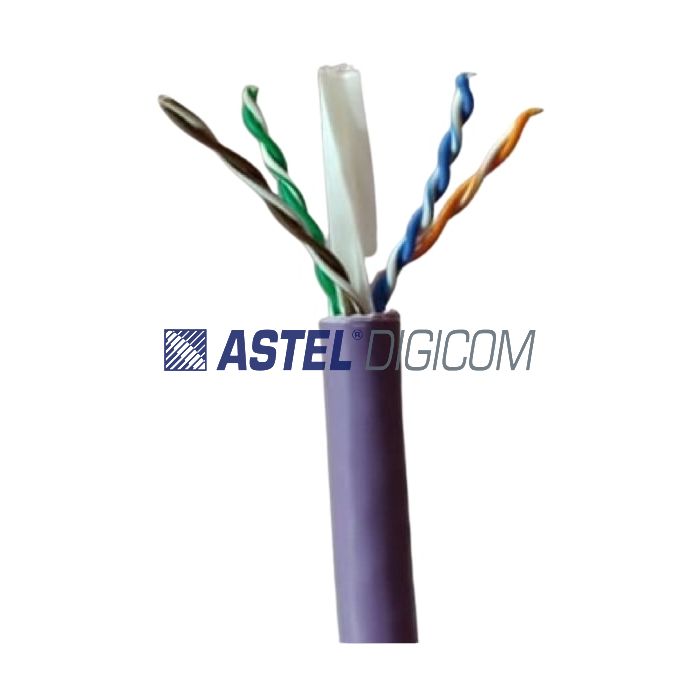

U/UTP CAT6A Pure Copper for 10G Data Networks

AED 0.00

In stock

Product Model

Networking Cable U/UTP CAT6A BC PVC

ASTEL U/UTP CAT6A cables exceed or meet Category 6A EIA/TIA 568C2 Specifications. It is tested to 500 MHz frequency range and designed to support 10G applications for full length of 100m.

Details

ASTEL U/UTP CAT6A PVC Cables exceeds or meet Category 6A EIA/TIA 568C2 specifications. It is tested upto 500 MHz frequency range and desisgned to support 10G applications for full length of 100m.

Main Applications

1) 100Base-TX.
2) 100Base-T.
3) 100VG-AnyLAN.
4) 1000Base-T (Gigabit Ethernet).
5) 1000Base-TX.
6) 10G.
7) ATM.

Technical specification

More Information

Technical specification

Model Product	Unit	U/UTP CAT6A BC PVC
Construction:
AWG		23
Conductor		Solid Bare Copper
Conductor OD	mm	0.56± 0.008
Conductor AWG		23 AWG
Insulation		HDPE
Insulation avg. thickness	mm	0.24
Insulation Dia	mm	1.00±0.05
CoreColours		1P-White/Blue, 2P-White/Orange 3P-White/Green, 4P-White/Brown
Filler (CROSS)		PE
Individual Pair Shielding		NO
Drain Wire		NO
Outer Shielding		NO
Outer Shielding Coverage		NA
Jacket Material		PVC
Jacket Thickness	mm	1.0±0.05
Jacket min point thickness	mm	0.9
Outer Dia	mm	7.0±0.3
Rip Cord		YES
Packaging:
Packing		305M Reel
Size		38x38x31
Weight		23kgs
ElectricalandMechanical Parameters:
Impedance		1~300 MHz -100 ± 15 300 ~ 500 MHz -100 ± 25
DC Resistance for Conductor	Ohms	9.38
Velocity of propagation	%	72 %
Delay Skew	(ns/100m)	≤45ns
Pair to ground Capacitance unbalanced	Pf/100m	330
Resistance Unbalance (%)		≤5
Min bending radius		8*OD

Electrical Characteristic
Frequency MHz	ATT (≤dB)	NEXT (≥dB)	PSNEXT (≥dB)	Return Loss	ELFEXT (≥dB)100m	PSELFEXT (≥dB)100m
4.00	3.7	65.3	63.3	23.0	55.8	52.8
10.0	5.9	59.3	57.3	25.0	47.8	4408
16.0	7.5	56.2	54.2	25.0	43.7	40.7
20.0	8.3	54.8	52.8	25.0	41.8	38.8
31.25	10.5	51.9	49.9	23.6	37.8	34.9
62.5	14.9	47.4	45.4	21.5	31.9	28.9
100	19.0	44.3	42.3	20.1	27.8	24.8
200	27.5	39.8	37.8	18.0	21.8	18.8
250	31.1	38.3	36.8	17.3	19.8	16.8
300	34.2	37.1	35.1	16.8	18.3	15.3
500	45.3	33.8	31.8	15.2	13.8	10.8

Disclaimer

1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
