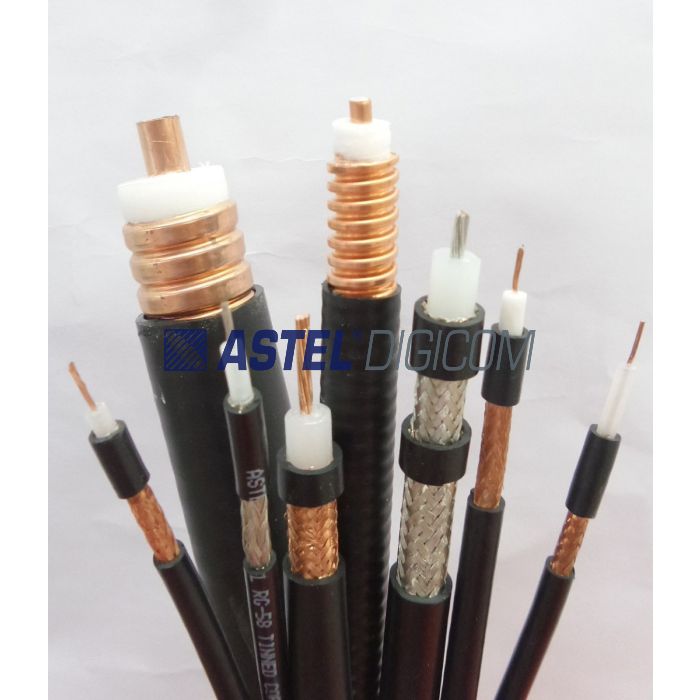

TMR 400 Solid Copper Series
AED 2,175.00
In stock
Product Model C-TMR-400-PVC
More Information
| Technical specification |
| Parameter |
C-TMR-400 |
| Inner Conductor |
Solid Bare Copper |
| Dielectric |
Foamed PE |
| Ist Outer Conductor |
AL/PS/AL Tape |
| Ist Outer Conductor |
7.39 mm |
| Braid |
Tinned Copper |
| Braid Coverage |
97% Coverage |
| Braid Structure |
24x7x0.16mm |
| Jacket Material |
PVC |
| Construction |
|
| Center Conductor Diameter |
2.74 mm |
| Foam PE |
7.24 mm |
| Ist shield |
7.39 mm |
| Jacket Diameter |
10.30 mm |
| Nominal DCR @ 20 deg C |
| Inner Conductor |
3.50 Ohms/ KM |
| Outer Conductor |
5.41 Ohms/ KM |
| Max Working Frequency |
6 GHz |
| Impedance |
50±3 ohms |
| Return Loss |
|
| Propagation Velocity Ratio |
85% |
| Insulation Resistance |
≥ 10000 MΩ*KM |
| Temp Range Operation |
-40°C to +70°C |
| Temp Range Installation |
-20°C to +70°C |
| Packing |
|
| 100Y- QTY PER CTN |
|
| 250M Reel Size (cms) |
44x44x40 cms |
| 250M Reel Weight (kgs) |
40 Kgs |
|
