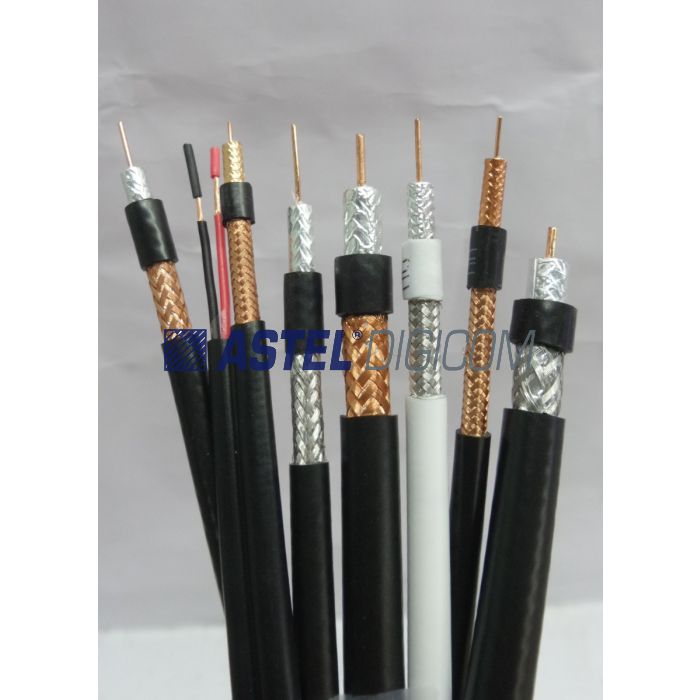

ASTEL TMR-400 Solid CCA 50 Ohm RF Coaxial Cable
AED 1,875.00
In stock
Product Model TMR-400-PVC, TMR-400-PE, TMR-400-PE-DB
ASTEL TMR-400 Solid CCA 50 Ohm RF Coaxial Cable is a high-performance, low-loss communication cable designed for wireless, telecom, and RF transmission systems. Available in PVC, PE, and PE with Jelly (Direct Burial) jacket options, it features a solid copper-clad aluminium (CCA) conductor, foamed PE dielectric, AL/PS/AL shielding, and 97% tinned copper braid coverage for excellent signal integrity and EMI protection. With a maximum operating frequency of 6GHz, it is ideal for GSM, LTE, Wi-Fi, microwave, and antenna feeder applications.
TMR-400-PVC, TMR-400-PE, TMR-400-PE-DB
More Information
Technical specification
Parameter TMR-400-PVC TMR-400-PE TMR-400-PE-DB
Inner Conductor Solid CCA Solid CCA Solid CCA
Dielectric Foamed PE Foamed PE Foamed PE
Ist Outer Conductor AL/PS/AL Tape AL/PS/AL Tape AL/PS/AL Tape
Ist Outer Conductor 7.39 mm 7.39 mm 7.39 mm
Braid Tinned Copper Tinned Copper Tinned Copper
Braid Coverage 97% Coverage 97% Coverage 97% Coverage
Braid Structure 24x7x0.16mm 24x7x0.16mm 24x7x0.16mm
Jacket Material PVC PE PE Jacket +Jelly
Construction
Center Conductor Diameter 2.74 mm 2.74 mm 2.74 mm
Foam PE 7.24 mm 7.24 mm 7.24 mm
Ist shield 7.39 mm 7.39 mm 7.39 mm
Jacket Diameter 10.30 mm 10.30 mm 10.30 mm
Nominal DCR @ 20 deg C
Inner Conductor 4.50 Ohms / KM 4.50 Ohms / KM 4.50 Ohms / KM
Outer Conductor 5.41 ohms / KM 5.41 ohms / KM 5.41 ohms / KM
Max Working Frequency 6 GHz 6 GHz 6 GHz
Impedance 50±3 ohms 50±3 ohms 50±3 ohms
Return Loss
Propagation Velocity Ratio 85% 85% 85%
Insulation Resistance ≥10000 MΩ*KM ≥10000 MΩ*KM ≥10000 MΩ*KM
Min Bending Radius (Single) 25.4 mm 25.4 mm
Temp Range Operation -40°C to +70°C -40°C to +70°C -40°C to +85°C
Temp Range Installation -20°C to +70°C -20°C to +70°C -20°C to +85°C
Packing
100Y- QTY PER CTN
250M Reel Size (cms) 44x44x40 cms 44x44x40 cms 44x44x40 cms
250M Reel Weight (kgs) 30 Kgs 30 Kgs 31 Kgs
