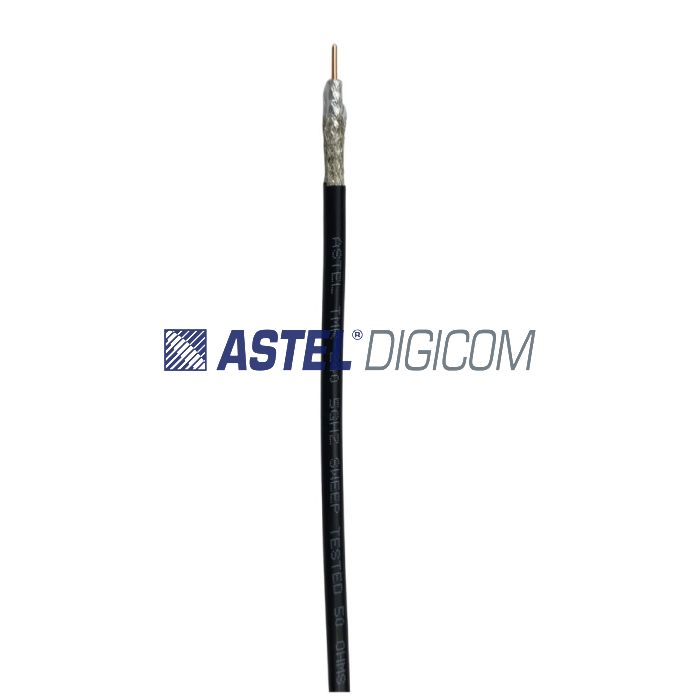

TMR 240 Solid CCA Series PVC Jacket
AED 590.00
In stock
Product Model TMR240PVC250MRB
ASTEL 50 Ohms cables are Flexible, High Performance, Low loss communication cables designed for use in all kinds of wireless systems. ASTEL Cables are manufactured in ISO 9002 approved manufacturing plant. These cables are manufactured with latest manufacturing technologies resulting in:
High shielding effectiveness Low Intrinsic Noise Low Structural Return Loss Higher peak power rating
ASTEL 50 Ohms cables are Flexible, High Performance, Low loss communication cables designed for use in all kinds of wireless systems. ASTEL Cables are manufactured in ISO 9002 approved manufacturing plant. These cables are manufactured with latest manufacturing technologies resulting in:
High shielding effectiveness Low Intrinsic Noise Low Structural Return Loss Higher peak power rating
More Information
Technical specification
Mobile Phone Tower
GSM Towers
Cellular Base station
PCS, Paging
2 way Radio
WLL Wireless Data
WIFI, WIMAX
Wireless Telemetry
Transmission Antenna
Microwave Antenna
Technical Specifications:
Parameter TMR-240-PVC
Inner Conductor
Solid Copper
Dielectric
Foamed PE
Ist Outer Conductor
AL/PS/AL Tape
Ist Outer Conductor
3.81±0.10 mm
Braid
Tinned Copper
Braid Coverage
95% Coverage
Braid Structure
112x0.12mm
Jacket Material
PVC-FR
Construction
Center Conductor Diameter
1.42±0.01 mm
Foam PE
3.81±0.10 mm
Ist shield
3.85±0.10 mm
Jacket Diameter
6.10±0.20 mm
Nominal DCR @ 20 deg C
Inner Conductor
≤11.2 Ohms / KM
Outer Conductor
≤15.0 ohms / KM
Nominal Capacitance
Impedance
50±3 ohms
Return Loss
Propagation Velocity Ratio
85%
Insulation Resistance
≥5000 MΩ*KM
Min Bending Radius (Repeated)
Min Bending Radius (Single)
Temp Range Operation
-40°C to +70°C
Temp Range Installation
-20°C to +70°C
Packing
250M Reel Size (cms)
250M Reel Weight (kgs)
Gross Weight / Net Weight:
14 Kgs/ 13 Kgs
Carton Size:
29x29x 23 cms
Attenuation @ 20 deg. C
Frequency (MHz)
TMR-240-PVC
30
< 4.27
50
< 5.90
150
< 9.90
220
< 12.00
450
< 17.30
900
< 24.80
1500
< 32.40
1800
< 35.60
2000
< 37.70
2500
< 42.40
3000
< 46.52
Average Power Rating C 104oF (40oC) Ambient Temp. VSWR 1.0
Frequency (MHz)
KW
30
1.49
50
1.15
150
0.66
220
0.54
450
0.38
900
0.26
1500
0.20
2000
0.17
2500
0.15
