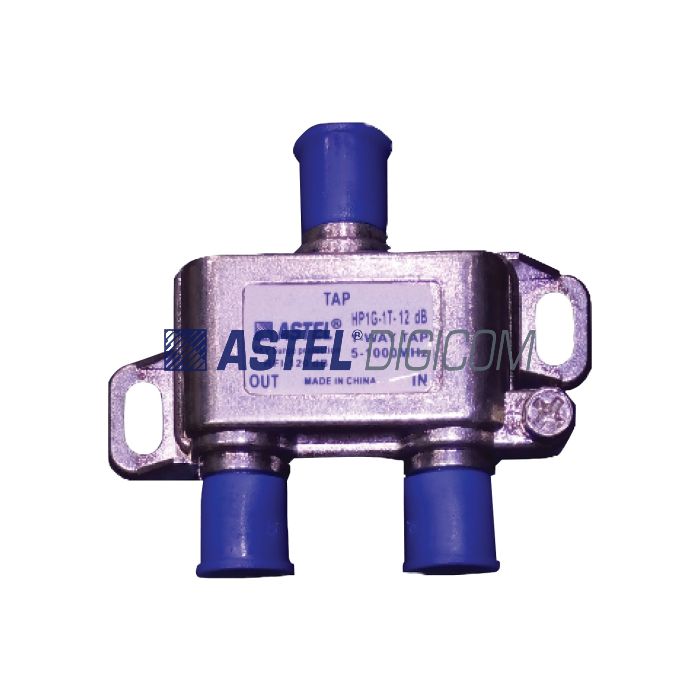

main product photo

TAPOFF-HP1G-1T-XX Series 5-1000 MHz

AED 7.00
In stock
Product Model
HP1G-1T-XX
    • Astel RF Tapoffs are designed with high quality SMD and Ferrite components for usage in Digital and Analog SMATV, CATV, MATV Networks.
    Astel RF Tapoffs are designed with high quality SMD and Ferrite components for usage in Digital and Analog SMATV, CATV, MATV Networks. The enhanced performance of these series makes them suitable for all future CATV, MATV, One way or two way interactive networks.
    Tapoff divide a small portion of the signal on the trunk line (main line) to tap lines. Signal is attenuated between Input and Tap ports. Depending on the Tap value (dB value), the small portion will be passed to the tap line. Higher the value of the DB, lower the amount of signal passed to the tap line. e.g. Tap line in 20 dB tap will have lower amount of signal then the Tap line in 8 dB tap.
    More Information
    Technical specification

    Main Features

    1) Frequency range 5 MHz up to 2.5 GHz.
    2) All Ports Power Pass.
    3) High shielding of 110 dB.
    4) Zinc die-cast housing with corrosion protection.
    5) High precision machine threaded F-ports.
    6) Built in Diode for protection of TV and STB (from Surge and lightning protection).
    7) All splitters with 13/18V, 22 kHz pass through for SAT band switching and remote feeding.
    8) DC/AC pass trough max. 25 V/0,5 A over all IN-OUT ports.
    9) F- female connectors.

    Parameter Frequency (MHz)
    HP1G-1T-XX, Tapoff 1 way
    Tap Loss dB 8 dB 10 dB 12 dB 14 dB 16 dB 18 dB 20 dB
    Tap Loss Tolerance   ±1.0 dB
    Insert Loss (dB) VHF 1.3 1.3 0.8 0.8 0.7 0.7 0.7
    UHF 1.7 1.7 1.2 1.0 1.0 1.0 1.0
    Isolation (dB) Out-Tap UHF 23 23 24 24 24 26 26
    VHF 22 22 25 28 25 28 28
    Return Loss at 40 MHz
    -1.5 dB/OCT    		 IN OUT
    TAP    		 20
    Dimension mm 56x50x26
    HP1G-2T-XX, Tapoff 2 way
    Tap Loss dB 8 dB 10 dB 12 dB 14 dB 16 dB 18 dB 20 dB
    Tap Loss Tolerance   +1.5 dB +1.2 dB
    Insert Loss (dB) VHF 4.2 2.5 1.8 1.5 1.2 1.0 0.8
    UHF 4.8 3.0 2.2 2.0 1.8 1.5 1.3
    Isolation (dB) Out-Tap UHF 20 22 22 22 25 25 25
    VHF 22 22 25 25 28 28 28
    Isolation (dB) Tap-Tap UHF 22 24 30 32 35 35 35
    VHF 27 29 35 35 38 40 40
    Return Loss at 40 MHz
    -1.5 dB/OCT    		 IN OUT TAP 20
    Dimension mm 78x50x26
    HP1G-4T-XX, Tapoff 4 way
    Tap Loss dB 10 dB 12 dB 14 dB 16 dB 18 dB 22 dB
    Tap Loss Tolerance   +1.5 dB                                                                 +1.2 dB
    Insert Loss (dB) VHF 3.7 3.5 3.0 2.0 1.0 0.8
    UHF 4.7 4.4 3.5 2.8 1.8 1.2
    Isolation (dB) Out-Tap UHF 25 22 23 24 25 25
    VHF 30 24 25 25 28 28
    Isolation (dB) Tap-Tap VHF 25 28 30 30 30 27
    UHF 22 25 25 25 25 25
    Return Loss at 40 MHz
    -1.5 dB/OCT    		 IN OUT
    TAP    		 20
    Dimension mm 78x61x26

    Parameter Frequency (MHz)
    HP1G-8T-XX, Tapoff 8 way
    Tap Loss dB 14 dB 16 dB 20 dB
    Tap Loss Tolerance   -2.5 - +1.0 + 1.5 dB + 1.5 dB
    Insert Loss (dB) VHF 3.5 3.2 1.5
    UHF 4.2 4.2 2.2
    Isolation (dB) Out-Tap UHF 25 21 25
    VHF 25 24 28
    Isolation (dB) Tap-Tap VHF 25 30 25
    UHF 25 25 25
    Return Loss at 40 MHz
    -1.5 dB/OCT    		 IN OUT
    TAP    		 20
    Dimension mm 122 x 61 x 27


    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
