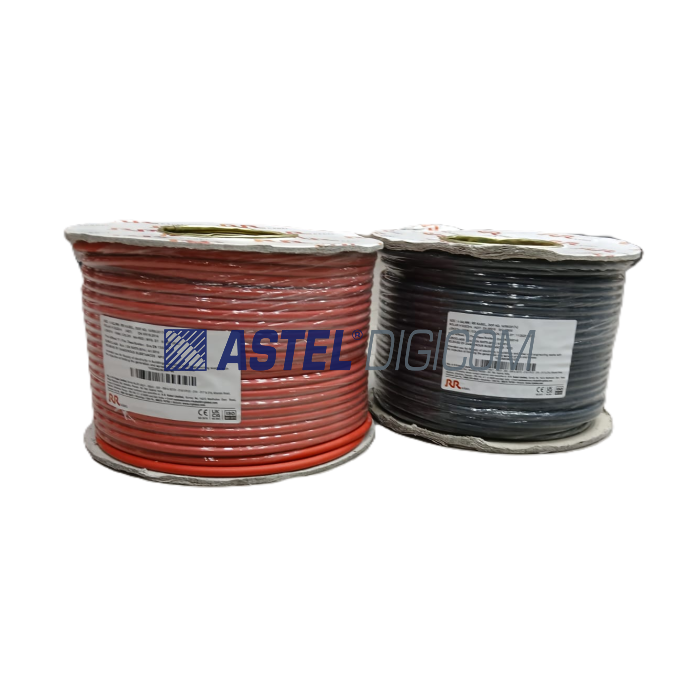

Solar Cable 1Cx6mm², Dual Insulated, Halogen-Free, Flame-Retardant Cable, is designed for photovoltaic power systems and solar energy installations. Manufactured with tinned copper conductors and UV-resistant halogen-free insulation, it delivers reliable electrical performance in indoor, outdoor, industrial, and agricultural environments. The cable offers excellent resistance to UV radiation, ozone, oil, chemicals, and harsh weather conditions, making it suitable for demanding solar power applications.
Applications:Solar Cables are intended for use in photovoltaic power supply systems and similar applications. These cables can be used indoors, outdoors, in industrial settings, and on agricultural farms. They are suitable for PV Solar Panels wiring and connection to solar inverters. They are also suitable for applications in equipment with protective insulation (protection class 2).Conductor: Fine Wire Tinned Copper Conductor according to BS EN 60228 Class 5Insulation: UV Resistant, Cross Linkable, halogen-free, flame-retardant compound for core insulation Core identification: Red, Black, or NeutralSheath: UV Resistant, Cross Linkable, Halogen-free, Flame-retardant compound over insulation.Cable Color: Red, Black, or Black with Red Strip
Standard: EN 50618:2015 Electrical Parameters:Voltage rating: AC 0.6/1.0KVMax PV -Systems Voltage: DC up to 2.0 kV Max permissible operating voltage in AC systems: 0.7/1.2KVMax permissible operating voltage in DC systems: 0.9/1.8KVTest Voltage: AC 6.5KV/ DC 15KV (15 mins)Technical specifications:
Technical Parameter
Specification
Conductor
Class 5 Tinned copper conductor to spec BS EN 60228:2005
Insulation
Cross-linked, UV-Resistant, HFFR compound
Insulation color
Black, Red, or Neutral
Sheath
Cross-Linked, UV-Resistant, HFFR Compound
Cable Color
Red, Black, Black with Red Strip
Technical specifications (Dimensions):
No of Cores x Nominal Cross-Section Area (mm2)
Nominal thickness of insulation mm
Outer thickness of sheath mm
Normal Overall Dia mm
Current carrying capacity (Single cable free in air)
Max conductor resistance at 20deg°C, (ohms/km)
1x1.50
0.70
0.80
4.66
30
13.7
1x2.50
0.70
0.80
5.09
41
8.21
1x4.00
0.70
0.80
5.59
55
5.09
1x6.00
0.70
0.80
6.13
70
3.39
1x10.00
0.70
0.80
7.07
98
1.95
1x16.00
0.70
0.90
8.32
132
1.24
1x25.00
0.90
1.00
10.14
176
0.795
1x35.00
0.90
1.10
11.49
218
0.565
Technical Notes:
Table in accordance with BS EN 60228:2005 (Previously BS6360)
Current ratings are based on a conductor operating temperature of 85°C and ambient air temperature of 45°C, and assumes single cable isolated in free air.
Correction factors (Ambient Temperature):
Ambient Temperature
45°C
50°C
55°C
60°C
65°C
70°C
75°C
Reduction factor
1.0
0.97
0.90
0.82
0.73
0.63
0.52
Correction factors (Cables grouped together or bunched together):
Number of cables in group
2
3
4
5
6
7
8
Reduction factor
0.80
0.70
0.65
0.60
0.56
0.53
0.50
