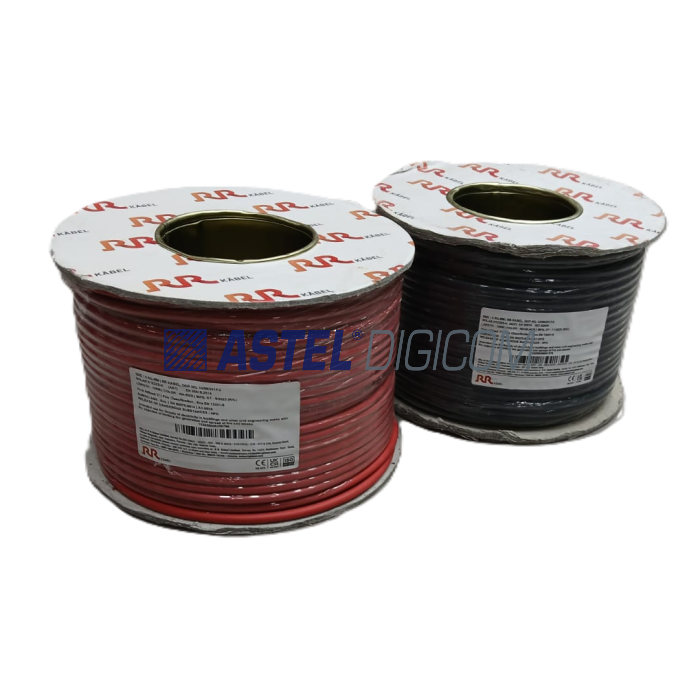

main product photo

Solar Cable 1Cx6mm2 Dual insulated Halogen Free Flame Retardent

AED 370.00
In stock
Product Model
RRKH1Z2Z2K
    • Solar Cables or Photovoltaic Cables

    Solar Cables are intended for use in photovoltaic power supply systems and similar applications. These cables can be used indoor, outdoor, in industry and agriculture farms. They are suitable for PV Solar Panels wiring and connection to solar invertors. They are also suitable for applications in equipment with protective insulation (protection class 2).



    Solar Cables or Photovoltaic Cables

    Applications:

    Solar Cables are intended for use in photovoltaic power supply systems and similar applications. These cables can be used indoor, outdoor, in industry and agriculture farms. They are suitable for PV Solar Panels wiring and connection to solar invertors. They are also suitable for applications in equipment with protective insulation (protection class 2).

    Conductor: Fine Wire Tinned Copper Conductor according to BS EN 60228 Class 5
    Insulation: UV Resistant, Cross Linkable, halogen Free, Flame Retardent compound for core insulation
    Core identification: Red, Black, or Neutral
    Sheath: UV Resistant, Cross Linkable, Halogen free, Frame retardent  compound over insulation.
    Cable Color: Red, Black, or Black with Red Strip
    More Information
    Technical specification
    Solar Cables or Photovoltaic Cables:

    Applications:

    Solar Cables are intended for use in photovoltaic power supply systems and similar applications. These cables can be used indoor, outdoor, in industry and agriculture farms. They are suitable for PV Solar Panels wiring and connection to solar invertors. They are also suitable for applications in equipment with protective insulation (protection class 2).

    Conductor: fine Wire Tinned Copper Conductor according to BS EN 60228 Class 5
    Insulation: UV Resistant, Cross Linkable, halogen Free, Flame Retardent compound for core insulation
    Core identification: Red, Black, or Neutral
    Sheath: UV Resistant, Cross Linkable, Halogen free, Frame retardent  compound over insulation.
    Cable Color: Red, Black, or Black with Red Strip

    Standard: EN 50618:2015

    Electrical Parameters:
    Voltage rating: AC 0.6/1.0KV
    Max PV -Systems Voltage: DC upto 2.0KV
    Max permissible operating voltage in AC systems: 0.7/1.2KV
    Max permissible operating voltage in DC systems: 0.9/1.8KV
    Test Voltage: AC 6.5KV/ DC 15KV (15 mins)

     Technical specfications:


    Technical Parameter

    Specification

    Conductor

    Class 5 Tinned copper conductor to spec BS EN 60228:2005

    Insulation

    Cross Linked, UV Resistant, HFFR compound

    Insulation color

    Black, Red or Neutral

    Sheath

    Cross Linked, UV Resistant, HFFR Compound

    Cable Color

    Red, Black, Black with Red Strip





     Technical specifications (Dimensions):


    No of Cores x  Nominal Cross Section Area (mm2)

    Nominal thickness of insulation mm

    Outer

    thickness of sheath

    mm

    Normal Overall

    Dia

    mm

    Current

    carrying capacity

     (Single cable  free in air)

    Max conductor resistance at 20degC, (ohms/km)

    1x1.50

    0.70

    0.80

    4.66

    30

    13.7

    1x2.50

    0.70

    0.80

    5.09

    41

    8.21

    1x4.00

    0.70

    0.80

    5.59

    55

    5.09

    1x6.00

    0.70

    0.80

    6.13

    70

    3.39

    1x10.00

    0.70

    0.80

    7.07

    98

    1.95

    1x16.00

    0.70

    0.90

    8.32

    132

    1.24

    1x25.00

    0.90

    1.00

    10.14

    176

    0.795

    1x35.00

    0.90

    1.10

    11.49

    218

    0565

    1x16.00

    6

    1.52

    8.45

    187

    1015

    1x25.00

    4

    1.52

    9.60

    291

    1015

    1x35.00

    2

    1.52

    10.85

    406

    1015













     Technical Notes:

    Table in accordance with BS EN 60228:2005 (Previously BS6360)

    Current ratings are based on a conductor operating temperature of 85°C and ambient air temperature of 45°C and assumes single cable isolated in free air.

    Correction factors (Ambient Temperature):

    Ambient Temperature

    45°C

    50°C

    55°C

    60°C

    65°C

    70°C

    75°C

    Reduction factor

    1.0

    0.97

    0.90

    0.82

    0.73

    0.63

    0.52



    Correction factors (Cables grouped together or bunched together):

    Number of cables in group

    2

    3

    4

    5

    6

    7

    8

    Reduction factor

    0.80

    0.70

    0.65

    0.60

    0.56

    0.53

    0.50

    Disclaimer
    1. RR Kabel, Brand and its logo are registered trademark of Ram Ratna Global, Ram Ratna Group, Ram Ratna House, Utopia city, Worli, Mumbai-400013, India.
    2. The Technical data mentioned above, has been derived to have the best product in place. Having known that innovation has always been the base of RR Kabel products, the technical data would vary from time to time. Hence, current details should always be checked with RR Kabel for accuracy. 3. Astel Digicom Electronics LLC is not responsible for the accuracy of data provided above.
    4. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    5. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing.
    6. E&OE (Errors and Omissions are excepted)
