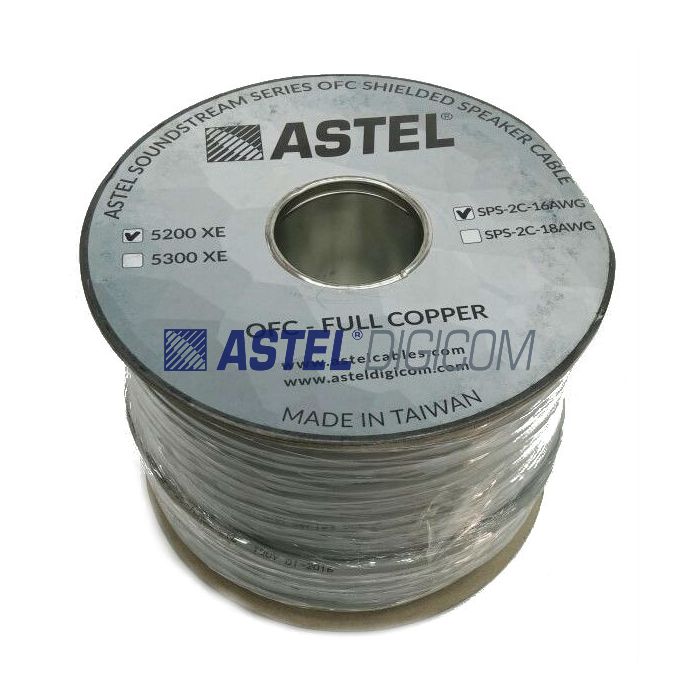

Astel lousdspeaker cables use high purity OFC (Oxygen free Copper 99.99% Purity) ad low contamination plastics to assure high precision music transmission and long operating life.
Astel lousdspeaker cables use high purity OFC (Oxygen free Copper 99.99% Purity) ad low contamination plastics to assure high precision music transmission and long operating life.
Main Applications1) Indoor speaker systems 2) Shopping Malls 3) Conference Hall 4) School auditoriums 5) Wall Mount Speakers
Model Product
2Cx1.30mm2
Conductor 1&2
OFC (Stranded Oxygen Free) Copper
Conductor Structure
65 x 0.16
Conductor Cross Section Area
1.30 mm2
Conductor AWG
16 AWG
Dia with Insulation (mm)
2.10 mm
Jacket Material
PVC
Outer Diameter
5.80 mm
Rip Cord
Yes
Shielding Wires
7x0.20 TC
Electric Specifications
Dielectric Strength
2000V/5m
Nominal DCR for BC (Ohms/Km)
14.14
Nominal DCR for Shielding (Ohms/km)
68.85
Capacitance Conductor to Conductor (pf/M)
201.6
Capacitance Conductor to Shielding (Pf/M)
359.7
Tensile Strength of Jacket (Mpa)
>12 Mpa
Elongation (%)
>250%
Packing
Length each coil
100Y (91.2mts)
Weight each coil 100Y
5.95 Kg
Number of coils in 1 carton
4
Weight of each carton
23.70 Kgs
Size of each carton (cm)
38x19x27
Weight each Reel 250 mts
17.6
Size each Reel 250 mts (cm)
30x30x22
Notes: * All measurements adjusted for ambient temp of 20 degC. * DC resistance changes at the rate of 0.393% / Deg C. * Sequential meter marking on all cables. * Higher core sizes cables also available. Please see our series SPO-2C-XX (Speaker Outdoor OFC Cables) * Shielded Speaker Cables also available, please see ASTEL Series SPS-2C-XX * NA- Not available
