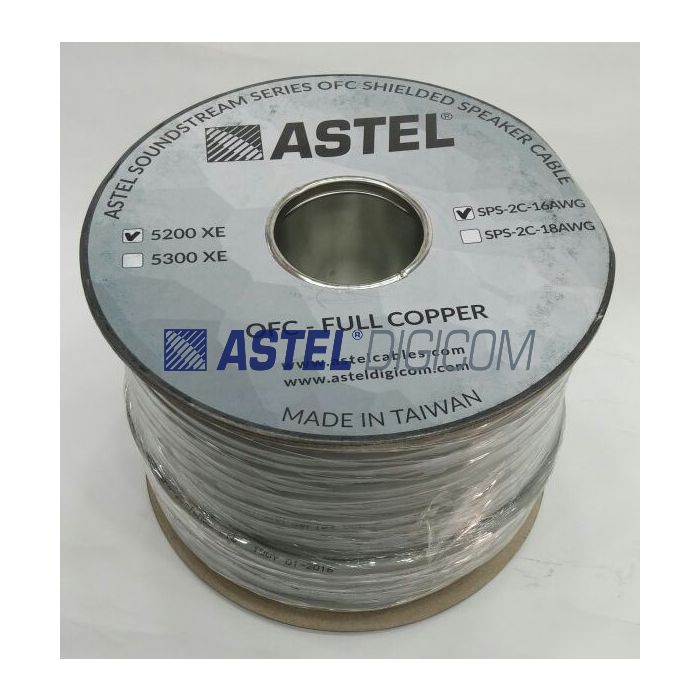

ASTEL 5200XE Shielded OFC Speaker Cable
Featuring stranded copper conductors, tinned copper shielding wires and a durable PVC outer jacket, the cable is suitable for indoor speaker systems, shopping malls, conference halls, school auditoriums and wall-mounted speaker installations. Its 1.30mm² conductor cross-section and 5.80mm outer diameter provide a compact solution for professional sound system cabling.
Key Features
-
Product model: SPS-2C-16AWG-5200XE
-
2-core shielded speaker cable
-
High-purity 99.99% Oxygen Free Copper (OFC)
-
Stranded copper conductors
-
Conductor structure: 65 × 0.16mm
-
Conductor cross-sectional area: 1.30mm²
-
Conductor size: 16 AWG
-
Insulated conductor diameter: 2.10mm
-
PVC outer jacket
-
Overall cable diameter: 5.80mm
-
Tinned copper shielding wires: 7 × 0.20mm
-
Ripcord included
-
Dielectric strength: 2000V/5m (as specified)
-
Nominal conductor DC resistance: 14.14 Ω/km
-
Nominal shielding DC resistance: 68.85 Ω/km
-
Conductor-to-conductor capacitance: 201.60 pF/m
-
Conductor-to-shield capacitance: 359.70 pF/m
-
Jacket tensile strength: greater than 12 MPa
-
Jacket elongation: greater than 250%
-
Standard coil length: 100 yards (91.2 metres)
-
250-metre reel option available
-
Sequential metre markings
-
Suitable for indoor speaker systems
-
Ideal for shopping malls and conference halls
-
Suitable for school auditoriums and wall-mounted speakers
| Technical specification |
* All measurements adjusted for ambient temp of 20 degC. * DC resistance changes at the rate of 0.393% / Deg C. * Sequential meter marking on all cables. * Higher core sizes cables also available. Please see our series SPO-2C-XX (Speaker Outdoor OFC Cables) * Shielded Speaker Cables also available, please see ASTEL Series SPS-2C-XX * NA- Not available |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
