SHIELDED RJ45 CAT6A CONNECTORS

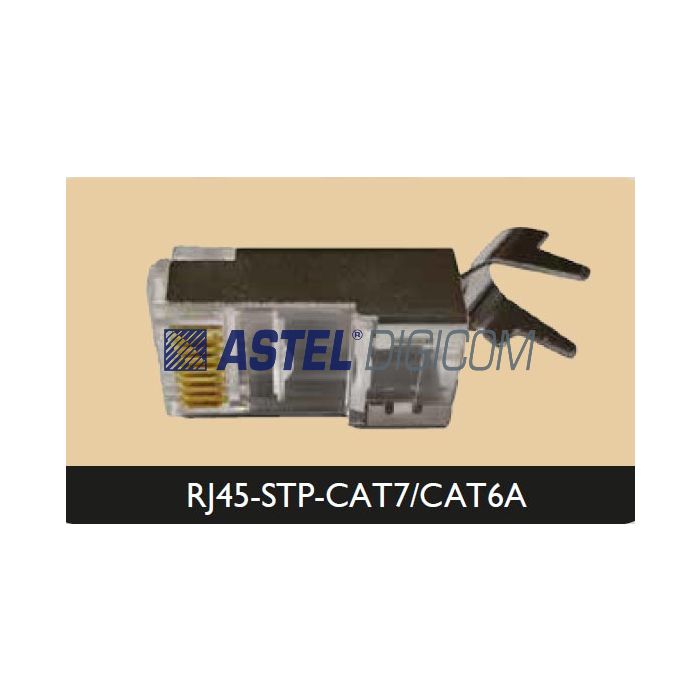

Astel Digicom RJ45SC6A30U connectors are designed and engineered for connecting CAT6A networking cables to face plates or key stone jacks or other active and passive networking devices such as switches, routers, PoE injectors etc.
Astel Digicom RJ45SC6A30U connector has two parts. Ist part is core separator which separates the8 cores of the CAT6A/CAT7 Cables. for maintaining the networking performance of the network. If proper gap is not maintained between the cores, the networking performance/speed shall be reduced. The second part is has Gold plated pins and the 3 prong/Triple point contact crimp pins. When the connector is crimped on to the cable, this pin touches the cable at 3 points for low contact resistance and high cable to connector integrity.
Astel Digicom RJ45SC6A30U are designed and engineered for easy installation and installer friendly crimp procedures.
.
Astel Digicom RJ45SC6A30U connectors are designed and engineered for connecting CAT6A networking cables to face plates or key stone jacks or other active and passive networking devices such as switches, routers, PoE injectors etc.
Astel Digicom RJ45SC6A30U connector has two parts. Ist part is core separator which separates the8 cores of the CAT6A/CAT7 Cables. for maintaining the networking performance of the network. If proper gap is not maintained between the cores, the networking performance/speed shall be reduced. The second part is has Gold plated pins and the 3 prong/Triple point contact crimp pins. When the connector is crimped on to the cable, this pin touches the cable at 3 points for low contact resistance and high cable to connector integrity.
Astel Digicom RJ45SC6A30U are designed and engineered for easy installation and installer friendly crimp procedures.
| Technical specification |
Astel Digicom RJ45SC6A50U connectors are designed and engineered for connecting CAT6A networking cables to face plates or key stone jacks or other active and passive networking devices such as switches, routers, PoE injectors etc. Astel Digicom RJ45 STP CAT6A connector has two parts. Ist part is core separator which separates the8 cores of the CAT6A/CAT7 Cables. for maintaining the networking performance of the network. If proper gap is not maintained between the cores, the networking performance/speed shall be reduced. The second part is has Gold plated pins and the 3 prong/Triple point contact crimp pins. When the connector is crimped on to the cable, this pin touches the cable at 3 points for low contact resistance and high cable to connector integrity. Astel Digicom RJ45SC6A50U are designed and engineered for easy installation and installer friendly crimp procedures. Main Features1) Can be used with LJ6C type Wallplates with suitable adapters2) Material: PC.3) Contacts: 30um Gold, Nickel Contacts.4) 8-position unscreened modular connector (RJ45). Applications 1) 10G Network2) 1000Base-T Gigabit network3) 100Base-T Gigabit network4) 10 Base-T Ethernet5) 155 Mbps ATM6) ISDN7) FDDI
|
|---|
