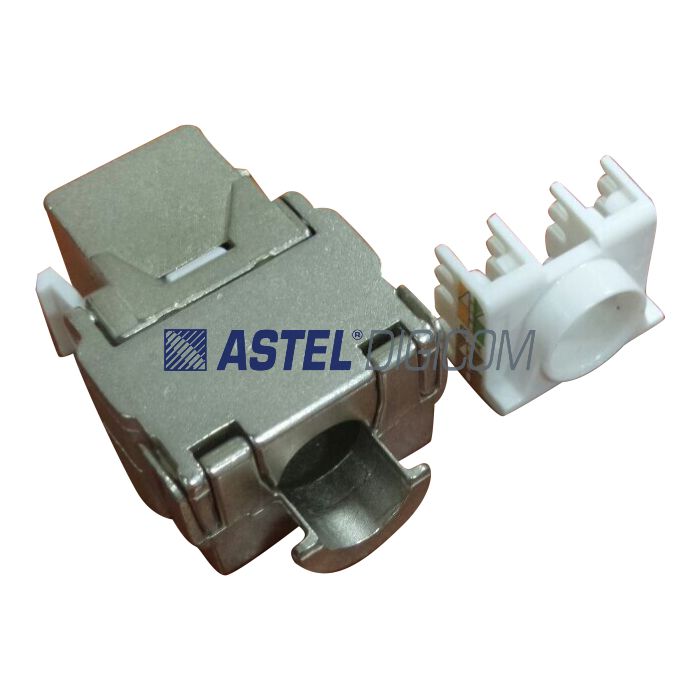

SHIELDED KEYSTONE JACK CAT6A
AED 10.00
In stock
Product Model NETKSJSC6A90
High performance CAT6A fully shielded (360 deg) key stone jack. Tested and certified according to the ISO/IEC 11801 2nd edition, it is suitable for Structured cabling network for 1G, 10G networks.
High performance CAT6A fully shielded (360 deg) key stone jack. Tested and certified according to the ISO/IEC 11801 2nd edition, it is suitable for Structured cabling network for 1G, 10G networks.
More Information
Technical specification
MAIN FEATURES:
Fully Shielded CAT6A. Gold plated phosphorus Bronze Contacts. Compatible with all kinds of RJ45 Face plates. Suitable for usage in Walls, sub floor systems. Fits easily in back box with depth of 30mm. Easy, fast and toolless installation. ISO/IEC 11801 2nd edition Amendment 2, Category 6A. ANSI/TIA 568-C.2 Category 6A. EN 50173-1:2007
APPLICATIONS :
Structured Cabling Network. Primary (Campus), Secondary (Riser), Tertiary (Horizontal). IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T. IEEE 802.5 16MB; ISDN; FDDI; ATM. High Bandwidth digital applications with low BER Multimedia transmisions like digital and analog video and voice.
Specifications KSJ-CAT6A-Shielded
IC Wire Gauge 22AWG-26AWG
Contacts spring material High strength phosphor-bronze alloy
Contacts plating 3u micro of gold plating over 100 micron of nickel
IDC contacts material High strength phosphor-bronze alloy
IDC retermination ≤20
Current rating 1,5A max
Contact resistance of spring 2.0mΩ 1 max
Contact resistance of IDC 2.5mΩ 1 max
Dielectric strength 1000Vac/ 1minute C to C
1500Vac/ 1 minute C to Panel
Insulation resistance 500 MΩ min @ 1OOVdc
Insertion/Extraction cycles ≤750 times
Temperature Range operation -40°C ~ +70°C
installation -10°C ~ +60°C
