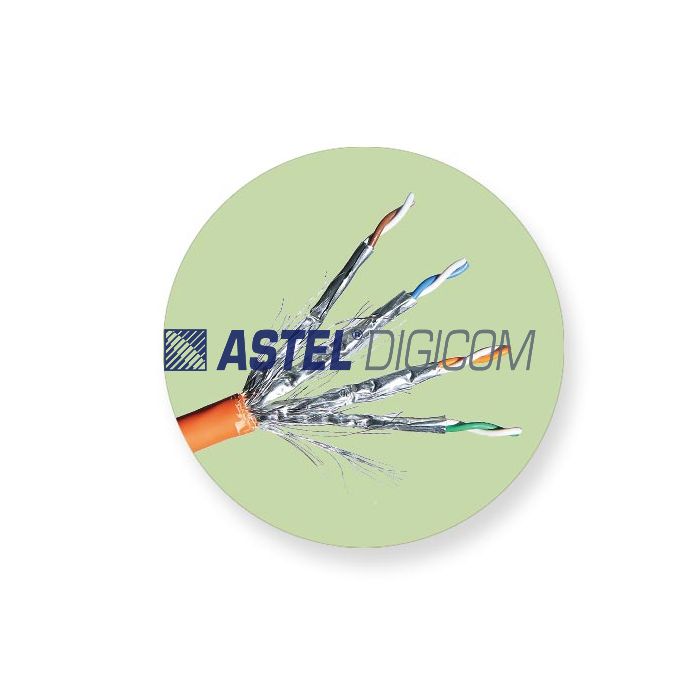

SFTP Dual Shielded Pure Copper CAT7A LSZH

AED 575.00
In stock
Product Model
SFTPCAT7ABCLZ305MRO
    • Astel SFTP CAT7A (Dual Shielded- Foil and Braid Shielding) cable are installed to protect data from such interference and improved cross talk performance. ASTEL SFTP CAT7A is compliant wo ISO/IEC 61156-5 and EN 50228-4 standards.
    Network Integrity is the most essential requirement for LAN, WAN, IP Networks. Network cables are highly prone to noise and electromagnetic interference In harsh and critical infrastructure environments like Airports, Hospitals, Industrial Control systems. Astel SFTP CAT7A (Dual Shielded- Foil Shielding) cable are installed to protect data from such interference and improved cross talk performance. ASTEL SFTP CAT7A is compliant wo ISO/IEC 61156-5 and EN 50228-4 standards.


    Main Applications:

    1) 100Base-TX.
    2) 100Base-T.
    3) 100VG-AnyLAN.
    4) 1000Base-T (Gigabit Ethernet).
    5) 1000Base-TX.
    6) 10G.
    7) ATM
    More Information
    Technical specification
    Technical Specifications:
    Model Product Unit SFTP CAT7A BC LSZH
    Construction:
    Conductor   Solid Bare Copper
    Conductor OD mm 0.57 ± 0.005
    Conductor AWG   23 AWG
    Insulation   SFS-PE-Skin foam Skin PE
    Insulation Dia mm 1.49±0.05
    Core Colours   1P-White/Blue, 2P-White/Orange
    3P-White/Green 4P-White/Brown
    Individual Pair Shielding   YES
    Inner Shielding   Al Foil
    Drain Wire   Bare Copper
    Outer Shielding   AL-MG Braiding
    Outer Shielding Coverage   60%
    Jacket Material   FR- PVC (Flame Retardent), LSZH
    Jacket Thickness mm 0.60±0.05
    Outer Dia mm 8.4±0.5
    Rip Cord   Yes
    Color   Orange (Can be provided as per customized)
    Jacket Tensile Strength Mpa 13.5
    Jacket Elongation % 150
    Bending Radius XD 8 x OD
    Packaging:
    Packing   305M Reel
    Size cms 39x39x28
    Weight   20 kg
    Electrical and Mechanical Parameters:
    Impedance Ohms/100m 1-100 MHz       100 ± 15
    100-250 MHz   100 ±18
    250-600 MHz    100 ± 25

    600-1000 MHz    100 ± 35
    DC Resistance Ohms 7.38
    DC Resistance Unbalance % 2%
    Capacitance Unbalance to ground pf /100m 160
    Velocity of propagation % 75%
    Delay Skew (ns/100m) ≤25
    Dielectric Strength KV/min 1.5
    Operating Temp Range °C -20 °C to +70 °C

    Technical Performance (100m):
    Frequency
    MHz    		 RL
    (≥dB)    		 ATT (≤dB) NEXT
    (≥dB)    		 DELAY
    (≤ns)    		 PSNEXT
    (≥dB)    		 ELFEXT
    (≥dB)    		 PSELFEXT
    (≥dB)
    1 20 2 78 570 75 78.0 75.0
    4 23 3.74 78 552 75 78.0 75.0
    8 24.5 5.24 78 546.7 75 77.2 74.2
    10 25 5.86 78 545.4 75 75.3 72.3
    16 25 7.41 78 543 75 71.2 68.2
    20 25 8.29 78 542 75 69.3 66.3
    25 24.3 9.29 78 541.2 75 67.3 64.3
    31.25 23.6 10.41 78 540.4 75 65.4 62.4
    62.5 21.5 14.88 75.5 538.6 75 59.4 56.4
    100 20.1 19.02 75.4 537.6 72.4 55.3 52.3
    150 18.9 23.56 69.8 536.9 69.8 50.2 48.3
    200 18 27.47 70.9 536.5 67.9 49.3 46.3
    250 17.3 30.97 66.4 536.3 66.4 47.3 44.3
    300 17.3 34.19 69.4 536.1 65.2 45.8 42.8
    600 17.3 50.1 63.7 535.5 60.7 39.7 36.7
    1000 15.1   60.4   57.4 35.4  32.3
    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
