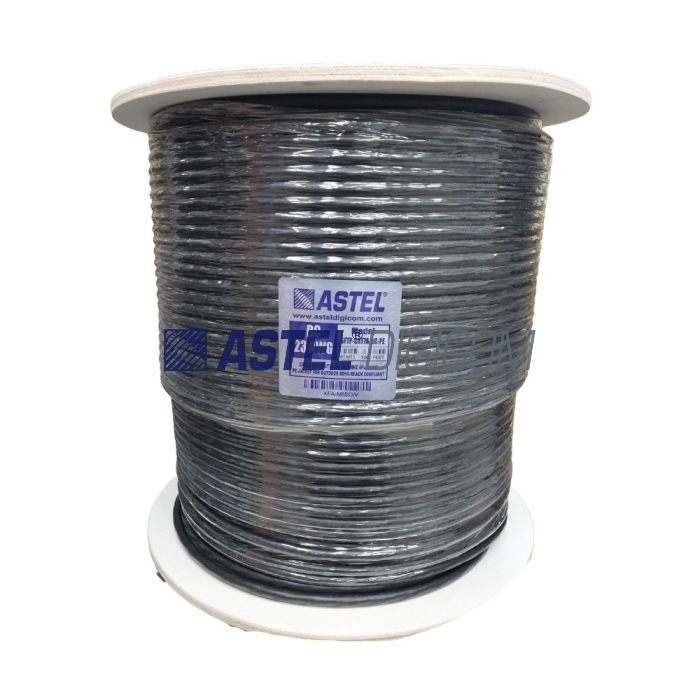

SFTP Dual Shielded Pure Copper CAT7A For Outdoor PE Jacket

AED 625.00
In stock
Product Model
SFTPCAT7ABCPE305MRB
Network Integrity is the most essential requirement for LAN, WAN, IP Networks. Network cables are highly prone to noise and electromagnetic interference In harsh and critical infrastructure environments like Airports, Hospitals, Industrial Control systems. Astel SFTP CAT7A (Dual Shielded- Foil Braid) cable are installed to protect data from such interference and improved cross talk performance. ASTEL SFTP CAT7A is compliant with ISO/IEC 5-61156 and EN 4-50228 standards.

Suitable for:

  • Internet Service Providers
  • EoC Networks
  • FTTH Networks
  • LAN Networks
  • WAN Networks
  • IPTV Networks
  • IP Cameras Networks
  • Distributed Control Systems (DCS)
  • Supervisory Control and Data Acquisition (SCADA) Systems
  • Building Management System (BMS)
  • Fire Automation Systems (FAS)
  • Security Automation System (SAS)
Network Integrity is the most essential requirement for LAN, WAN, IP Networks. Network cables are highly prone to noise and electromagnetic interference In harsh and critical infrastructure environments like Airports, Hospitals, Industrial Control systems. Astel SFTP CAT7A (Dual Shielded- Foil Braid) cable are installed to protect data from such interference and improved cross talk performance. ASTEL SFTP CAT7A is compliant with ISO/IEC 5-61156 and EN 4-50228 standards.

Suitable for:

  • Internet Service Providers
  • EoC Networks
  • FTTH Networks
  • LAN Networks
  • WAN Networks
  • IPTV Networks
  • IP Cameras Networks
  • Distributed Control Systems (DCS)
  • Supervisory Control and Data Acquisition (SCADA) Systems
  • Building Management System (BMS)
  • Fire Automation Systems (FAS)
  • Security Automation System (SAS)
More Information
Technical specification
Main Applications
  • 100Base-TX
  • 100Base-T
  • 100VG-AnyLAN
  • 1000Base-T (Gigabit Ethernet)
  • 1000Base-TX
  • 10G
  • ATM
Model Product Unit SFTP CAT7A BC PE
Construction:
Conductor    Solid Bare Copper
Conductor OD mm 0.57± 0.005
Conductor AWG   23 AWG
Insulation   SFS-PE-Skin foam Skin PE
Insulation Dia mm 1.35 ±0.03
Core Colours

1P-White/Blue, 2P-White/Orange

3P-White/Green 4P-White/Brown

Individual Pair Shielding   YES
Inner Shielding   Al Foil
Drain Wire   Bare Copper
Outer Shielding   AL-MG Braiding
Outer Shielding Coverage   60%
Jacket Material   PE (RoHS Compliant)
Jacket Thickness mm 0.75±0.10
Outer Dia mm 8.0±0.30
Rip Cord   Yes
Color   Black
Jacket Tensile Strength Mpa 13.5
Jacket Elongation % 150
Bending Radius XD 8 x OD
Packaging:
Packing   305M Reel
Size cms 39*39*36
Weight   19 kg
WeightElectrical and Mechanical Parameters:
Impedance Ohms/100m 1-1000 MHz 100 ± 15
DC Resistance Ohms 7.38
DC Resistance Unbalance to % 2%
Capacitance Unbalance to pf/100m 160
Velocity of propagation % 75%
Delay Skew (ns/100m) 25
Dielectric Strength KV/min 1.5
Operating Temp Range C -20°C to +60°C
Technical Performance (100m):
Frequency
MHz
ZC
Ω
IL
(≤dB/100m)
RL
(≥dB)

NEXT (≥dB/100m)

PSNEXT (≥dB/100m)

ELFEXT
(≥dB/100m)
PSELFEXT
(≥dB/100m)
 4.00  100±15Ω  3.7  23.0  78.0  75.0  78.0  75.0
 8.00  100±15Ω 5.2   24.5  78.0 75.0   77.2  74.2
 10.0  100±15Ω 5.8   25.0  78.0  75.0 75.3   72.3
 16.0  100±15Ω 7.3   25.0  78.0 75.0   71.2  68.2
 20.0  100±15Ω 8.2   25.0  78.0 75.0   69.3  66.3
 25.0  100±15Ω 9.2   24.3  78.0 75.0   67.3  64.3
31.25 100±15Ω 10.3 23.6 78.0 75.0 65.4 62.4
62.50 100±15Ω 14.6 21.5 78.0 75.0 59.4 56.4
100 100±15Ω 18.5 20.1 75.4 72.4 55.3 52.3
200 100±15Ω 26.5 18.0 70.9 67.9 49.3 46.3
250 100±15Ω 29.7 17.3 69.4 66.4 47.3 44.3
300 100±15Ω 32.7 17.3 68.2 65.2 45.8 42.8
400 100±15Ω 38.0 17.3 66.4 63.4 43.3 40.3
500 100±15Ω 42.8 17.3 64.9 61.9 41.3 38.3
600 100±15Ω 47.1 17.3 63.7 60.7 39.7 36.7
1000 100±15Ω 61.9 17.3 60.4 57.4 35.3 32.3

Disclaimer
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not        responsible for any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
