RG6 Copper Series 97% Shielding

AED375.00
In stock
Product Model
CU697ABV305MRB
    • ASTEL RG-6 Copper Series cables are perfectly matched for AHD, HD, HD-TVI, HD-CVI High resolution Cameras. CCTV Video signals are low frequency signals as compared to Satellite and Cable TV and thus the low frequency response of the coaxial cables is important.

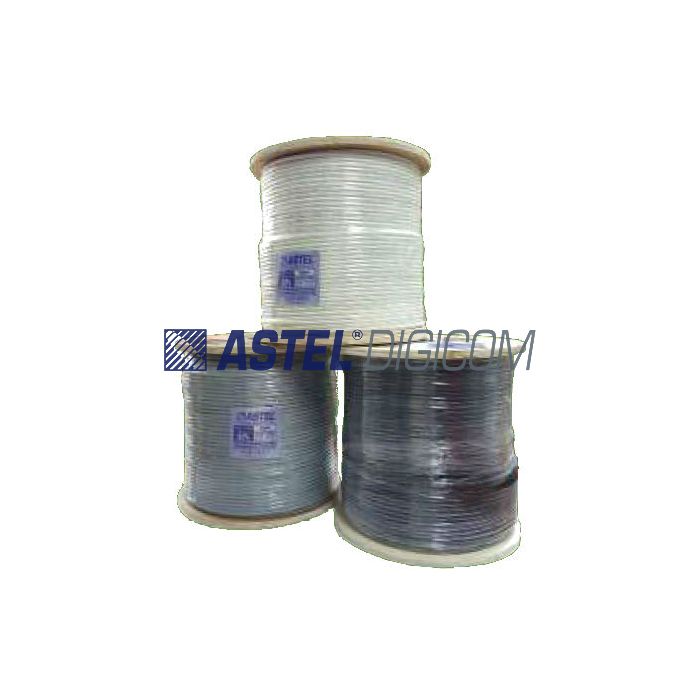

    main product photo
    Main Features

    1) ASTEL RG-6 (RG6) Copper Series cables are designed and manufactured to meet the increasing demands of CCTV Cameras, Satellite, Cable TV, and Antenna Reception applications.
    2) ASTEL RG-6 (RG6) Copper Series cables are perfectly matched for AHD, HD, HD-TVI, HD-CVI High resolution Cameras. CCTV Video signals are low frequency signals as compared to Satellite and Cable TV and thus the low frequency response of the coaxial cables is important.
    3) ASTEL RG-6(RG6) Copper Series have been designed for excellent LFR, high reliability, high shielding and low video signal attenuation. ASTEL has added Low Smoke Zero Halogen Model to comply with IEC 60332 standards.
    More Information
    Technical specification
    Model Product
    CU697ABV
    CU697ABZ
    CU697CBV
    Inner Conductor
    Bare Copper
    Bare Copper
    Bare Copper
    Dielectric
    Foam PE
    Foam PE
    Foam PE
    1st Shield
    Bonded AP Foil
    Bonded AP Foil
    Bonded AP Foil
    2nd Shield
    CCA Braiding
    CCA Braiding
    Bare Copper
    Braid Coverage
    97% Coverage
    97% Coverage
    97% Coverage
    3rd Shielding
    NA
    NA
    NA
    4th Shielding
    NA
    NA
    NA
    Jacket
    PVC
    LSZH
    PVC
    ROHS Compliance
    NO
    YES
    NO
    Construction



    Center Conductor Diameter
    1.02 mm
    1.02 mm
    1.02 mm
    Foam PE
    4.57 mm
    4.57 mm
    4.57 mm
    1st Shield
    4.76 mm
    4.76 mm
    4.76 mm
    2nd Shield
    5.38 mm
    5.38 mm
    5.38 mm
    3rd Shield
    NA
    NA
    NA
    4th Shielding
    NA
    NA
    NA
    Jacket Material
    PVC
    LSZH
    PVC
    Jacket
    6.91 mm
    6.95 mm
    6.91 mm
    Jelly (For Corrosion Protection)
    NO
    NO
    NO
    Electric Specifications



    Nominal DCR @ 20 deg C



    Inner Conductor
    23.71 ohms/KM
    23.71 ohms/KM
    23.71 ohms/KM
    Outer Conductor
    15.00 ohms/KM
    15.00 ohms/KM
    7.20 ohms/KM
    Nominal Capacitance
    53.0 pf
    53.0 pf
    53.0 pf
    Impedance
    75±3 ohms
    75±3 ohms
    75±3 ohms
    Return Loss
    ≥20 dB
    ≥22 dB
    ≥22 dB
    Propagation Velocity Ratio
    82%
    82%
    82%
    Insulation Resistance
    ≥2000MΩ
    ≥2000MΩ
    ≥2000MΩ
    Packing



    100Y CTN Size QTY-4 pcs/CTN
    28x28x58 cms
    NA
    NA
    100Y CTN-Weight
    18 kgs
    NA
    NA
    250M Reel Size
    30x30x30 cms
    30x30x30 cms
    30x30x30 cms
    250M Reel Weight
    12 kgs
    12 kgs
    24 kgs
    305M Reel Size
    30x30x30 cms
    30x30x30 cms
    NA
    305M Reel Weight
    16 kgs
    16 kgs
    NA
    500M Reel Size
    40x40x30 cms
    40x40x30 cms
    NA
    500M Reel Weight
    24 kgs
    24 kgs
    NA



    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
