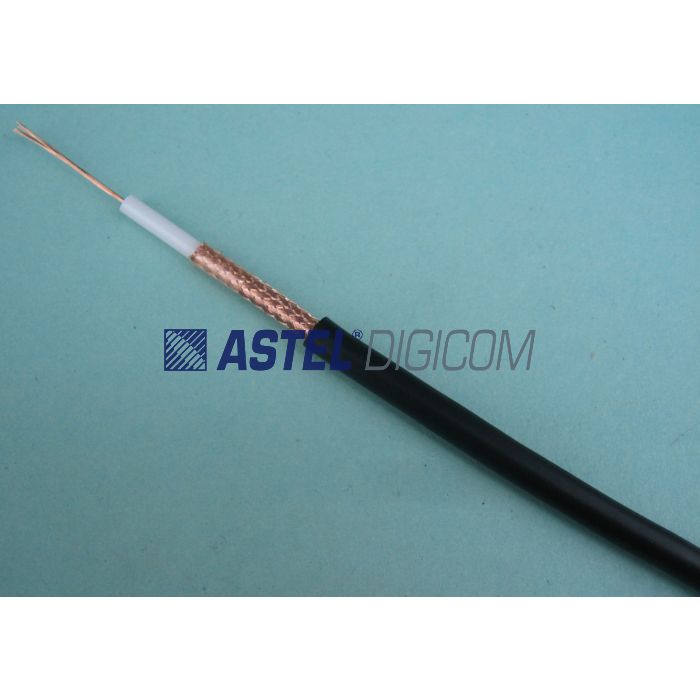

RG-59 (RG59) Flexible Full Copper Series for Lifts and Elevator

AED 425.00
In stock
Product Model
CC5995CBV
ASTEL RG-59 Lift Monitor cables-Copper Seriesare designed and manufactured for Ultra flexibility requirements of CCTV Cameras in Elevator applications.
Mian Features

1) ASTEL RG-59(RG59) Lift Monitor cables-Copper Series are designed and manufactured for Ultra flexibility requirements of CCTV Cameras in Elevator applications.
2) ASTEL RG-59(RG59) Model CC5995CBV has STRANDED COPPER construction with Foam PE and Ultra Flexible PVC Jacket, for repeated bending in Elevators application.
3) ASTEL RG-59 Model CT5995CBV has TINSEL COPPER CENTER which provides extra tensile strength for longer runs in Elevators. With Solid PE and Ultra Flexible PVC Jacket, this model is ideally suited for Elevator surveillance application.



More Information
Technical specification
Model Product CC5995CBV CT5995CBV
Inner Conductor Stranded Bare Copper Tinsel 25x1
Dielectric Foam PE Solid PE
1st Shield Bare Copper Braid Bare Copper Braid
2nd Shield NA NA
Braid Coverage 95% Coverage 95% Coverage
3rd Shielding NA NA
4th Shielding NA NA
Jacket Ultra Flex PVC Ultra Flex PVC
ROHS Compliance NO NO
Construction
Center Conductor Diameter 7x0.254 mm (7x30AWG) 7x0.254mm (7x30AWG)
Foam PE 3.70±0.10 mm 3.70±0.10 mm
1st Shield 128x0.12, OD-4.47mm 128x0.12, OD-4.47mm
2nd Shield NA NA
3rd Shield NA NA
4th Shielding NA NA
Jacket Material FR-PVC FR-PVC
Jacket 6.10 mm 6.10 mm
Jelly (For Corrosion Protection) NO NO
Electric Specifications
Nominal DCR @ 20 deg C
Inner Conductor 54.00 ohms/KM 56.00 ohms/KM
Outer Conductor 17.00 ohms/KM 17.00 ohms/KM
Nominal Capacitance 53.0 pf 53.0 pf
Impedance 75±3 ohms 75±3 ohms
Return Loss ≥20 dB ≥22 dB
Propagation Velocity Ratio 80% 80%
Insulation Resistance ≥2000MΩ ≥2000MΩ
Packing
100Y-CTN Size
QTY-4 PCS/CTN
NA NA
100Y-CTN-Weight NA NA
250M Reel Size 30x30x30 cms 30x30x30 cms
250M Reel Weight 14 Kgs 14 Kgs
305M Reel Size NA NA
305M Reel Weight NA NA
500M Reel Size NA NA
500M Reel Weight NA NA



Disclaimer
Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
