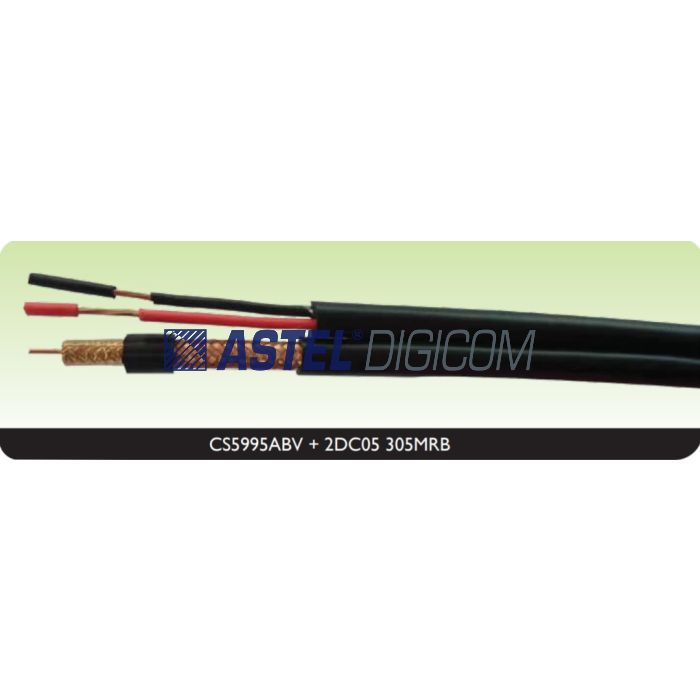

RG-59 with Power Copper Series

AED 375.00
In stock
Product Model
CU5997ABV+2DC05, CU5997ABV+2DC10, CU5997ABV+2BC05

Main Features

1) ASTEL RG-59 with Power Copper Series cables are designed and manufactured to meet the increasing demands of CCTV Cameras and surveillance applications.
2) ASTEL RG-59 with Power Copper Series allows installers to run both the video and power to security cameras using a single cable run.
3) ASTEL RG-59 with Power Copper Series has been designed for excellent LFR, high reli-ability, high shielding and low video signal attenuation. ASTEL has added Low Smoke Zero Halogen Model to comply with IEC 60332 standards.

Main Features

1) ASTEL RG-59 with Power Copper Series cables are designed and manufactured to meet the increasing demands of CCTV Cameras and surveillance applications.
2) ASTEL RG-59 with Power Copper Series allows installers to run both the video and power to security cameras using a single cable run.
3) ASTEL RG-59 with Power Copper Series has been designed for excellent LFR, high reli-ability, high shielding and low video signal attenuation. ASTEL has added Low Smoke Zero Halogen Model to comply with IEC 60332 standards.
More Information
Technical specification
Model Product
CU5997ABV +
2DC05-305MRB
CU5997ABV +
2DC10-305MRB
CU5997ABV +
2BC05-305MRB
Inner Conductor
Copper Solid
Copper Solid
Copper Solid
Braid Material
CCA Wire
CCA Wire
Copper
Dielectric
Foam PE
Foam PE
Foam PE
1st Shield
CCA Foil
CCA Foil
CCA Foil
2nd Shield
CCA Wire
CCA Wire
CCA Wire
2nd Shield Braiding
97% Coverage
97% Coverage
97% Coverage
3rd Shielding
NA
NA
NA
4th Shielding
NA
NA
NA
Jacket
PVC
PVC
PVC
2Cx Power Cable
YES
YES
YES
Power Conductor
CCA
CCA
BC (COPPER)
Power Conductor Area
2x0.5 mm2
2x1.00 mm2
2x0.50 mm2
Power Conductor AWG
20 AWG
17 AWG
20 AWG
Dimensions



Center Conductor Diameter
0.81 mm
0.81 mm
0.81 mm
Foam PE
3.66 mm
3.66 mm
3.66 mm
1st Shield
3.82 mm
3.82 mm
3.82 mm
2nd Shield Braiding
4.45 mm
4.45 mm
4.45 mm
3rd Shielding
NA
NA
NA
4th Shielding
NA
NA
NA
Jacket
6.10 mm
6.10 mm
6.10 mm
Jelly (For Corrosion Protection)
NA
NA
NA
Power Conductor



Construction
10x0.254
20x0.254
10x0.254
PVC Insulation Dia
1.70 mm
1.80 mm
1.70 mm
Jacket Dia
4.40 mm
4.40 mm
4.40 mm
Electric Specifications



Nominal DCR @ 20 deg C



Inner Conductor
33.5 ohms/KM
33.5 ohms/KM
33.5 ohms/KM
Outer Conductor
21.2 ohms/KM
21.2 ohms/KM
21.2 ohms/KM
Nominal Capacitance
53.0 pf
53.0 pf
53.0 pf
Impedance
75±3 ohms
75±3 ohms
75±3 ohms
Return Loss 5-1000 MHz
≥20 dB
≥20 dB
≥20 dB
Propagation Velocity Ratio
82%
82%
82%
Power Conductor and Jacket Spark Test
2500 V
2500 V
2500 V
Packing



100Y Reel- 4 PCS PER CTN-Size
31x32x61 cms
NA
NA
100Y-Reel- 4 PCS PER CTN-Weight
25 kgs
NA
NA
305M Reel Size (cms)
36x36x30 cms
36x36x30 cms
36x36x30 cms
305M Reel Weight (kgs)
19 kgs
21 kgs
23 Kgs



Disclaimer
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
