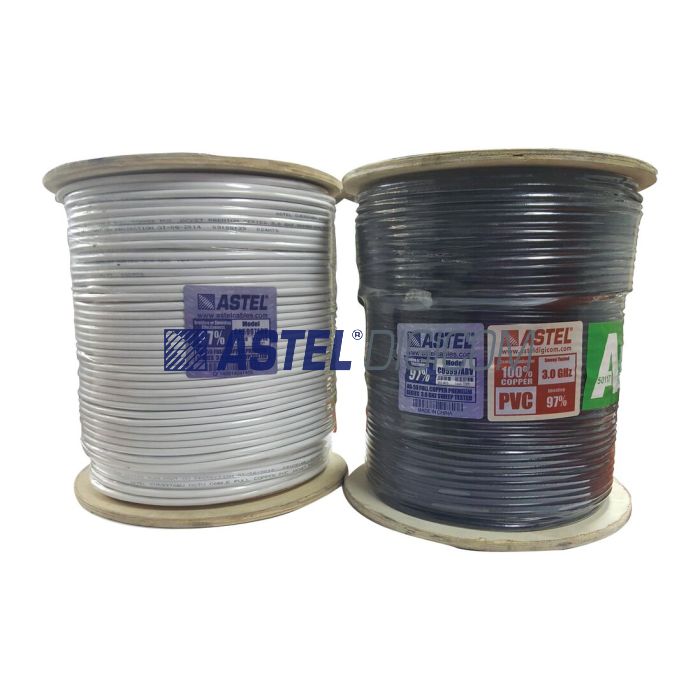

ASTEL RG-59 Copper Series Coaxial Cable with 97% Shielding
ASTEL RG-59 Copper Series 97% Shield Coaxial Cable is designed for professional CCTV surveillance, CATV and video signal distribution installations. Featuring a 0.81mm solid copper centre conductor, foam polyethylene dielectric, aluminium-polyester foil shielding and 97% copper-clad aluminium (CCA) braid coverage, the cable provides a shielded transmission path for 75 Ohm coaxial applications.
Available in PVC (CU5997ABV) and Low Smoke Zero Halogen (LSZH) (CU5997ABZ) jacket options, the cable is suitable for AHD, HD-TVI, HD-CVI and other compatible coaxial video systems. Its 6.10mm nominal outer diameter and 75 ± 3 Ohm characteristic impedance make it suitable for professional security and video distribution cabling.
Key Features
-
Product series: ASTEL RG-59 Copper Series – 97% Shield
-
Product models: CU5997ABV (PVC) and CU5997ABZ (LSZH)
-
75 Ohm coaxial cable for CCTV, CATV and antenna applications
-
Solid copper centre conductor
-
Centre conductor diameter: 0.81mm
-
Foam PE dielectric with 3.66mm diameter
-
First shield: Aluminium-polyester (AP) foil
-
Second shield: Copper-clad aluminium (CCA) wire braid
-
Braid shielding coverage: 97%
-
PVC and Low Smoke Zero Halogen (LSZH) jacket options
-
Nominal outer jacket diameter: 6.10mm
-
Characteristic impedance: 75 ± 3Ω
-
Nominal capacitance: 53.0pF (as published)
-
Propagation velocity ratio: 82%
-
Inner conductor DC resistance at 20°C: 33.5Ω/km
-
Outer conductor DC resistance at 20°C: 21.2Ω/km
-
Return loss (5–1000MHz): ≥20dB for CU5997ABV
-
Return loss (5–1000MHz): ≥22dB for CU5997ABZ
-
LSZH model specified with RoHS compliance
-
Manufacturer describes LSZH model in relation to IEC 60332 requirements
-
Designed for low-frequency response and low video signal attenuation
-
Compatible with AHD, HD, HD-TVI and HD-CVI CCTV applications
-
Suitable for satellite, cable TV and antenna reception systems
-
Available reel lengths include 250m, 305m and 500m
