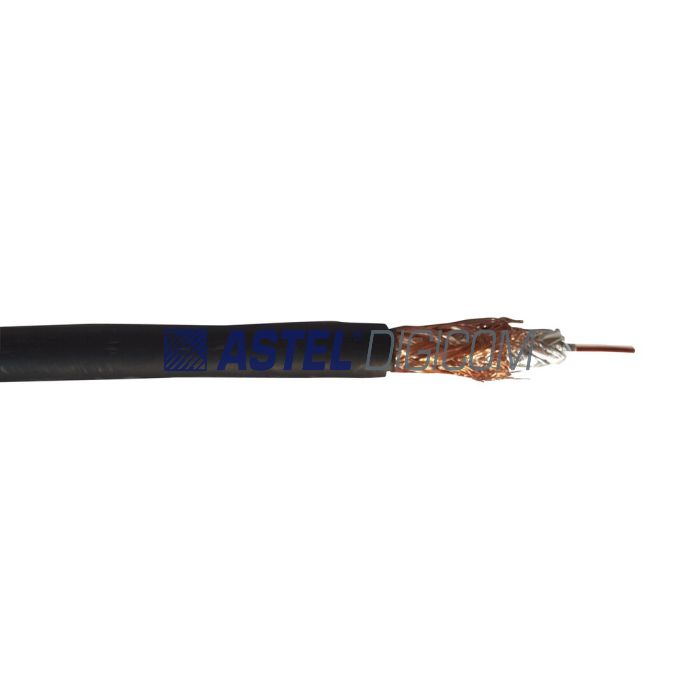

RG-59 Copper 97% Shield LSZH Series

AED 225.00
In stock
Product Model
CU5997ABZ
ASTEL LSZH (Low Smoke Zero Halogen) series of RG-59/RG-6 cables are latest addition to our range of coaxial cables. In Fire related incidents, smoke emission from hazardous materials is the biggest cause of loss of life.Our LSZH series feature LSZH Jacket which comply with Low Smoke Zero Halogen and ROHS Standards of European Directive 2011/65/EU.
ASTEL LSZH (Low Smoke Zero Halogen) series of RG-59/RG-6 cables are latest addition to our range of coaxial cables. In Fire related incidents, smoke emission from hazardous materials is the biggest cause of loss of life.Our LSZH series feature LSZH Jacket which comply with Low Smoke Zero Halogen and ROHS Standards of European Directive 2011/65/EU.
More Information
Technical specification
Main Features

1) ASTEL LSZH (Low Smoke Zero Halogen) series of RG-59/RG-6/RG-11 cables are latest addition to our range of coaxial cables. In Fire related incidents, smoke emission from hazardous materials is the biggest cause of loss of life.Our LSZH series feature LSZH Jacket which comply with Low Smoke Zero Halogen and ROHS Standards of European Directive 2011/65/EU.

2) ASTEL RG-59/RG-6 Copper Series cables are perfectly matched for AHD, HD, HD-TVI, HD-CVI High Resolution Cameras.

3) ASTEL RG-6/RG11 Trishield and Quadshield cables are used in systems which require high shielding from inductive sources and GSM-LTE signals.

Model Product
CU5997ABZ
CU697ABZ
Inner Conductor
Copper Solid
Bare Copper
Dielectric
Foam PE
Foam PE
1st Shield
Bonded AP Foil
Bonded AP Foil
2nd Shield
CCA Foil
CCA Braiding
Braid Coverage
97%
97%
3rd Shielding
NA
NA
4th Shielding
NA
NA
Jacket
LSZH
LSZH
ROHS Compliance
YES
YES
Construction


Center Conductor Diameter
0.81 mm
1.02 mm
Foam PE
3.66 mm
4.57 mm
1st Shield
3.82 mm
4.76 mm
2nd Shield
4.45 mm
5.38 mm
3rd Shield
NA
NA
4th Shielding
NA
NA
Jacket Material
LSZH
LSZH
Jacket
6.10 mm
6.95 mm
Jelly (For Corrosion Protection)
NO
NO
Electric Specifications


Nominal DCR @ 20 deg C


Inner Conductor
35.5 ohms/KM
23.71 ohms/KM
Outer Conductor
21.2 ohms/KM
15.0 ohms/KM
Nominal Capacitance
53.0 pf
53.0 pf
Impedance
75±3 ohms
75±3 ohms
Return Loss
≥22 dB
≥22 dB
Propagation Velocity Ratio
82%
82%
Power Conductor and Jacket
Spark Test
2500 V
2500 V
Insulation Resistance
≥2000MΩ
≥2000MΩ
Packing


100Y-CTN Size
QTY-4 PCS/CTN
NA
28x28x58
100Y-CTN-Weight
NA
19 kgs
250M Reel Size
30x30x30 cms
30x30x30 cms
250M Reel Weight
11 kgs
12 kgs
305M Reel Size
30x30x30 cms
30x30x30 cms
305M Reel Weight
14 kgs
16 kgs
500M Reel Size
40x40x30 cms
40x40x30 cms
500M Reel Weight
22 kgs
24 kgs
