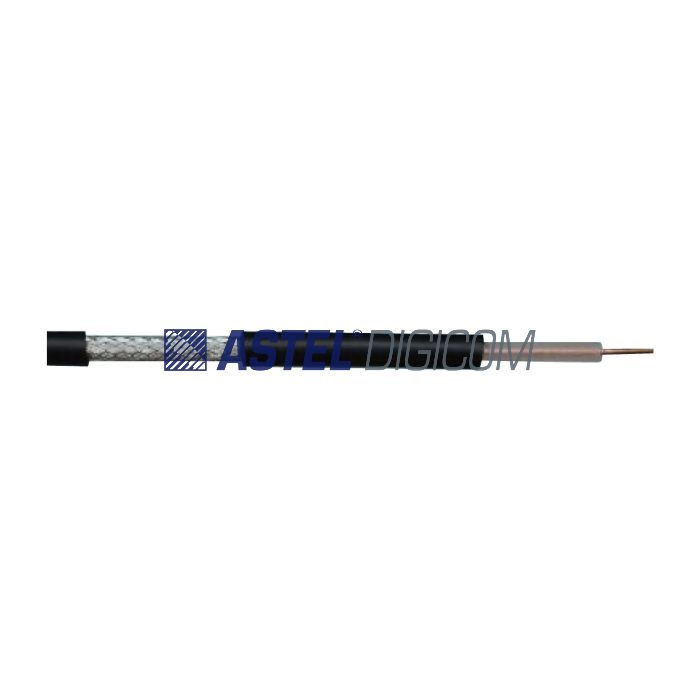

Cable RG-58 Series Copper Center with Copper Braid

AED 450.00
In stock
Product Model
RG58U250MRB

    • ASTEL 50 Ohms cables are Flexible, High Performance, Low loss communication cables designed for use in all kinds of wireless systems. ASTEL Cables are manufactured in ISO 9002 approved manufacturing plant. These cables are manufactured with latest manufacturing technologies resulting in:

    1. High shielding effectiveness
    2. Low Intrinsic Noise
    3. Low Structural Return Loss
    4. Higher peak power rating

    ASTEL 50 Ohms cables are Flexible, High Performance, Low loss communication cables designed for use in all kinds of wireless systems. ASTEL Cables are manufactured in ISO 9002 approved manufacturing plant. These cables are manufactured with latest manufacturing technologies resulting in:

    1. High shielding effectiveness
    2. Low Intrinsic Noise
    3. Low Structural Return Loss
    4. Higher peak power rating
    More Information
    Technical specification

    Applications:

    1. Mobile Phone Tower
    2. GSM Towers
    3. Cellular Base station
    4. PCS, Paging
    5. 2 way Radio
    6. WLL
    7. Wireless Data
    8. WIFI, WIMAX
    9. Wireless Telemetry
    10. Transmission Antenna
    11. Microwave Antenna
    Parameter RG-58/U (RG58U) RG-58LL (RG58LL)
    Inner Conductor Stranded Bare Copper Solid Bare Copper
    Dielectric Solid PE Solid PE
    Ist Outer Conductor NA Sealed AP Tape
    Ist Outer Conductor NA 3.05 mm
    Braid Bare Copper Bare Copper
    Braid Coverage 95% Coverage 95% Coverage
    Braid Structure 16x7x0.12mm 16x7x0.12mm
    Jacket Material PVC PVC
    Construction
    Center Conductor Diameter 0.90 mm 0.81 mm
      (19x0.18mm)
      19x33 AWG
    Foam PE 2.95 mm 2.90 mm
    Ist shield NA 3.05 mm
    Jacket Diameter 4.95 mm 4.95 mm
    Nominal DCR @ 20 deg C
    Inner Conductor 38 ohms/KM 32.80 ohms/KM
    Outer Conductor 18.00 ohms/KM 18.00 ohms/KM
    Nominal Capacitance
    Impedance 50±3 ohms 50±3 ohms
    Return Loss ≥20 dB ≥22 dB
    Propagation Velocity Ratio 66% 66%
    Insulation Resistance ≥2000 MΩ ≥2000 MΩ
    Min Bending Radius (Single) 14.5 cms 15.0 cms
    Temp Range Operation -40°C to +70°C -40°C to +70°C
    Temp Range Installation -20°C to +70°C -20°C to +70°C
    Packing
    250M Reel Size 26x26x23 cms 26x26x23 cms
    250M Reel Weight 11 KGs 11 KGs
