RG-316 Series

AED 0.00
In stock
Product Model
RG-316U-PTFE

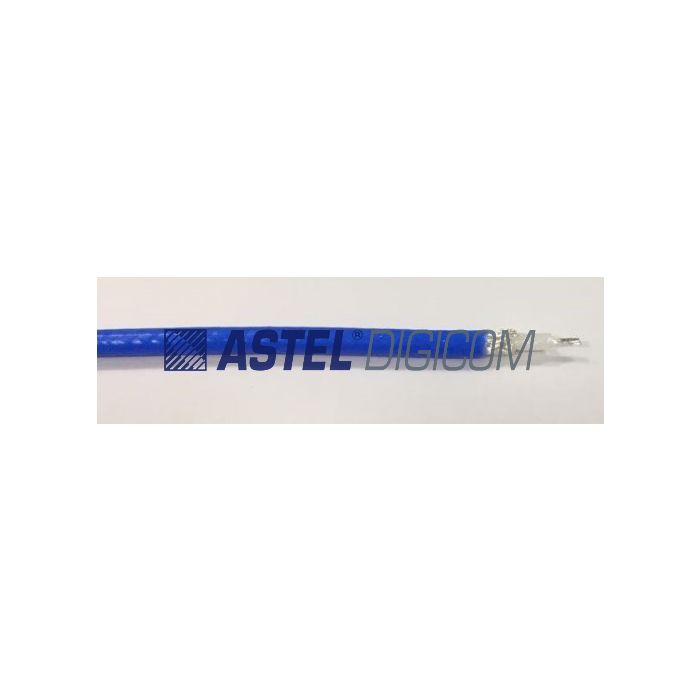

ASTEL Silver Series RF cables are Flexible, high performance, silved plated conductor cables designed for use in all kinds of wireless systems. They are used in RF Microcircuit interconnection assemblies, antenna and circuit interconnections etc.



These cables are manufactured with Silver plated Conductor, FEP or PTFE Dielectric and Jacket to withstand high temperature.

ASTEL Silver Series RF cables are Flexible, high performance, silved plated conductor cables designed for use in all kinds of wireless systems. They are used in RF Microcircuit interconnection assemblies, antenna and circuit interconnections etc.



These cables are manufactured with Silver plated Conductor, FEP or PTFE Dielectric and Jacket to withstand high temperature.



Main features are:

  • Stable VSWR
  • Low Contact Resistance
  • High Operation Frequency range
More Information
Technical specification
Parameter   RG-316U-PTFE
Inner Conductor   Stranded Silver Plated Copper
Dielectric   FEP (Fluorinated Ethylene Propylene)

(Ist outer Conductor) Braid   Silver Plated Copper
Braid Coverage   90% Coverage
Braid Structure   16x5x0.10mm
Jacket Material and Color   PTFE, Blue, Transparent Clear
Construction
Center Conductor Structure   7x0.175 mm
Center Conductor Dia   0.51 mm
Dielectric (PTFE)   1.52 mm
Ist shield   1.95 mm
Jacket Diameter   2.50 mm
Nominal DCR @ 20 deg C
Inner Conductor   281 Ω/ KM
Impedance   50±3 ohms
Nominal Capacitance   96 pf/m
Dielectric Voltage Withstand   2000 Vrms
Flame Retardent (UL)   VW-1 Standard
Propagation Velocity Ratio   90%
Insulation Resistance   ≥3000 MΩ
Min Bending Radius (Single)   <7 mm
Temp Range Operation   -55°C to +200°C
Temp Range Installation   -55°C to +200°C
VSWR    0.3G-3.0G≤1.30, 3.0G-6.0G ≤1.40
Dielectric Withstand Voltage    2.5 KV
Max operating Frequency    6 GHz
Packing
200M Coil Size   25x25x23 cms
200M Coil Weight   4 KGs
