RG-179 Series

AED 0.00
In stock
Product Model
RG-179, RG-179U-FEP

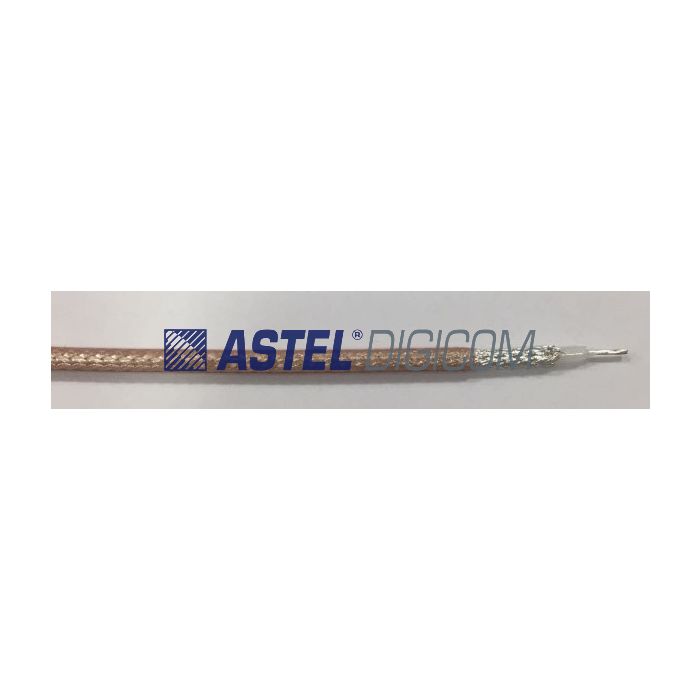

ASTEL Silver Series RF cables are Flexible, high performance, silved plated conductor cables designed for use in all kinds of wireless systems. They are used in RF Microcircuit interconnection assemblies, antenna and circuit interconnections etc.

These cables are manufactured with Silver plated Conductor, FEP or PTFE Dielectric and Jacket to withstand high temperature.

ASTEL Silver Series RF cables are Flexible, high performance, silved plated conductor cables designed for use in all kinds of wireless systems. They are used in RF Microcircuit interconnection assemblies, antenna and circuit interconnections etc.



These cables are manufactured with Silver plated Conductor, FEP or PTFE Dielectric and Jacket to withstand high temperature.



Main features are:

  • Stable VSWR
  • Low Contact Resistance
  • High Operation Frequency range
More Information
Technical specification
Parameter   RG-179U-FEP
Inner Conductor   Silver Plated CCS
Dielectric   FEP (Fluoro Ethylene Polypropylene)

(Ist outer Conductor) Braid   Silver Plated Copper
Braid Coverage   90% Coverage
Braid Structure   16x5x0.10mm
Jacket Material and Color   FEP, Tan Brown, Transparent Brown
Construction
Center Conductor Structure   7x0.102 mm
Center Conductor Dia    0.30 mm
Dielectric (FEP)   1.56 mm
Ist shield   1.98 mm
Jacket Diameter   2.50 mm
Nominal DCR @ 20 deg C
Inner Conductor   828 ohms/KM

Nominal Capacitance    64.0 pf/m
Impedance   75±3 ohms
Flame Retardent (UL)   VW-1 Standard
Propagation Velocity Ratio   69%
Insulation Resistance   ≥3000 MΩ
Min Bending Radius (Single)   <7 mm
Temp Range Operation   -55°C to +105°C
Temp Range Installation   -55°C to +105°C
VSWR    0.3G-3.0G≤1.30, 3.0G-6.0G ≤1.40
Dielectric Withstand Votlage    2.5 KV
Operating Frequency Range    6 GHz
Packing
200M Coil Size   25x25x23 cms
200M Coil Weight   4 KGs
