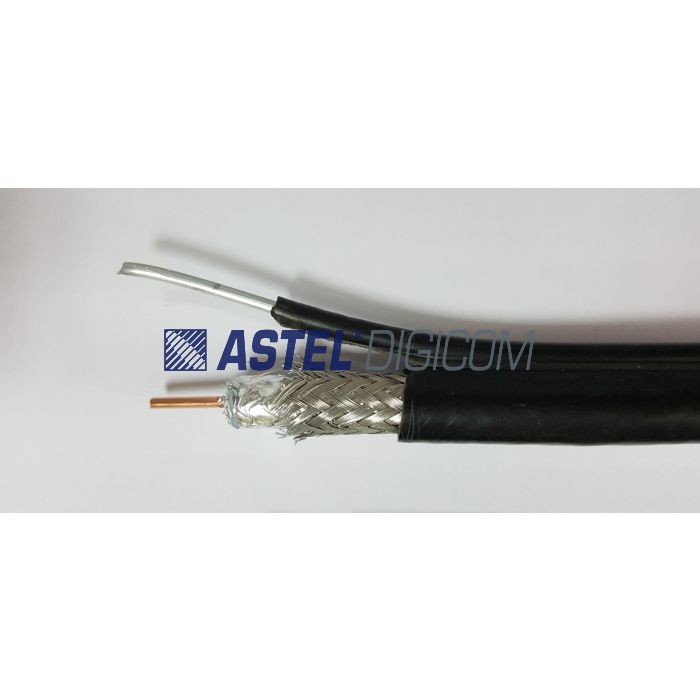

RG-11 CCS 97% BRAID WITH MESSENGER

AED 0.00
In stock
Product Model
CS1197BVM
ASTEL RG-11 cables are designed and manufactured to meet the increasing demands of Cable TV, MATV & SMATV reception and distribution. RG-11 Cable with Messenger model has a messenger support for installation of cables on poles. GI Steel Messenger can bear the weight of the cable to reduce slack and also support on tying the cable on poles.
ASTEL RG-11 cables are designed and manufactured to meet the increasing demands of Cable TV, MATV & SMATV reception and distribution. ASTEL Cables are manufactured in ISO 9002 approved plant. Manufactured with high quality raw materials and Nitrogen Gas Injection Foaming plant, ASTEL cables feature Low structural and intrinsic noise, high shielding effectiveness and are made to withstand harsh outdoor hot and humid environments. RG-11 Cable with Messenger model has a messenger support for installation of cables on poles. GI Steel Messenger can bear the weight of the cable to reduce slack and also support on tying the cable on poles.
More Information
Technical specification
Model Product CS1197BVM
Inner Conductor Copper Clad Steel
Braid Material Al-Mg Alloy Wire
Braid Coverage 97% Coverage
Construction
Centre Conductor Diameter 1.63 mm
Foam PE 7.11 mm
Sealed AP Tape 7.30 mm
Aluminum Braiding 7.90 mm
Aluminum Foil NA
Jacket Material PVC
Jacket 10.10 mm
Jelly (For Corrosion Protection) NO
Messenger (for BVM) Solid GI Steel
Messenger Diameter 1.82mm/0.072”
Electric Specifications
Nominal DCR @ 20 deg C
Inner conductor 41 ohms/KM
Outer Conductor 21.50 ohms/KM
Nominal Capacitance 53.0 pf
Propagation Velocity Ratio 75 3 ohms
Packing 85%
100Y Reel-Size 30x30x30 cm
100Y Reel-Weight 12 kgs
305M Reel-Size 42x42x35
305M Reel-Weight 28 kgs (For BV)
305M Reel-Weight NA



Disclaimer
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
