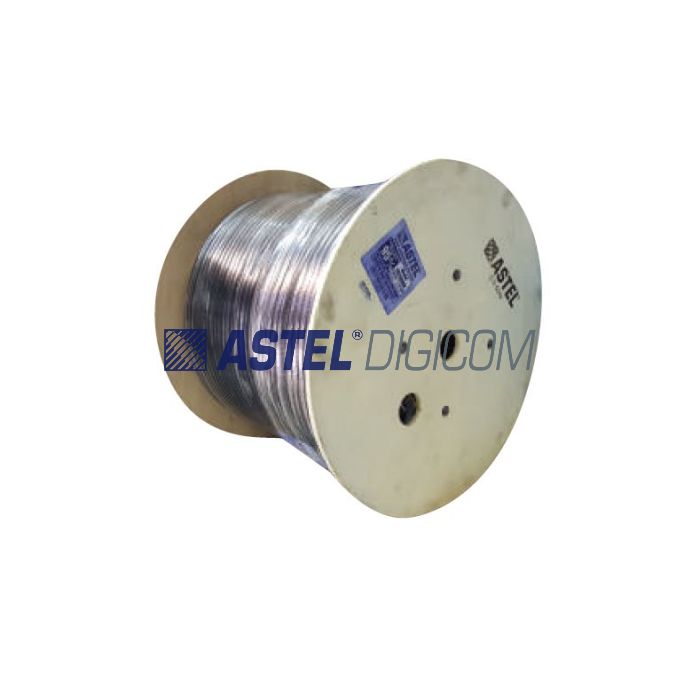

Coaxial Cable RG-11 CCS 95% BRAID 75 Ohms

AED 425.00
In stock
Product Model
CS1195BV305MRB
ASTEL Cables are manufactured in ISO 9002 approved plant. Manufactured with high quality raw materials and Nitrogen Gas Injection Foaming plant, ASTEL cables feature Low structural and intrinsic noise, high shielding effectiveness and are made to withstand harsh outdoor hot and humid environments.
ASTEL RG-11 cables are designed and manufactured to meet the increasing demands of Cable TV, MATV & SMATV reception and distribution. ASTEL Cables are manufactured in ISO 9002 approved plant. Manufactured with high quality raw materials and Nitrogen Gas Injection Foaming plant, ASTEL cables feature Low structural and intrinsic noise, high shielding effectiveness and are made to withstand harsh outdoor hot and humid environments. Newer models with Trishield have been added to comply with Class A+ shielding requirements. ASTEL RG-11 range also features Low smoke Zero Halogen model to comply with IEC 60332 standards.
More Information
Technical specification
Model Product
CS1195BV
Inner Conductor
Copper Clad Steel
Braid Material
Al-Mg Alloy Wire
Braid Coverage
95% Coverage
Construction

Centre Conductor Diameter
1.63±0.01 mm
Foam PE
7.11±0.10 mm
Sealed AP Tape
7.30±0.10 mm
Aluminum Braiding
7.80±0.10 mm
Aluminum Foil
NA
Jacket Material
PVC
Jacket
10.03±0.10 mm
Jelly (For Corrosion Protection)
NO
Messenger (for BVM)
NA
Messenger Diameter
NA
Electric Specifications

Nominal DCR @ 20 deg C

Inner conductor
≤34 ohms/KM
Outer Conductor
≤23 ohms/KM
Nominal Capacitance
53.0 pf
Propagation Velocity Ratio
75±3 ohms
Packing
85%
305M Reel-Size
42x42x35
305M Reel-Weight
29.6 kgs
305M Reel-Weight
NA



Disclaimer
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
