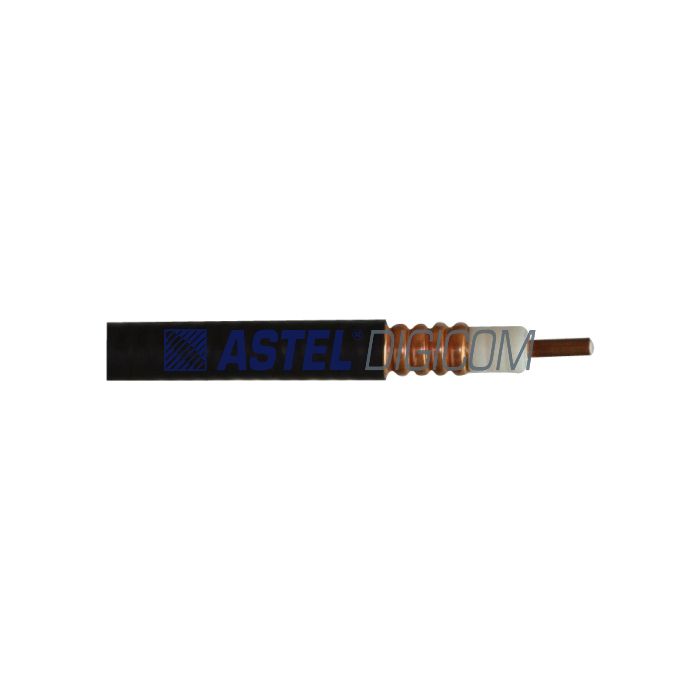

RF Cable 1/2 Inch Super flex 50 Ohms Low PIM

AED 4,150.00
In stock
Product Model
RFC12SFCCAPE500MRB

    • Astel RF Feeder cables offers excellent performance for VHF/UHF/GSM/3G/4G transmission and distribution. Astel RF Cables feature Low attenuation, Low VSWR and High Power Rating, Low PIM (Phase Intermodulation) and excellent environmental and mechanical performance.

    Main Features:

    1. Low Attenuation
    2. Low VSWR
    3. High Power Rating
    4. Excellent environmental performance.
    5. Excellent Mechanical performance.
    6. Widely used in wireless communication base station.
    7. Low PIM

    Astel RF Feeder cables offers excellent performance for VHF/UHF/GSM/3G/4G transmission and distribution. Astel RF Cables feature Low attenuation, Low VSWR and High Power Rating, Low PIM (Phase Intermodulation) and excellent environmental and mechanical performance.

    More Information
    Technical specification

    Astel RF Feeder cables offers excellent performance for VHF/UHF/GSM/3G/4G transmission and distribution. Astel RF Cables feature Low attenuation, Low VSWR and High Power Rating, Low PIM (Phase Intermodulation) and excellent environmental and mechanical performance.

    Main Features:

    1. Low Attenuation
    2. Low VSWR
    3. High Power Rating
    4. Excellent environmental performance.
    5. Excellent Mechanical performance.
    6. Widely used in wireless communication base station.
    7. Low PIM

    Technical Specifications:

    Parameter
    RFC12SFCCAPE500MRB / RFC12SFCCALZ200MCB
    Inner Conductor
    Solid CCA
    Dielectric
    Foamed PE
    Ist Outer Conductor
    Spiral Copper Tube Longitudinally welded
    Ist Outer Conductor
    11.95±0.3mm
    Jacket Material
    PE
    Construction

    Center Conductor Diameter
    3.60±0.05
    Foam PE
    9.70±0.40mm
    Ist shield
    11.95±0.3mm
    Jacket Diameter
    13.40±0.3mm
    Nominal DCR @ 20 deg C

    Inner Conductor

    Outer Conductor

    Nominal Capacitance
    82.0 pf/M
    Impedance
    50±2 ohms
    Return Loss
    ≥ 23 dB VSWR 1.15
    Propagation Velocity Ratio
    81%
    Insulation Resistance
    ≥10000 MΩ*KM
    DC Break Down Voltage
    2500 V
    Test Voltage
    5000 V
    Tensile Strength
    ≤ 800N
    Min Bending Radius (Repeated)
    32 mm
    Min Bending Radius (Single)
    25 mm
    Temp Range Operation
    - 40°C to +70°C
    Temp Range Installation
    -20°C to +70°C
    Packing

    500M Reel Weight
    104 Kgs
