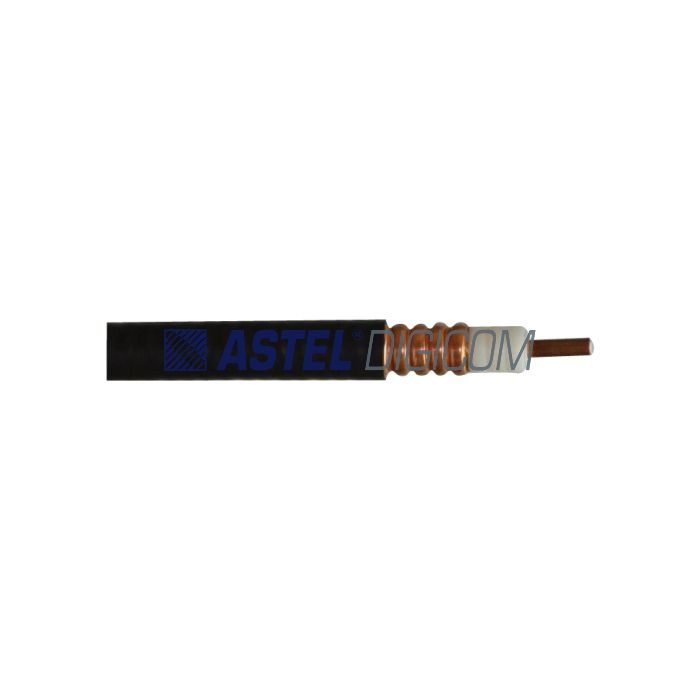

RF Cable 1/2 Inch Flex Feeder

AED4,450.00
In stock
Product Model
RFC12FFCCAPE500MRB

Astel RF Feeder cables offers excellent performance for VHF/UHF/GSM/3G/4G transmission and distribution. Astel RF Cables feature Low attenuation, Low VSWR and High Power Rating, High PIM (Phase Intermodulation) and excellent environmental and mechanical performance.

Main Features:

  1. Low Attenuation
  2. Low VSWR
  3. High Power Rating
  4. Excellent environmental performance.
  5. Excellent Mechanical performance.
  6. Widely used in wireless communication base station.

Astel RF Feeder cables offers excellent performance for VHF/UHF/GSM/3G/4G transmission and distribution. Astel RF Cables feature Low attenuation, Low VSWR and High Power Rating, High PIM (Phase Intermodulation) and excellent environmental and mechanical performance.

Main Features:

  1. Low Attenuation
  2. Low VSWR
  3. High Power Rating
  4. Excellent environmental performance.
  5. Excellent Mechanical performance.
  6. Widely used in wireless communication base station.
More Information
Technical specification
Parameter RFC12FFCCAPE500MRB / RFC12FFCCALZ200MCB
Inner Conductor Solid CCA
Dielectric Foamed PE
Ist Outer Conductor Spiral Copper Tube Longitudinally welded
Ist Outer Conductor 13.80±0.3mm
Jacket Material PE (RoHS) / LSZH (RoHS)
Construction
Center Conductor Diameter 4.80±0.05
Foam PE 12.40mm
Ist shield 13.80±0.3mm
Jacket Diameter 15.80±0.3mm
Nominal DCR @ 20 deg C
Inner Conductor 1.62 Ohms/KM
Outer Conductor 3.04 Ohms/KM
Nominal Capacitance 76.90 pf/M
Impedance 50±3 ohms
Return Loss ≥23 dB VSWR 1.15
Propagation Velocity Ratio 88%
Insulation Resistance ≥10000 MΩ*KM
DC Break Down Voltage 4000V
Test Voltage 8000V
Tensile Strength ≤ 1130 N
Min Bending Radius (Repeated) 125 mm
Min Bending Radius (Single) 70 mm
Temp Range Operation -40 °C to +70 °C
Temp Range Installation -20 °C to +70 °C
Packing
500M Reel Weight 118 Kgs
