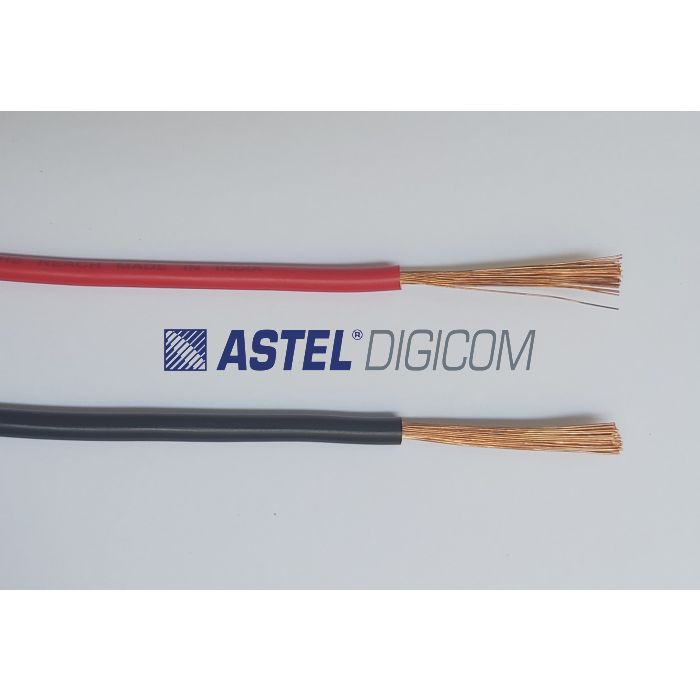

PVC Insulated Building Wire BS6004 H05V-U / H07V-U/H07V-R Application:Suitable for power and lighting circuits and building wire. Suitable for use in semi-flush exposed conduits and in closed installation ducts. Ideal for internal wiring of appliance. Single core PVC insulated unsheathed type NYA Technical specfications
PVC Insulated Building Wire BS6004 H05V-U / H07V-U/H07V-R Application:Suitable for power and lighting circuits and building wire. Suitable for use in semi-flush exposed conduits and in closed installation ducts. Ideal for internal wiring of appliance. Single core PVC insulated unsheathed type NYA Technical specfications
Suitable for power and lighting circuits and building wire.
Suitable for use in semi-flush exposed conduits and in closed installation ducts.
Ideal for internal wiring of appliance.
Single core PVC insulated unsheathed type NYA
Technical specfications:
Technical Parameter
Specification
Conductor
Class 1 Plain annealed copper conductor for 1mm2 to 2.5mm2
Class 2 Stranded class 2 Copper Conductor complying with BS EN 60228 HD383 for 2.5mm2 to 630mm2
Insulation
PVC
Insulation color
Red, Yellow, Black, , Blue, Brown, Green/Yellow, Grey, White
Voltage rating
1mm2-300/500V
1.5mm2 to 630mm2- 450/750V
Temperature Rating
-15°C to +70°C
Minimum Bending Radius
Up to 10mm2-3D
16 to 25mm2-4D
>25mm2-5D
Standards
BS6004, DIN VDE 0281-3, NFC-32-201-3
Harmonized Code
1mm2-H05V-U
1.5mm2 to 2.5mm2- H07V-U
2.5mm2 to 630mm2-H07V-R
Technical specifications (Dimensions):
No of Cores x Nominal Cross Section Area (mm2)
AWG
Number of Strands
Max DCR at 20°C (Ω/Km)
Nominal thickness of insulation
mm
Normal Overall
Dia
mm
Nominal Weight (Kg/Km)
1x1.00
18
1
18.1
0.60
2.40
14
1x1.50
16
1
12.1
0.70
2.80
20
1x1.50
16
7
12.1
0.70
3.00
19
1x2.50
14
1
7.41
0.80
3.40
32
1x2.50
14
7
7.41
0.80
3.60
33
1x4.00
12
7
4.41
0.80
4.20
50
1x6.00
10
7
3.08
0.80
5.10
74
1x10.00
8
7
1.83
1.00
6.70
126
1x16.00
6
7
1.15
1.00
7.80
184
1x25.00
4
7
0.727
1.20
9.60
295
1x35.00
2
7
0.524
1.20
10.00
375
1x50.00
1
19
0.387
1.40
11.70
510
1x70.00
2/0
19
0.268
1.40
13.50
710
1x95.00
3/0
19
0.193
1.60
15.80
950
1x120.00
4/0
37
0.153
1.60
17.50
1240
1x150.00
250MCM
37
0.124
1.80
19.50
1530
1x185.00
350MCM
37
0.0991
2.00
21.30
1800
1x240.00
450MCM
37
0.0754
2.20
25.00
2500
1x300.00
61
0.0601
2.40
27.20
2990
1x400.00
61
0.0478
2.60
31.00
3860
1x500.00
61
0.0366
2.80
34.50
4900
1x630.00
91
0.0283
2.80
39.00
6370
Notes:
Size 1.5 to 150mm2: BASEC Approved
Size 1 to 4mm2- VDE approved
Size 1 to 120mm2- NF-USE approved
Technical Notes:
Table in accordance with BS EN 60228:2005 (Previously BS6360)
Correction factors (Ambient Temperature):
Ambient Temperature
45°C
50°C
55°C
60°C
65°C
70°C
75°C
Reduction factor
1.0
0.97
0.90
0.82
0.73
0.63
0.52
Correction factors (Cables grouped together or bunched together):
Number of cables in group
2
3
4
5
6
7
8
Reduction factor
0.80
0.70
0.65
0.60
0.56
0.53
0.50
