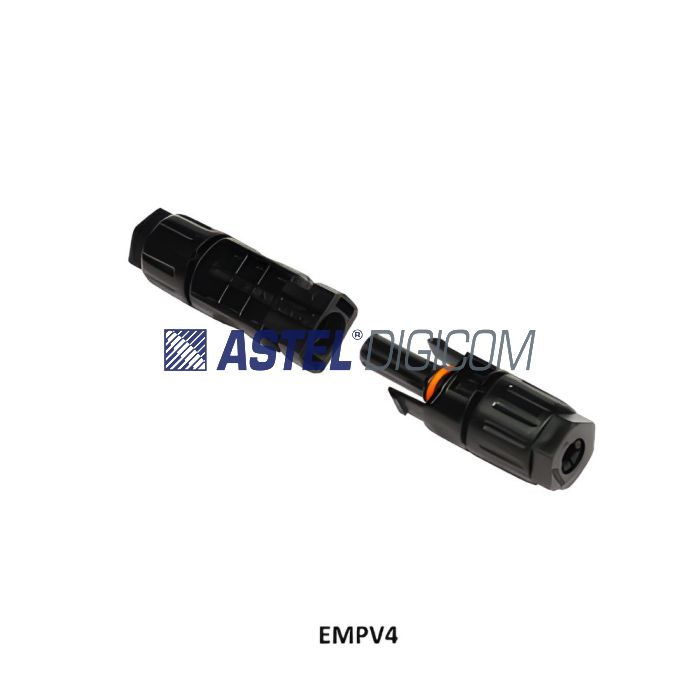

PV Solar Straight Connectors EMPV4
Elmex PV Solar Straight connectors EMPV4, EMPV4N and EMPV10N with plug and socket design are constructed using flame retardant engineering thermoplastic suitable for exposure to UV rays and for application in PV power generation system. These connectors incorporate a flexible water tight sealing conforming to IP 68 and are supplied as ‘male (plug)’ and ‘female (socket)’ types to minimize the chance of wrong connections. For proper assembly of individual male and female connectors and for proper functioning of the mated pair, it is necessary that solar cables used are TUV certified as per standard EN 50618. ‘elmex’ straight connectors are certified for PV solar 2 cables 2.5, 4.0, 6.0 and 10.0 mm size, double insulated (Insulation plus black sheath) & UV protection (as UV rays tend to damage the connection).
Elmex PV Solar Straight connectors EMPV4, EMPV4N and EMPV10N with plug and socket design are constructed using flame retardant engineering thermoplastic suitable for exposure to UV rays and for application in PV power generation system. These connectors incorporate a flexible water tight sealing conforming to IP 68 and are supplied as ‘male (plug)’ and ‘female (socket)’ types to minimize the chance of wrong connections. For proper assembly of individual male and female connectors and for proper functioning of the mated pair, it is necessary that solar cables used are TUV certified as per standard EN 50618. ‘elmex’ straight connectors are certified for PV solar 2 cables 2.5, 4.0, 6.0 and 10.0 mm size, double insulated (Insulation plus black sheath) & UV protection (as UV rays tend to damage the connection).
| Technical specification | Main Features 1) TUV Certified2) Low Contact Resistance3) Snap Fit Locking Arrangement4)Provides UV Protection (Tested for 500 hrs as per ISO 4892-2)5) IP 68 Protection when mated6) Tested as per International Standards / IEC 62852
