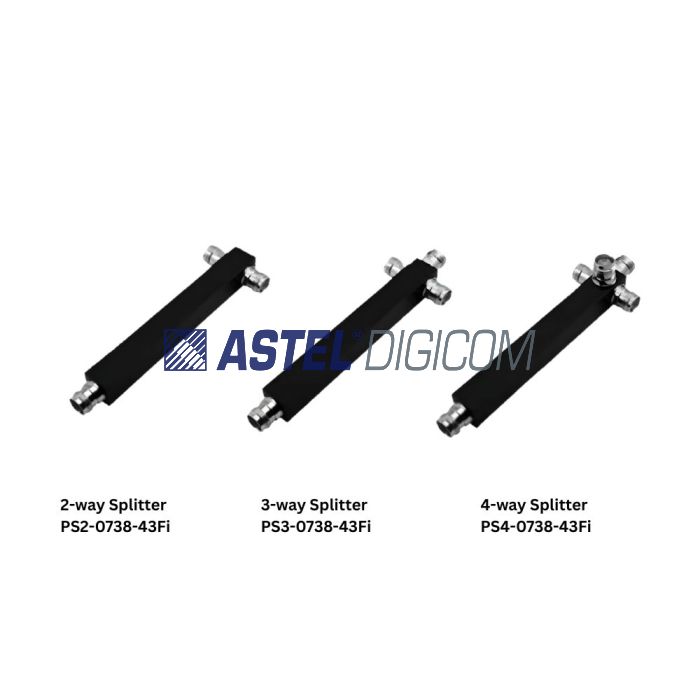

main product photo

Power Splitter Low PIM 698-3800 MHz Cavity type Mini DIN Female 4.3-10F

AED 45.00
In stock
Product Model
PSX073843Fi
    • Power Splitter is used to Split the RF Power signal in equal ratios. All the outputs carries the equal amount of divided RF signal. The split of signal depends on the number of outputs. Main advantages of Astel Power splitters are, frequency range 698 MHz-3.8 GHz, Low PIM, and low VSWR. Astel RF Power Splitters offers great vibration performance, excellent mechanical and electrical performance etc. This type is most widely used in Radio communication equipment, microwave test and ground launch systems, and electronic instruments.
    Power Splitter is used to Split the RF Power signal in equal ratios. All the outputs carries the equal amount of divided RF signal. The split of signal depends on the number of outputs. Main advantages of Astel Power splitters are, frequency range 698 MHz-3.8 GHz, Low PIM, and low VSWR. Astel RF Power Splitters offers great vibration performance, excellent mechanical and electrical performance etc. This type is most widely used in Radio communication equipment, microwave test and ground launch systems, and electronic instruments.
    More Information
    Technical specification
    Main features:

    1. Multiple-Band Frequency Ranges
    2. High Power Rating 300 Watt
    3. Low PIM, Low VSWR
    4. High Quality Cavity Type, High Reliability


    Electrical Specications:
    Parameter Specications
    Frequency Range 690-3800 MHz
    Splitter type 2 way 3 way 4 way
    Insertion Loss (dB) ≤3.1 ≤4.8 ≤6.1
    In-band Ripple (dB) ±0.3 ±0.3 ≤0.3
    Return Loss / VSWR ≤-19dB / 1.25
    PIM (IM3) < -153dBc @2×43 dBm
    Power Handling 500W
    Impedance 50 Ω
    Environmental Specications
    Parameter Specications
    Applied Environment Outdoor or Indoor, IP 65
    Relative Humidity 5% - 95%
    Operating Temperature -20 °C to + 65 °C
    Storage Temperature -40 °C to + 85 °C
    Mechanical Specications:
    Parameter Specications
    Connectors Type 4.3-10 Female
    Materials Cavity: Aluminium ; Connector; Copper
    Processing Silver Plated inner Conductor
    Net Weight 0.35 Kg 0.47 Kg 0.47 Kg
    Dimensions 213.6 x 67 x 25 233.2 x 67 x 25 233.2 x 67 x 25

    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifica-
    4. E&OE (Errors and Omissions are excepted).
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible
    for any loss, directly or indirectly caused by any error in publishing.
