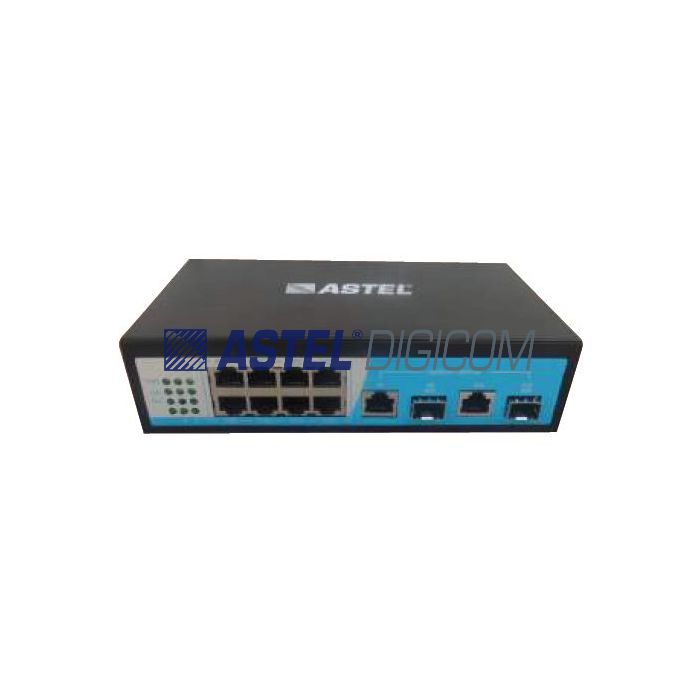

PoE SWITCH GB 10 PORT WITH SFP

AED 0.00
In stock
Product Model
AST-PoE-PSE-2F8E-PSE-AF
    • To fulfill the demand of PoE for network applications with Gigabit speed transmission, the ASTEL PoE Gigabit Ethernet Switch AST-POE-PSE-2F8E-XX is an ideal solution. Each 10/100/1000Mbps port features IEEE 802.3af Power over Ethernet (PoE) that combines up to 120 Watts power output and data per port over one Cat.5E / 6 Ethernet cable, with totally 120 Watts PoE budget on whole system. It is designed specifically to satisfy the growing demand of power consuming network PD (powered devices) such as network cameras, wireless LAN access points and other network devices.
    To fulfill the demand of PoE for network applications with Gigabit speed transmission, the ASTEL PoE Gigabit Ethernet Switch AST-POE-PSE-2F8E-XX is an ideal solution. Each 10/100/1000Mbps port features IEEE 802.3af Power over Ethernet (PoE) that combines up to 120 Watts power output and data per port over one Cat.5E / 6 Ethernet cable, with totally 120 Watts PoE budget on whole system. It is designed specifically to satisfy the growing demand of power consuming network PD (powered devices) such as network cameras, wireless LAN access points and other network devices.
    More Information
    Technical specification
    Main Features

    1) IEEE 802.3af power on up to 8 ports .
    2) Supply power to wireless access points and surveillance cameras over Cat-5 cabling.
    3) 8 x 10/100/1000 Mbps Ports with AutoUplink™.
    4) Supports PoE power up to 15.4W / 25.5W for each PoE port. * Note1
    5) Supports PoE power up to 120W for all PoE ports.
    6) Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X.
    7) 8K entry MAC address table of the PoE Switch with auto-learning and auto-aging.
    8) LED indicators for monitoring power, link, activity and speed.
    9) External power adapter supply.

    Applications

    1) HD monitor transmission and power supply.
    2) Wireless AP layout transmission and power supply.
    3) Network telephone transmission , intelligent house and home system.
    4) Intelligent transportation supervisory system (ITS).
    5) High-speed Way supervisory/Tele-Communication System.
    6) Security protection system.
    7) TV medical treatment.
    8) Long-distance Muti-media Schooling, Campus monitoring.
    9) Long-distance broadcast television transmission system.
    10) High-building Security Protection.
    11) Military Telecom projects.

    Dimensions
    Parameter AST-PoE-PSE-2F8E-PSE-AF AST-PoE-PSE-2F8E-PSE-AT
    Unit Dimensions 21.7 x 12 x 4.8cm 21.7 x 12 x 4.8cm
    Net Weight 0.54 kg/unit 0.54 kg/unit
    Package Dimensions 32.3 x 25.5 x 8.5cm 32.3 x 25.5 x 8.5cm
    Gross Weight 1.32 kg/unit 1.32 kg/unit

    Technical Specification
    Model AST-PoE-PSE-2F8E-PSE-AF AST-PoE-PSE-2F8E-PSE-AT
    Connector Type

    8 x 10/100/1000M copper
    cable RJ45 PoE ports+
    2 x UplinkCombo TP/SFP

    8 x 10/100/1000M copper
    cable RJ45 PoE ports+
    2 x UplinkCombo TP/SFP
    Bandwidth 18Gbps (non-blocking) 18Gbps (non-blocking)

    Address
    Database Size

    		 8K 8K
    Forwarding Mode Store-And-Forward Store-And-Forward
    Network Protocols

    IEEE 802.3i 10BASET;
    IEEE 802.3u 100BASETX;
    IEEE 802.3x Flow Control;
    IEEE 802.1af DTE Power via MDI;
    IEEE 802.3af;
    IEEE 802.3at.

    IEEE 802.3i 10BASET;
    IEEE 802.3u 100BASETX;
    IEEE 802.3x Flow Control;
    IEEE 802.1af DTE Power via MDI;
    IEEE 802.3af;
    IEEE 802.3at.
    LED Display

    Power (Green)
    PoE In-Use (Orange)
    10/100 LNK / ACT (Green)

    Power (Green)
    PoE In-Use (Orange)
    10/100 LNK / ACT (Green)
    Power Input

    AC100-240V
    50/60Hz;

    AC100-240V
    50/60Hz;
    Power Over Ethernet
    PoE Ports Port 1-8 support POE *Note 1 Port 1-8 support POE *Note 1
    PoE Port Power 15.4W for each POE 25.5W for each POE
    PoE Standard IEEE 802.3af IEEE IEEE 802.3af IEEE
    PoE Feature All ports support MDI/MDIX All ports support MDI/MDIX
    Environmental

    Operating
    Storage

    Operating Temperature: 0° ~ 55 ° C;
    Storage Temperature: -20 ° ~ 75 ° C;
    Operating Humidity: 10% ~ 95%,
    non-condensing

    Operating Temperature: 0° ~ 55 ° C;
    Storage Temperature: -20 ° ~ 75 ° C;
    Operating Humidity: 10% ~ 95%,
    non-condensing




    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted).
