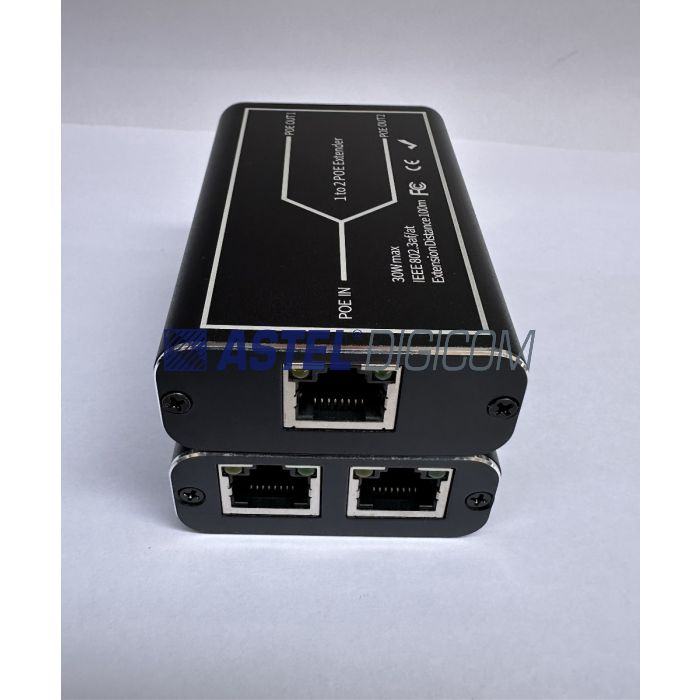

PoE EXTENDER 30W DUAL OUTPUT 1 IN 2 OUT
Product Description:
Astel Newest model of Dual Output POE Extenders features 10/100 data transmission rate and 30W of total power to two devices. Teh power input is 25.5W in total and power ouptut for single port is 15.4W (max). PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 120m while complying with IEEE PoE and Data standards. The PoE Extender supports 10/100Mbps data rates and delivers 802.3af power levels, up to 15.4W. The PoE Extender does not require local power and is powered via the PoE input.
Main features:
1) Extends Power over Ethernet Installations to 120 Meters.
2) Extends PoE installation range additional by 100m
3) Supports 10/100 Mbps data rates.
4) Provides 802.3af power levels when powered by 802.3af PD.
5) Provides 802.3af power levels when powered by 802.3at PSE.
6) Provides 802.3af power levels when powered by 802.3at PD.
7) Extenders can be cascaded to reach up to 400m.
| Technical specification | TECHNICAL SPECIFICATION:
