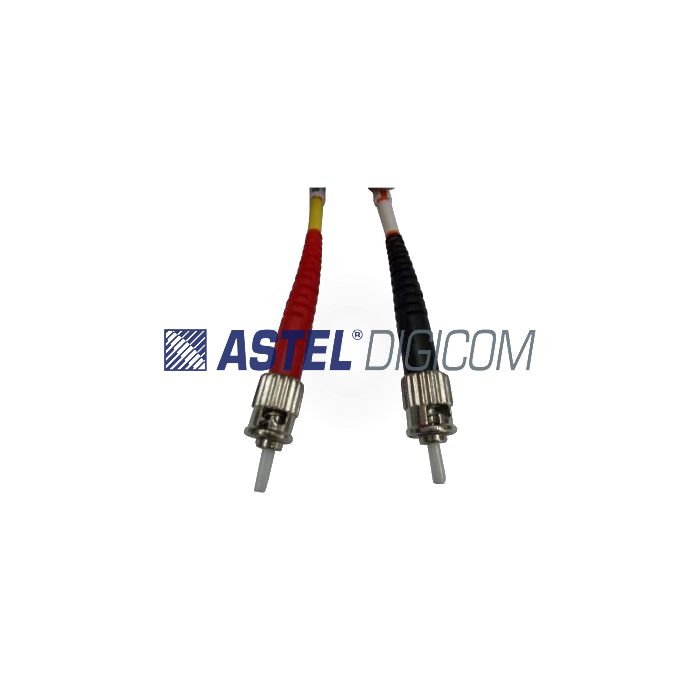

ASTEL Fiber patch Cords employ highest grade components, manufacturing processes and test methods that offer excellent performance for demanding telecommunications and data applications.
1) ASTEL Fiber patch Cords employ highest grade components, manufacturing processes and test methods that offer excellent performance for demanding telecommunications and data applications. 2) ASTEL FO Patch cord can be directly deployed in Fiber Networks and Data Centres. It does not require any additional protection tubes. 3) ASTEL FO patch cords are manufactured in ISO 9002 approved plant and tested for Forward loss, Return loss Connection integrity and 3D spectrum tester for performance and quality. 4) ASTEL FO patch cords use LSZH Jacket cables (Low Smoke Zero Halogen).
Any length from 0.3m to 250m can be provided on request
Mechanical Specifications:
Insert and pull frequency
>1000
Changeability
≤ 0.20
Tensile strength
< 0.1
Oscillating test
< 0.1
Electrical Specifications
Typical Insertion Loss (dB)
≤0.20
Max Insertion loss (dB)
≤0.30
Change in loss(dB) After 1000 mating
≤0.20
Return loss (dB)
≥55
≥35
ROC
10-25mm
Apex Offset
≤50 um
Fiber Height
-50 nm to +50 nm
Compliance Standard
Telecordia
Operating temperature
-40 ±75 centigrade
Storage temperature
-40 ±85 centigrade
Parameter
Unit
9/125SMF-OS2
62.5/125MMF-OM1
50/125MMF-OM2
50/125MMF-OM3
50/125MMF-OM4
Attenuation (See Note 1)
dB/Km
1310nm≤0.351550nm≤0.22
850 nm≤3.01300 nm≤0.8
850 nm≤3.01300 nm≤0.7
850 nm≤2.31300 nm≤0.7
850 nm≤2.31300 nm≤0.7
Dispersion
Ps/nm.km
1285~1330nm≤3.51550nm≤18.0
_
_
_
_
Fiber diameter
um
9/125 um
62.5/125 um
50/125 um
50/125 um
50/125 um
Effective Modal Bandwidth
EMB
850 nm≥200
850 nm≥750
850 nm≥2000
850 nm≥4700
Zero dispersion wavelength
Nm
1300~1324
_
_
_
_
ZTeercoh ndiicsapl erSspioecni fsilcoaptieons
Ps/nm.km
≤0.095
_
_
_
_
Fiber cutoff wavelength
um
≤1260
_
_
_
_
Mode field diameter
um
@@11535100nnmm--190..24±±00..48
_
_
_
_
Mode field concentricity
um
≤0.8
_
_
_
_
Cladding diameter
um
125±1.0
125±2.0
125±1.0
125±1.0
125±1.0
Cladding non-circularity
%
≤1.0
≤2.0
≤1.0
≤1.0
≤1.0
cCoonactienngt/riccliatdy deirnrgor
um
≤12.5
≤12.5
≤12.5
≤12.5
≤12.5
Coating diameter
um
245±10
245±10
245±10
245±10
245±10
Disclaimer 1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted)
