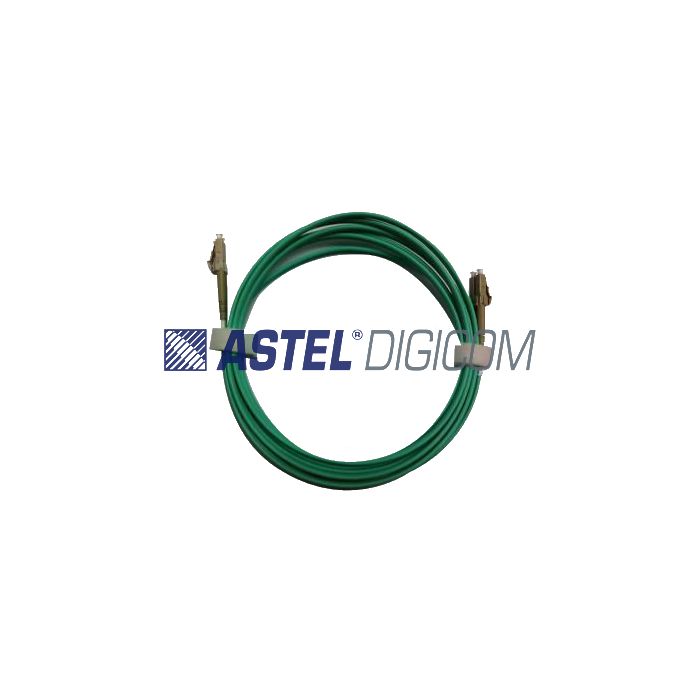

ASTEL LC Series Fiber Optic Patch Cord (FO-PC-LC-XX) is designed for optical connectivity in fiber networks, data centres and professional communication infrastructure. Featuring LC connector options and Low Smoke Zero Halogen (LSZH) jacketed cable, the series supports single-mode and multimode fiber installations. Available in LC/PC, LC/UPC and LC/APC configurations, the series supports OS2 (G.652D), G.657A2 and multimode OM1, OM2, OM3 and OM4 fiber types. The patch cords offer typical insertion loss of ≤0.20dB, maximum insertion loss of ≤0.30dB and return loss ratings according to connector polish type. Standard lengths range from 0.5m to 100m, with custom lengths from 0.3m to 250m available on request. ASTEL LC patch cords are manufactured and tested for optical loss, connection integrity and connector geometry to support professional fiber optic installations.
Any length from 0.3m to 250m can be provided on request
Mechanical Specifications:
Insert and pull frequency
>1000
Changeability
≤ 0.20
Tensile strength
< 0.1
Oscillating test
< 0.1
Electrical Specifications
Typical Insertion Loss (dB)
≤0.20
Max Insertion Loss (dB)
≤0.30
Change in loss(dB) After 1000 matings
≤0.20
Return loss (dB)
≥55
≥60
≥35
ROC
10- 25 mm
Apex Offset
≤50 um
Fiber Height
-50 nm to +50 nm
Compliance Standard
Telecordia
Operating temperature
-40 ±75 centigrade
Storage temperature
-40 ±85 centigrade
Parameter
Unit
9/125SMF-OS2
62.5/125MMF-OM1
50/125MMF-OM2
50/125MMF-OM3
50/125MMF-OM4
Attenuation (See Note 1)
dB/Km
1310nm≤0.351550nm≤0.22
850 nm≤3.01300 nm≤0.8
850 nm≤3.01300 nm≤0.7
850 nm≤2.31300 nm≤0.7
850 nm≤2.31300 nm≤0.7
Dispersion
Ps/nm.km
1285~1330nm≤3.51550nm≤18.0
_
_
_
_
Fiber diameter
um
9/125 um
62.5/125 um
50/125 um
50/125 um
50/125 um
Effective Modal Bandwidth
EMB
850 nm≥200
850 nm≥750
850 nm≥2000
850 nm≥4700
Zero dispersion wavelength
Nm
1300~1324
_
_
_
_
ZTeercoh ndiicsapl erSspioecni fsilcoaptieons
Ps/nm.km
≤0.095
_
_
_
_
Fiber cutoff wavelength
um
≤1260
_
_
_
_
Mode field diameter
um
@@11535100nnmm--190..24±±00..48
_
_
_
_
Mode field concentricity
um
≤0.8
_
_
_
_
Cladding diameter
um
125±1.0
125±2.0
125±1.0
125±1.0
125±1.0
Cladding non-circularity
%
≤1.0
≤2.0
≤1.0
≤1.0
≤1.0
cCoonactienngt/riccliatdy deirnrgor
um
≤12.5
≤12.5
≤12.5
≤12.5
≤12.5
Coating diameter
um
245±10
245±10
245±10
245±10
245±10
Note 1: Fiber attenuation for tight buffer cables is little higher than bare fibers.Note 2: For more detailed specification on Fiber Core Characteristics, please write to us at asteldigicom@eim.ae or visit fiber core manufacturer’s website.Disclaimer1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted)
