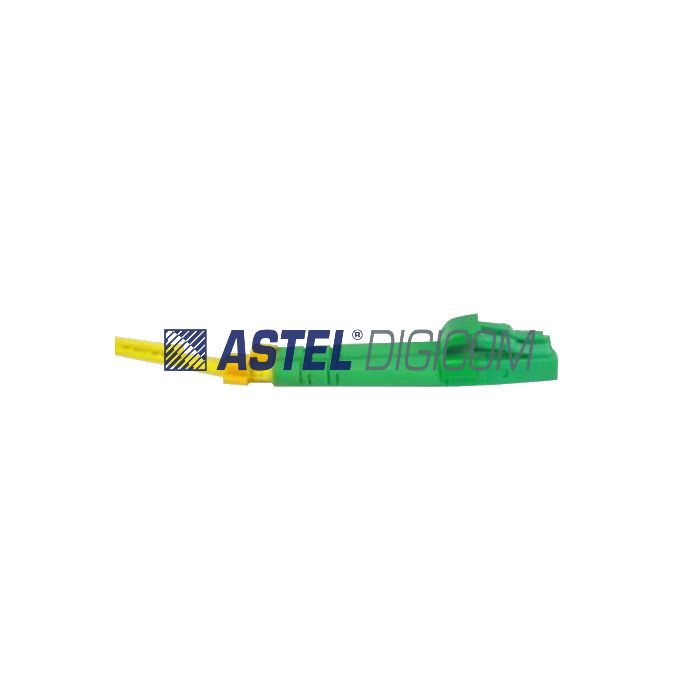

ASTEL E2000 Series Fiber Optic Patch Cord (FO-PC-E2K-XX) is designed for optical connectivity in fiber communication networks, data centres and professional communication infrastructure. Featuring E2000 connector options and Low Smoke Zero Halogen (LSZH) jacketed cable, the series supports single-mode and multimode fiber connections. Available in E2000 PC and E2000 APC configurations, the series supports single-mode OS2 (G.652D), G.657A2 and multimode OM1, OM2, OM3 and OM4 fiber types. It offers typical insertion loss of ≤0.20dB, maximum insertion loss of ≤0.30dB and return loss ratings of ≥55dB for single-mode PC/UPC, ≥60dB for single-mode APC and ≥35dB for multimode PC connections. Standard cable lengths range from 0.5m to 100m, with custom lengths from 0.3m to 250m available on request. ASTEL E2000 patch cords are tested for insertion loss, return loss, connection integrity and connector geometry to support professional optical network installations.
Any length from 0.3m to 250m can be provided on request
Mechanical Specifications:
Insert and pull frequency
>1000
Changeability
≤ 0.20
Tensile strength
< 0.1
Oscillating test
< 0.1
Electrical Specifications
Typical Insertion Loss (dB)
≤0.20
Max Insertion loss (dB)
≤0.30
Change in loss(dB)After 1000 mating
≤0.20
Return loss (dB)
≥55
≥60
≥35
ROC
10-25mm
Apex Offset
≤50 um
Fiber Height
-50 nm to +50 nm
Compliance Standard
Telecordia
Operating temperature
-40 ±75 centigrade
Storage temperature
-40 ±85 centigrade
Parameter
Unit
9/125SMF-OS2
62.5/125MMF-OM1
50/125MMF-OM2
50/125MMF-OM3
50/125MMF-OM4
Attenuation (See Note 1)
dB/Km
1310nm≤0.351550nm≤0.22
850 nm≤3.01300 nm≤0.8
850 nm≤3.01300 nm≤0.7
850 nm≤2.31300 nm≤0.7
850 nm≤2.31300 nm≤0.7
Dispersion
Ps/nm.km
1285~1330nm≤3.51550nm≤18.0
_
_
_
_
Fiber diameter
um
9/125 um
62.5/125 um
50/125 um
50/125 um
50/125 um
Effective Modal Bandwidth
EMB
850 nm≥200
850 nm≥750
850 nm≥2000
850 nm≥4700
Zero dispersion wavelength
Nm
1300~1324
_
_
_
_
ZTeercoh ndiicsapl erSspioecni fsilcoaptieons
Ps/nm.km
≤0.095
_
_
_
_
Fiber cutoff wavelength
um
≤1260
_
_
_
_
Mode field diameter
um
@@11535100nnmm--190..24±±00..48
_
_
_
_
Mode field concentricity
um
≤0.8
_
_
_
_
Cladding diameter
um
125±1.0
125±2.0
125±1.0
125±1.0
125±1.0
Cladding non-circularity
%
≤1.0
≤2.0
≤1.0
≤1.0
≤1.0
Coonactienngt/riccliatdy deirnrgor
um
≤12.5
≤12.5
≤12.5
≤12.5
≤12.5
Coating diameter
um
245±10
245±10
245±10
245±10
245±10
