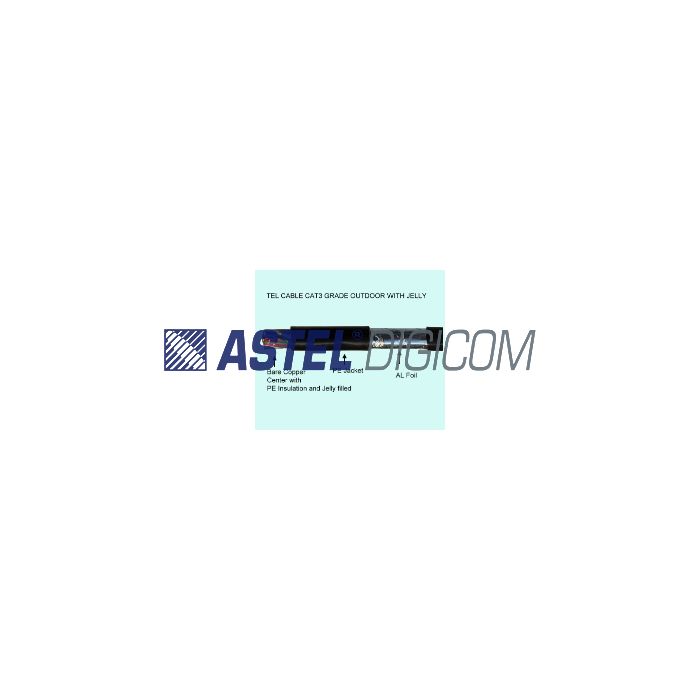

Outdoor Shielded CAT3 Jelly Filled 10P to 100P Telephone Cable

AED 0.00
In stock
Product Model
FTP-CAT3-BC-XX-PE
    • Astel Shielded Outdoor cable series consist of 10P to 100P CAT3 grade Cables with 100 ohms impedance. These types of cables are used for distribution and long distance networks and installed for secondary and primary networks. These cables are also used for Outdoor and backbone installation for interconnection of Voice and Data networks in between buildings, villa compounds, housing complex, industrial complexes. All cables fully conform to and provide a substantial margin above CAT3 EIA/TIA 568B2 requirements.
    Astel Shielded Outdoor cable series consist of 10P to 100P CAT3 grade Cables with 100 ohms’ impedance. These types of cables are used for distribution and long distance networks and installed for secondary and primary networks. These cables are also used for Outdoor and backbone installation for interconnection of Voice and Data networks in between buildings, villa compounds, housing complex, industrial complexes. All cables fully conform to and provide a substantial margin above CAT3 EIA/TIA 568B2 requirements



    More Information
    Technical specification
    Main Features

    1) 10Base T (IEEE 802.3).
    2) Token Ring 4 Mbps (IEEE 805.5).
    3) ISDN Basic and Primary access.
    4) ITU V21 and X.11. ISALAN.

    Model Product Unit AST-FTP-CAT3-BC-XX
    Construction:
    Conductor   Solid Bare Copper
    Conductor OD mm 0.50±0.005
    Conductor AWG   24 AWG
    Insulation   Skin Foam Skin (SFS) (Cellular Polyethylene covered
    with skin layer of high density Polyethylene compound)
    Insulation Dia mm 1.07±0.02
    Core Colours   Bl/Wh-Bl, Or/Wh-Or, Gr/Wh-Gr, Br/Wh-Br, Gr/Wh-Gr,
    Bl/Re-Bl, Or/Re-Or, Gr/Re-Gr, Br/Re-Br, Gr/Re-Gr
    Twisting   Two insulated wires twisted together. The twist length specially
    designed to minimize the capacitance unbalance and cross talk.
    Individual Pair Shielding   NO
    Cable Core   Twisted wires are assembled to form substantially cylindrical groups
    of ten pairs (called unit). Super units that assembled with suitable
    number of units, which are banded with durable coloured tapes and
    cables to complete the cable core.
    1st Shielding   AL-Foil
    1st Shielding Coverage   1P0V0C%
    2nd Shielding   NO
    2nd Shielding Coverage   5.0N0±A0.3
    Jelly Filled   Yes (Non Hygroscopic Moisture Ingress Protection Compound)
    Jacket Material   PE
    Jacket Thickness mm See Table 1
    Outer Dia mm See Table 1
    Rip Cord   Yes
    Drain Wire   BC, 0.5mm
    Color   Black
    Jacket Tensile Strength Mpa ≥10 Mpa (as per IEC 60332-1 requirements)
    Jacket Elongation % ≥300% (as per IEC 60332-1 requirements)
    Short Term Bending Radius XD   8 x OD
    Long Term Bending Radius XD   4 x OD
    Electrical and MechanicalParameters:
    Impedance Ohms 100 ± 15 (@ 1-16 MHz)
    Frequency Range MHz 1-16 MHz
    DC Resistance for Conductor Ohms/Km 93
    DC Resistance Unbalance % 5 %
    gCraopuancditance Unbalance to pf /1000m 3300 pf/KM @ 1 KHz
    Velocity of propagation % 67.7 %
    Delay Skew ns/100m ≤45ns
    Dielectric Strength (pair to pair) KV/min 1.5
    Dielectric Strength (pair to ground) KV/min 6.0
    Insulation Resistance MOhms.km 5000 Mega Ohms.KM Min at 500 VDC
    Operating Temp Range °C -20°C to +65°C

    FrequencyMHz InsLeorstison
    dB/100mMax    		 NEXTdB
    Min    		 PS NEXTdB
    Min    		 SRLdB
    Min    		 Prop Delayns/100m
    Max    		 PSNEXT
    (≥dB)    		 ELFEXT
    (≥dB)    		 PSELFEXT
    (≥dB)
    0.772 2.2 41.0 43.0 12.0 575
    1.00 2.6 41.0 41.0 12.0 570 41.3 39.0 39.0
    4.00 5.6 32.3 32.3 12.0 552 32.3 26.9 26.9
    20.9 8.5 27.8 27.8 12.0 546 27.8 20.9 20.9
    10.0 9.7 26.3 26.3 12.0 545 26.3 19.0 19.0
    16.00 13.1 23.3 23.3 10.0 543 23.3 14.9 14.9

    Table 1
    HCS P/N Description Jacket( thickness) OD (mm) Weight (Kg/KM) Packaging
    FTP-CAT3-BC-10PE 1C0AxT23x 2B4C F PTEP 1.0±0.2mm 9.50±0.1mm   305m
    FTP-CAT3-BC-20PE 2C0AxT2x3 2B4 CF TPPE 1.0±0.2mm 11.5±0.2mm   305m
    FTP-CAT3-BC-50PE 5C0AxT2x3 2B4 CF TPPE 1.2±0.2mm 20.5±0.4   305m
    FTP-CAT3-BC-100PE 1C00AxT23x 2B4C FPTEP 1.2±0.2mm 24.0±0.4   305m
