ASTEL Indoor Outdoor Fiber Optic Cable

AED 0.00
In stock
Product Model
GYXFTY

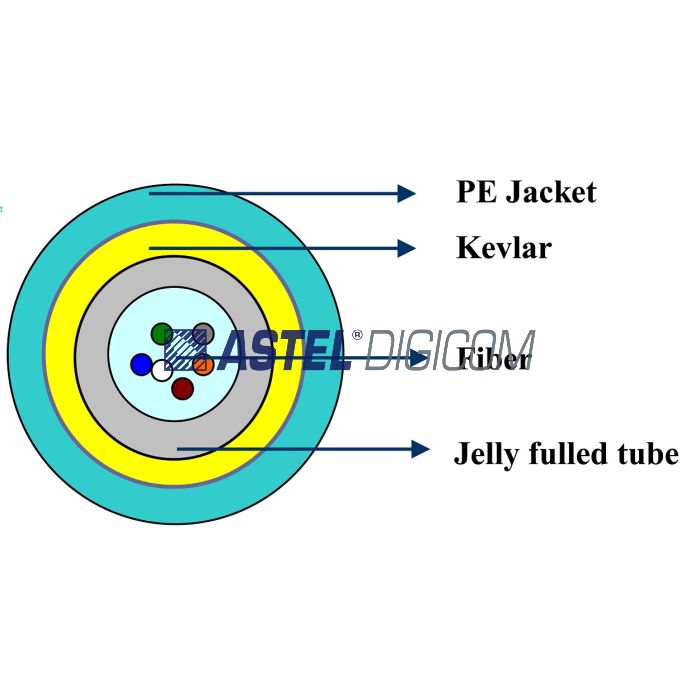

ASTEL Indoor Outdoor Fiber Optic Cable is designed for reliable optical communication in both indoor and outdoor environments. Featuring a central loose tube construction, jelly-filled protection, glass yarn reinforcement, and an LSZH/HFFR outer jacket, it delivers excellent durability and signal performance. The cable is suitable for telecom networks, data communication systems, enterprise infrastructure, and fiber backbone installations where dependable connectivity is required.

Key Features:

1) Suitable for indoor and outdoor fiber optic installations

2) Central loose tube fiber optic cable design

3) Jelly-filled tube for enhanced fiber protection

4) Glass yarn reinforcement for added mechanical strength

5) LSZH/HFFR outer jacket construction

6) Low smoke and halogen-free cable design

7) Rip cord for easy stripping and installation

8) Reliable optical signal transmission

9) Suitable for telecom and data communication networks

10) Excellent environmental and mechanical protection

11) Flexible installation for building and outdoor pathways

12) Designed for long-term network reliability

13) Ideal for enterprise, ISP, and structured cabling applications

14) Durable construction for demanding deployment environments

More Information
Technical specification
Parameter
Unit
9/125SMF-OS2
62.5/125MMF-OM1
50/125MMF-OM2
50/125MMF-OM3
50/125MMF-OM4
Attenuation (See Note 1)
dB/Km
1310nm≤0.351550nm≤0.22
850 nm≤3.01300 nm≤0.8
850 nm≤3.01300 nm≤0.7
850 nm≤2.31300 nm≤0.7
850 nm≤2.31300 nm≤0.7
Dispersion
Ps/nm.km
1285~1330nm≤3.51550nm≤18.0
_
_
_
_
Fiber diameter
um
9/125 um
62.5/125 um
50/125 um
50/125 um
50/125 um
Effective Modal Bandwidth
EMB

850 nm≥200
850 nm≥750
850 nm≥2000
850 nm≥4700
Zero dispersion wavelength
Nm
1300~1324
_
_
_
_
ZTeercoh ndiicsapl erSspioecni fsilcoaptieons
Ps/nm.km
≤0.095
_
_
_
_
Fiber cutoff wavelength
um
≤1260
_
_
_
_
Mode field diameter
um
@@11535100nnmm--190..24±±00..48
_
_
_
_
Mode field concentricity
um
≤0.8
_
_
_
_
Cladding diameter
um
125±1.0
125±2.0
125±1.0
125±1.0
125±1.0
Cladding non-circularity
%
≤1.0
≤2.0
≤1.0
≤1.0
≤1.0
cCoonactienngt/riccliatdy deirnrgor
um
≤12.5
≤12.5
≤12.5
≤12.5
≤12.5
Coating diameter
um
245±10
245±10
245±10
245±10
245±10

Note 1: Fiber attenuation for tight buffer cables is little higher than bare fibers.
Note 2: For more detailed specification on Fiber Core Characteristics, please write to us at asteldigicom@eim.ae or visit fiber core manufacturer’s website.

Parameter Specification
Temperature range Storage °C -40°C-- +70°C
Nominal Weight   kg/km 35.0
Min. Bending Radius (mm) Install mm 20H
Min. Bending Radius (mm) Static mm 10H
Max.Tension Strength Short-term N 600

Disclaimer
1. Astel Digicom Electronics reserves the right to change or modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size from what appears in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
