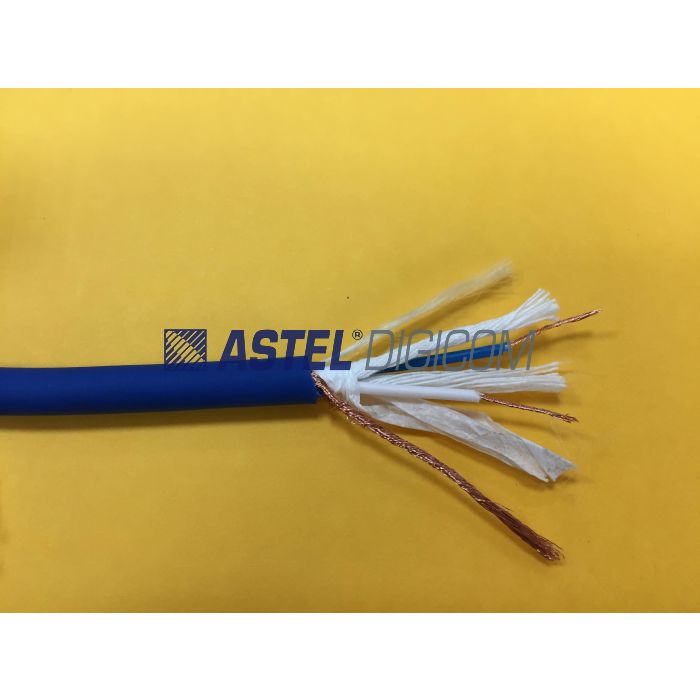

ASTEL Sound Stream OFC Spiral Shielded Microphone Cable
Manufactured with stranded Oxygen Free Copper (OFC) conductors, PE insulation and spiral copper shielding, the cable supports audio signal transmission while helping reduce electromagnetic interference. Its flexible PVC outer jacket is available in blue and black, depending on the model.
Available in 24 AWG (0.22mm²) and 22 AWG (0.34mm²) variants, the cable features a 6.0mm outer diameter and comes in standard 100-yard (91.2m) coils.
Key Features
-
Product series: MCS-2C-XX
-
Available models: MCS-2C-24AWG and MCS-2C-22AWG
-
Two stranded Oxygen Free Copper (OFC) conductors
-
24 AWG conductor: 14 × 0.14mm, 0.22mm²
-
22 AWG conductor: 30 × 0.12mm, 0.34mm²
-
PE insulation
-
Insulation thickness: 1.50mm (as listed)
-
Spiral copper shielding: 62 × 0.11mm
-
Flexible PVC outer jacket
-
Jacket colour: Blue (24 AWG), Black (22 AWG)
-
Overall jacket diameter: 6.0mm
-
Ripcord included
-
Dielectric strength: 500V/5m (as specified)
-
Nominal conductor DC resistance: 81.46Ω/km (24 AWG), 52.35Ω/km (22 AWG)
-
Nominal shielding resistance: 34.75Ω/km
-
Conductor-to-conductor capacitance: 49.73pF/m (24 AWG), 67.37pF/m (22 AWG)
-
Jacket tensile strength: greater than 8 MPa
-
Jacket elongation: greater than 200%
-
Standard coil length: 100 yards (91.2m)
-
Sequential metre markings
-
Suitable for paging and conference systems
-
Suitable for stage performances and school auditoriums
-
Suitable for karaoke audio installations
| Technical specification |
* DC resistance changes at the rate of 0.393% / Deg C. * Sequential meter marking on all cables. * Higher core sizes cables also available. * All measurements adjusted for ambient Temp of 20 deg C |
|---|
