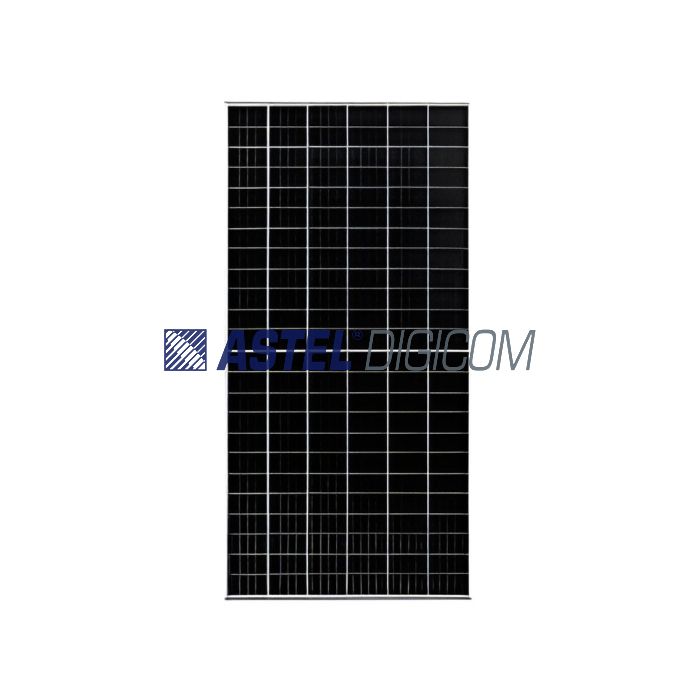

Longi Solar Panel HiMo7 Bifacial 620W

AED 375.00

In stock

Product Model

LR866HGD620M

Main Features

1) High-performance PV modules for utility power plants.
2) Advanced HPDC cell technology delivers superior module
efficiency and power.

3) High bifaciality and excellent power temperature coefficient
achieves high energy yield.

4)LONGi lifecycle quality ensures long-term performance.

Details

Main Features

1) High-performance PV modules for utility power plants.
2) Advanced HPDC cell technology delivers superior module
efficiency and power.

3) High bifaciality and excellent power temperature coefficient
achieves high energy yield.

4)LONGi lifecycle quality ensures long-term performance.

Technical specification

More Information

Technical specification

Mechanical Parameters
Cell Orientation		132 (6×22)
Junction Box		IP68, three diodes
Output Cable		4mm2, +400, -200mm/±1400mm length can be customized
Glass		Dual glass, 2.0+2.0mm heat strengthened glass
Frame		Anodized aluminum alloy frame
Weight		33.5kg
Dimension		2382×1134×30mm
Packaging		36pcs per pallet / 144pcs per 20’GP / 720pcs or 576pcs (only for USA) per 40’HC
Electrical Characteristics		STC : AM1.5 1000W/m2 25℃			NOCT : AM1.5 800W/m2 20℃ 1.0 m/s
Module Type		LR8-66HGD-615M		LR8-66HGD-620M		LR8-66HGD-625M
Testing Condition		STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)		615	468.1	620	471.9	625	475.8
Open Circuit Voltage (Voc/V)		48.58	46.17	48.78	46.36	48.98	46.55
Short Circuit Current (Isc/A)		16.00	12.85	16.05	12.89	16.10	12.93
Voltage at Maximum Power (Vmp/V)		40.71	38.69	40.91	38.88	41.11	39.07
Current at Maximum Power (Imp/A)		15.11	12.10	15.16	12.14	15.21	12.18
Module Efficiency(%)		22.8		23.0		23.1
Electrical characteristics with different rear side power gain (reference to 610W front)
Pmax	Voc/V	Isc /A	Vmp/V	Imp /A	Pmax gain
641	48.38	16.75	40.51	15.81	5%
671	48.38	17.55	40.51	16.57	10%
703	48.48	18.34	40.61	17.32	15%
734	48.48	19.14	40.61	18.07	20%
764	48.48	19.94	40.61	18.82	25%
Operating Parameters				Mechanical Loading
Operational Temperature		-40℃ ~ +85℃		Front Side Maximum Static Loading		5400Pa
Power Output Tolerance		0 ~ 3%		Rear Side Maximum Static Loading		2400Pa
Maximum System Voltage		DC1500V (IEC/UL)		Hailstone Test		25mm Hailstone at the speed of 23m/s
Maximum Series Fuse Rating		35A
Nominal Operating Cell Temperature		45±2℃		Temperature Ratings (STC)
Protection Class		Class II		Temperature Coefficient of Isc		+0.045%/℃
Bifaciality		80±5%		Temperature Coefficient of Voc		-0.230%/℃
Fire Rating		UL type 29 IEC Class C		Temperature Coefficient of Pmax		-0.280%/℃

Disclaimer
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)

5. Longi is registered trade mark of Longi, China. Longi registered office No 8369, Shengyuan Road, Xi'an Economic and Technological Development Zone, Xi'an, China

6. Specifications included in this datasheet are subject to change without notice . Longi reserves the right of final interpretation.
