| Technical specification |
Main Features:
1) IP Gateway+IPTV server in one device.
2) Manage gateway and IPTV Server separately.
3) HTTP, UDP, RTP, RTSP, HLS to HTTP, UDP, HLS, RTMP out
4) IPTV Functions: Live channel, VOD, Hotel Intro, Dining, Hotel Service, Scenery Intro, APPS and so on.
5) Adding Scrolling caption, welcome words, pictures, advertisement, video, music in main interface.
6) TS File uploading through Web management.7) IP Anti-jitter function.8) Download IPTV APK file directly from this device.9) Support Program playing with APK download android STB and T, Maximum 150 terminals. 10) Control via web based NMS management through DATA Port.
| Technical Specifications |

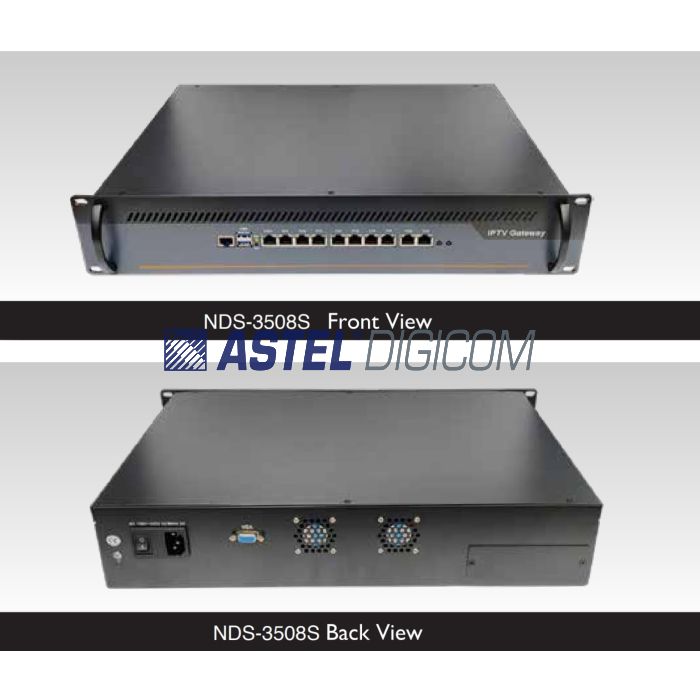

AST-NDS-3508S/3508I |
| IP Input |
Data CH 1-7 (1000M) ports, IP Input over HTTP, UDP (SPTS), RTP (SPTS), RTSP (Over UDP, Payload, MPEG TS) and HLS
TS Files uploading through Web Management
|
| IP Output |
First Data Port (1000M), IP Out over HTTP (Unicast), UDP (SPTS, Multicast) HLS and RTMP (Program should be H/264 and AAC Encoding)
Data CH 1-7 (1000M) ports, IP Out over HTTP/HLS/RTMP (Unicast)
|
| System |
Model Model 3508S Model 3508I
Memory 4G 8G
CPU 1037 I7
SSD 120G 120G
HDD 4T 4T
|
| IPTV System Parameters |
Channel Switching time with STB: HTTP (1-3sec), HLS (0.4-0.7s)
Play Programs with APK downloaded android STB nd TV, Max 150 terminals
About 80HD/SD programs (bitrate-2 Mbps), when HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail and suggest maximum 80% CPU utilization.
|
| IPTV System functions |
IPTV System function:
Support Live channel,
Support Hotel Introduction
Dining, Hotel service, APPS, Sight Seeing introduction etc
|
| IPTV System Main interface |
Support Scrolling Caption, Welcome words, pictures, advertisement, video, Music |
| Output |
16 MPTS IP Output (for tuner/ASI Passthrough over UDP and RTP/RTSP protocol through GE1 an GE2, Unicast and Multicast |
| Output mode |
Support unicast and multicast |
| MAC |
IEEE 802.3 1000 Base T |
| Network protocol |
Unicast: UDP (RFC 768)
Multicast: IGMPv2 (RFC 2236) |
| Management port |
|
| Interface type |
Web based NMS Management thru DATA Port |
| Power supply |
|
| Input voltage |
220V ∼ 240V AC, |
| Input frequency |
50/60Hz |
| Power |
<20W |
| Environment |
|
| Work temperature |
0°C~45°C |
| Storage temperature |
-20°C~80°C |
| Work humidity |
10%~90% |
| Physical characteristics |
|
| Size(W x H x D) |
482mm x 328mm x 88mm |
| Weight |
<4.50Kg |
Disclaimer
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted) |
