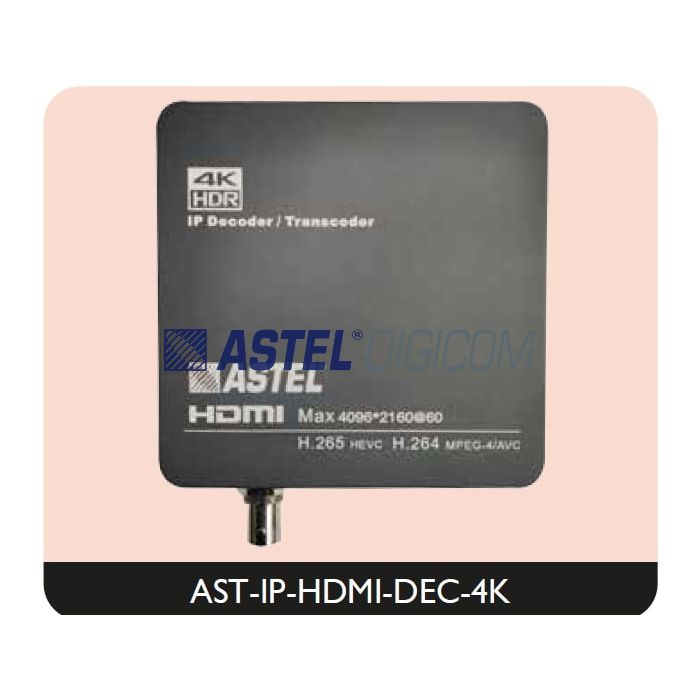

IP to HDMI Decoder 4K H264/H265

AED 900.00

In stock

Product Model

AST-IP-HDMI-DEC-4K-H264-H265

AST IP to HDMI Video Decoder H.264/H.265 is a IP Video decoder and Transcoder. It can receive the SRT / HTTP(S) / HLS / FLV / RTSP / RTMP(S)/ UDP/ RTP (Unicast and Multicast) stream from our HDMI/VGA/SDI/CVBS Encoder or media streaming server. It cand decompress the H.264/H.265 video and audio and then provide HDMI/CVBS/and L/R stereo audio. It can also complete the IP Transcoding from one protocol to another protocol. Its high intergration and cost effective design make this devide widely used in variety of field such as advertisement display, CCTV, Long distance video transfer, IPTV etc.

Details

AST IP to HDMI Video Decoder H.264/H.265 is a IP Video decoder and Transcoder. It can receive the SRT / HTTP(S) / HLS / FLV / RTSP / RTMP(S)/ UDP/ RTP (Unicast and Multicast) stream from our HDMI/VGA/SDI/CVBS Encoder or media streaming server. It can decompress the H.264/H.265 video and audio and then provide HDMI/CVBS/and L/R stereo audio. It can also complete the IP Transcoding from one protocol to another protocol. Its high intergration and cost effective design make this devide widely used in variety of field such as advertisement display, CCTV, Long distance video transfer, IPTV etc.

Technical specification

More Information

Technical specification

Main Features:

1) Adopts Professional Encoding Chip, embedded Hi Linux system, high stability and efficiency.
2) User friendly web control UI, default IP is 192.168.169.
3) Support HTTP / HLS / FLV / FTSP / RTMP (S)/ UDP/ FTP (Unicast and Multicast) stream protocols and ONVIF.
4) Support remote control via router port forward.
5) Mainstream suppot present resolution 4096x2160@60fps, 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540 720x480, 720x404, 704x576, 640x480, 640x360, 480x270 etc.
6) Support firmware upgrade.
7) English Control panel.

8) Support H.265/H.264 baseline/ main profile/ high profile / MJPEG2 etc decoding.

Main Applications:

1) Long Distance video transfer.
2) Internet TV (IPTV) HD Capture system.
3) Internet Video Conference front end capture.

4) Digital Signage Streaming server

5) IPTV

6) Teaching / Campus Broadcast

7) Hotel IPTV System

8) Network monitoring system platform front end capture

Technical Specifications	AST-IP-HDMI-DEC-4K
Resolution	HDMI Input, Max support 4096x2160, 3840x2160@60fps, 1080P/ 720P
IP Stream Input IP TS	RTSP/ HTTP/HLS/FLV/RTMP(S)/UDP/RTP/SRT
Private Protocol	HTTP PTE
Decoding	Video Decoder type H.265/H.264/ MJPEG/MPEG2, MPEG4/AVS/AVS2
Input IP	SPTS / MPTS
Video Decoding
Video format	H265/H264,MJPEG/MPEG2/MPEG4/AVS/AVS2
Video Resolution	Max support 4096x2160P60, 4096x2160P50 4096x2160P30, 4096x2160P25 3840x2160P60, 3840x2160P50 3840x2160P30, 3840x2160P25 1440P60, 1920x1200P60, 1080P60, 1080I60, 1080P50, 1080I50, 1080P30, 1080P25, 720P60, 720P50, 576P50, 480P60
CVBS	PAL/NTSC
Color	Brightness, Contrast, Hue, Saturation
Transcode	Video Encode format H.265/HEVC Main profile H.264/AVC/High/Main/Baseline Profile

Audio Decoder
Bit Rate Control	VBR / CBR
Streaming Protocols	HTTP / HLS / FLV / RTSP / RTMP (s) / UDP /RTP / ONVIF / Unicast / Multicast
Audio Encoding	AAC/AAC+/AAC++/MP3/MP2/AC3/711
Audio Sampling Rate	44.1 KHz / 48 KHz
Bitrate	32~100000 bps
System
Web Control Login	192.168.1.168
Language	English / Chinese
Firmware update	Ethernet Port for software update
Power supply
Input voltage	100~240V AC, 50 / 60 Hz, DC Output 12V/1A
Environment
Working temperature	10°C~70°C
Storage temperature	10°C~85°C
Work humidity	5%~90%, Non Condensing
Physical characteristics
Size(W x H x D)	105mm x 105mm x 23mm
Weight	<0.3Kg

Product Attachment
